  • Stock: In Stock
  • Model: CP-9020103-NA
1540 views
1,850.00 EGP
Ex Tax: 1,850.00 EGP
Brand
CORSAIR
Model
CX650M (CP-9020103-NA)
Series
CX series

Details

Type
ATX12V / EPS12V
Maximum Power
650W
Fans
1 x 120mm Sleeve Bearing Fan
PFC
Active
Main Connector
20+4Pin
+12V Rails
Single
PCI-Express Connector
2 x 6+2-Pin
SATA Power Connector
6
SLI
SLI Ready
Haswell Support
Yes
CrossFire
CrossFire Ready
Modular
Semi-Modular
Efficiency
Up to 85%
Energy-Efficient
80 PLUS BRONZE Certified
Over Voltage Protection
Yes
Input Voltage
100 - 240 V
Input Frequency Range
47 - 63 Hz
Input Current
10 - 5A
Output
+3.3V @ 25A, +5V @ 25A, +12V @ 54A, -12V @ 0.8A, +5VSB @ 3A
MTBF
>100,000 Hours
Approvals
ErP Lot 6 Compliant
Dimensions
3.39" x 5.51" x 5.91"
Weight
7.21 lbs.

Features

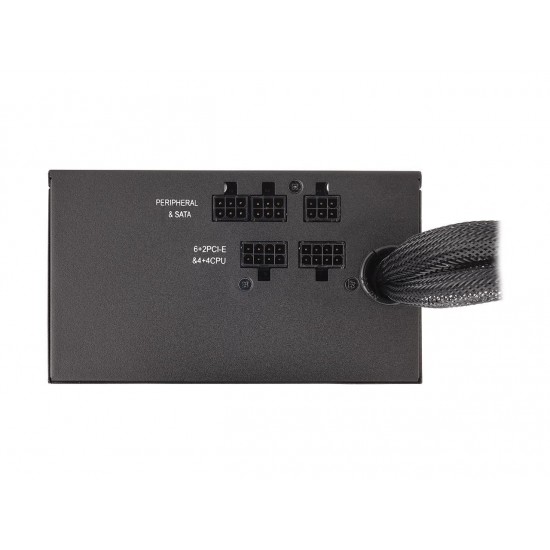

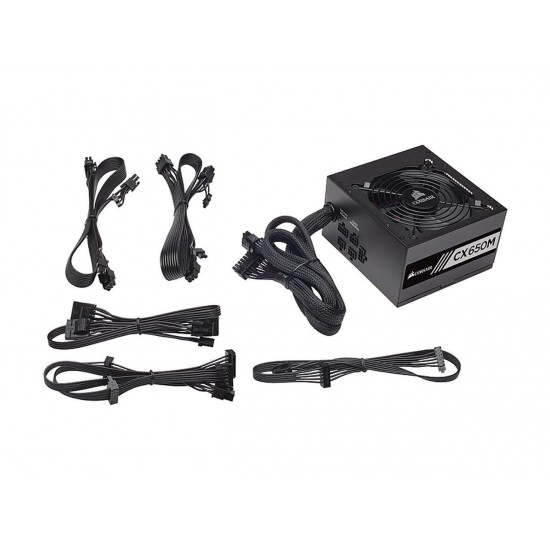

Connectors

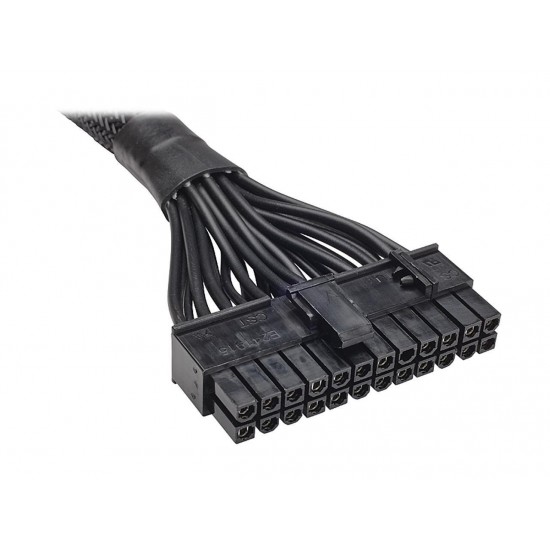

1 x 20+4-Pin Motherboard cable
1 x 4+4-Pin, works as either 4 or 8-Pin CPU power Cable
2 x 6+2-Pin PCIe
4 x 4-Pin peripheral
6 x SATA cable
1 x Floppy power
Features
Up to 85% energy efficiency means less heat generation and lower energy bills.

0.99 Active Power Factor Correction provides clean and reliable power.

Universal AC input from 90 - 264V.

A dedicated single +12V rail offers maximum compatibility with the latest components.

Over-voltage and over-power protection, under-voltage protection, and short circuit protection provide maximum safety to your critical system components.

Extra long fully-sleeved cables support full tower chassis.

ErP Lot 6 Compliant.
