Cooler Master Elite v3 600 watts ATX Power Supply, Quiet 120mm Fan, PCI-E support, 3 Year Warranty, Black
- 1,100EGP
- Availability:In Stock - 100 pcs
- Brand: coolermaster
- Product Code: MPW-6001-ACAAN1-US
| Brand | COOLER MASTER |
|---|---|
| Model | MPW-6001-ACAAN1-US |
| Series | Elite V3 600W |
Details
| Type | Intel ATX 12V V2.31 |
|---|---|
| Maximum Power | 600W |
| Fans | 120mm Sleeve Fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 2 x 6+2-Pin |
| SATA Power Connector | 6 |
| Power Good Signal | 100-500ms |
| Hold-up Time | >10ms at 100% Load |
| Efficiency | 75% @ Typical Load |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 10 - 5A |

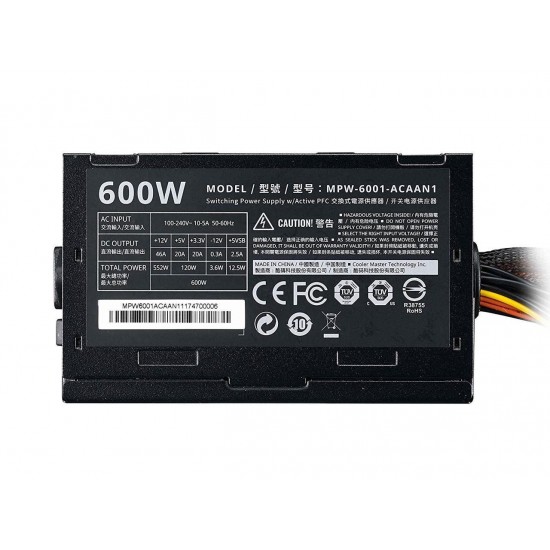

| Output | +3.3V@20A, +5V@20A, +12V@46A, -12V@0.3A, +5VSB@2.5A |
| MTBF | >100,000 Hours |
| Approvals | TUV, cTUVus, CE, FCC, BSMI |
| Dimensions | 3.39" x 5.91" x 5.51" |
Features
| Connectors | 1 x M/B 20+4 Pin 1 x CPU 12V 4+4 Pin 6 x SATA 3 x Peripheral 4 Pin 1 x FDD Cable 4 Pin 2 x PCI-e 6+2 Pin |
|---|
