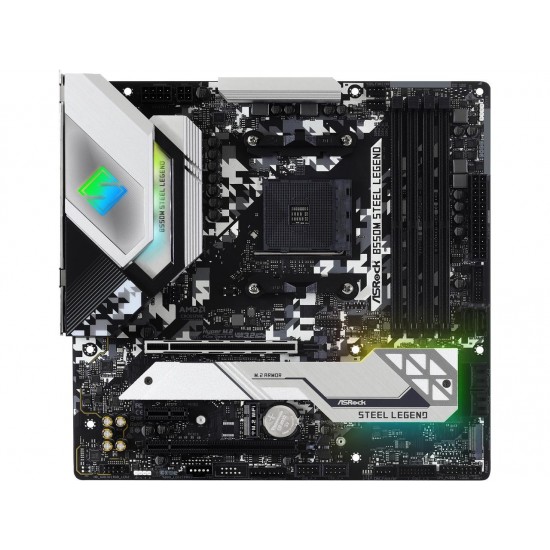

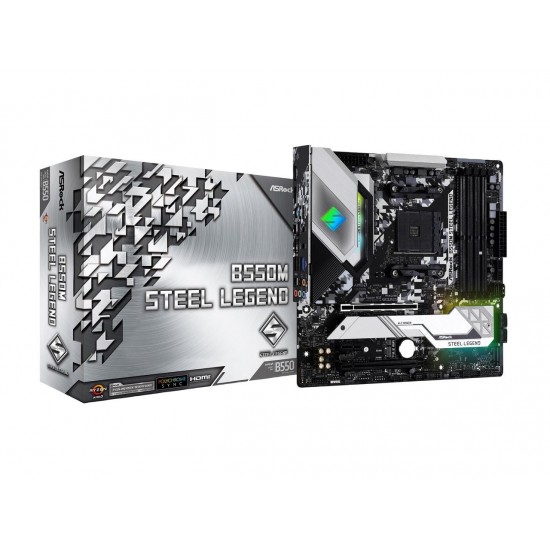

ASRock B550M STEEL LEGEND AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard

ASRock B550M STEEL LEGEND AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
ASRock B550M STEEL LEGEND AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
ASRock B550M STEEL LEGEND AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
ASRock B550M STEEL LEGEND AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
ASRock B550M STEEL LEGEND AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
ASRock B550M STEEL LEGEND AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
ASRock B550M STEEL LEGEND AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
ASRock B550M STEEL LEGEND AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
ASRock B550M STEEL LEGEND AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
ASRock B550M STEEL LEGEND AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
ASRock B550M STEEL LEGEND AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
  • Stock: In Stock
  • Model: B550M STEEL LEGEND
12810 views
2,700.00 EGP
Ex Tax: 2,700.00 EGP
Model
BrandASRock
ModelB550M STEEL LEGEND
Supported CPU
CPU Socket Type AM4
CPU TypeSupports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors (3000 and 4000 Series Processors)*
* Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G.
* BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASRock website for CPU support list.
Chipsets
Chipset AMD B550
Memory
Number of Memory Slots4×288pin
Memory StandardAMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC)/ 4666(OC)/ 4600(OC)/ 4533(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*

* For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs.
Maximum Memory Supported128GB
** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported Dual Channel
Expansion Slots
PCI Express 4.0 x16AMD Ryzen series CPUs (Matisse)
- 1 x PCI Express x16 Slots (PCIE1: Gen4x16 mode)*
AMD Ryzen series APUs (Renoir)
- 1 x PCI Express x16 Slots (PCIE1: Gen3x16 mode)*
* Supports NVMe SSD as boot disks
PCI Express 3.0 x16 AMD Ryzen series CPUs (Matisse)
- 1 x PCI Express x16 Slots (PCIE3: Gen3 x4 mode)*
AMD Ryzen series APUs (Renoir)
- 1 x PCI Express x16 Slots (PCIE3: Gen3 x4 mode)*
* Supports NVMe SSD as boot disks
PCI Express x11 x PCI Express 3.0 x1 Slot
Other Slots15µ Gold Contact in VGA PCIe Slot (PCIE1)
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Storage Devices
SATA 6Gb/s 6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*
* M2_2 and SATA3_5_6 share lanes. If either one of them is in use, the other one will be disabled.
M.21 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64Gb/s) (with Matisse) or Gen3x4 (32Gb/s) (with Renoir)**
1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x2 (16Gb/s)**

** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
SATA RAID0/1/10
Onboard Video
Onboard Video Chipset Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
DirectX 12, Pixel Shader 5.0
Shared memory default 2GB. Max Shared memory supports up to 16GB.**
Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
Supports HDR (High Dynamic Range) with HDMI 2.1
Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
Supports Microsoft PlayReady

* Actual support may vary by CPU.
** The Max shared memory 16GB requires 32GB system memory installed.
Onboard Audio
Audio Chipset Realtek ALC1200
Audio Channels 7.1 Channels
Onboard LAN
LAN ChipsetDragon RTL8125BG
Max LAN Speed10/100/1000/2500Mbps

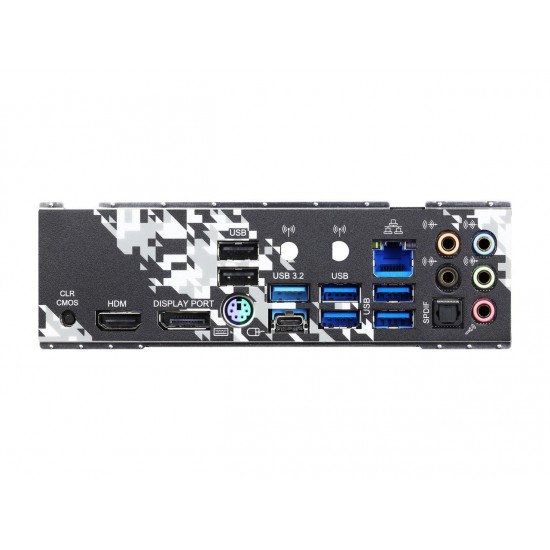

Rear Panel Ports
Back I/O Ports2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x Clear CMOS Button
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Internal I/O Connectors
Onboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors1 x SPI TPM Header
1 x Power LED and Speaker Header
2 x RGB LED Headers*
2 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
1 x Front Panel Audio Connector

* Support in total up to 12V/3A, 36W LED Strip.
** Support in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
**** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.
Physical Spec
Form FactorMicro ATX
LED LightingRGB

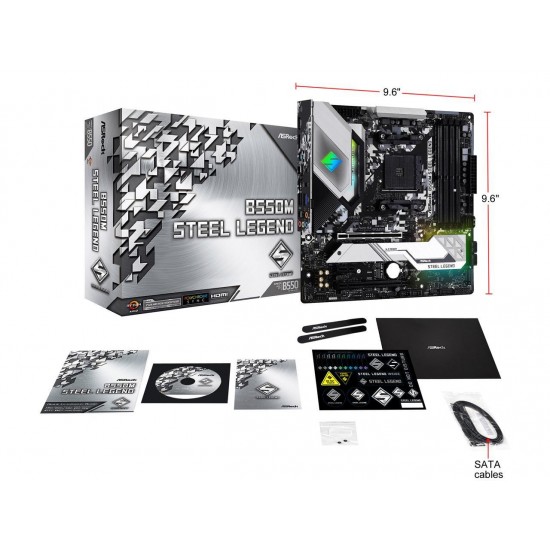

Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin ATX Power Connector (Hi-Density Power Connector)
1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
1 x 4-pin 12V Power Connector (Hi-Density Power Connector)
