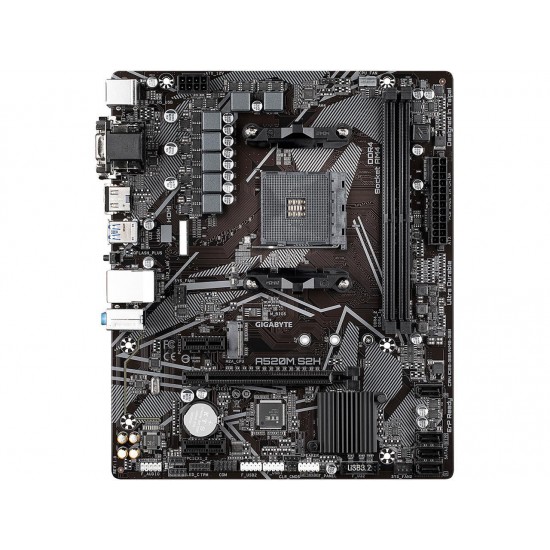

GIGABYTE A520M S2H mATX AM4 4+3 Phases Digital PWM, GIGABYTE Gaming GbE LAN, NVMe PCIe 3.0 x4 M.2, 3 Display Interfaces, Q-Flash Plus, RGB Fusion 2.0, Motherboard

GIGABYTE A520M S2H mATX AM4 4+3 Phases Digital PWM, GIGABYTE Gaming GbE LAN, NVMe PCIe 3.0 x4 M.2, 3 Display Interfaces, Q-Flash Plus, RGB Fusion 2.0, Motherboard
  • Stock: In Stock
  • Model: A520M S2H
12691 views
1,450.00 EGP
Ex Tax: 1,450.00 EGP
Model
BrandGIGABYTE
ModelA520M S2H
Supported CPU
CPU Socket Type AM4
CPU TypeAMD Socket AM4, support for: AMD Ryzen 5000 Series / 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
* Support for Ryzen 5000 Series with BIOS UPDATE. Refer to GIGABYTE website for CPU support list.
Chipsets
Chipset AMD A520
Memory
Number of Memory Slots2×288pin
Memory Standard3rd Gen AMD Ryzen Processors:
Support for DDR4 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
3rd Gen AMD Ryzen with Radeon Graphics processors:
Support for DDR4 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
Maximum Memory Supported64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
PCI Express x12 x PCI Express x1 slots, supporting PCIe 3.0
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
SATA RAID0/1/10
Onboard Video
Onboard Video Chipset Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:

1 x D-Sub port, supporting a maximum resolution of [email protected] Hz
1 x DVI-D port, supporting a maximum resolution of [email protected] Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of [email protected] Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Support for up to 3 displays at the same time
Maximum shared memory of 16GB
Onboard Audio
Audio Chipset Realtek ALC887
Audio Channels 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
Onboard LAN
LAN ChipsetRealtek GbE LAN chip
Max LAN Speed10/100/1000Mbps
Rear Panel Ports
Back I/O Ports1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x Q-Flash Plus button
3 x audio jacks
Internal I/O Connectors
Onboard USB1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x speaker header
1 x chassis intrusion header
1 x Clear CMOS jumper
Physical Spec
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)9.6" x 8.1"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features
FeaturesI/O Controller:
iTE I/O Controller Chip

H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

BIOS:
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Bundled Software:
Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility

Operating System:
Support for Windows 10 64-bit
