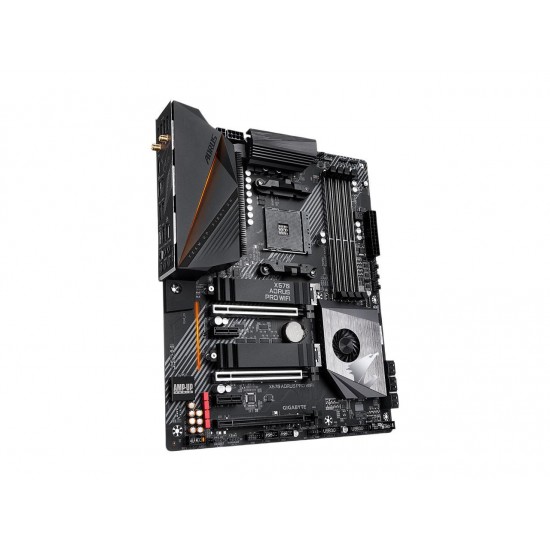

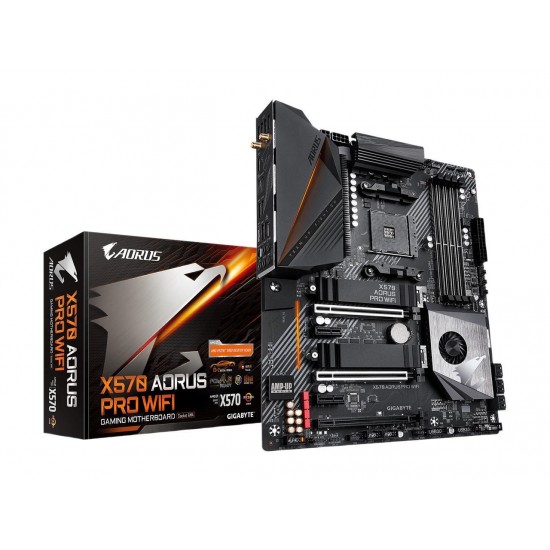

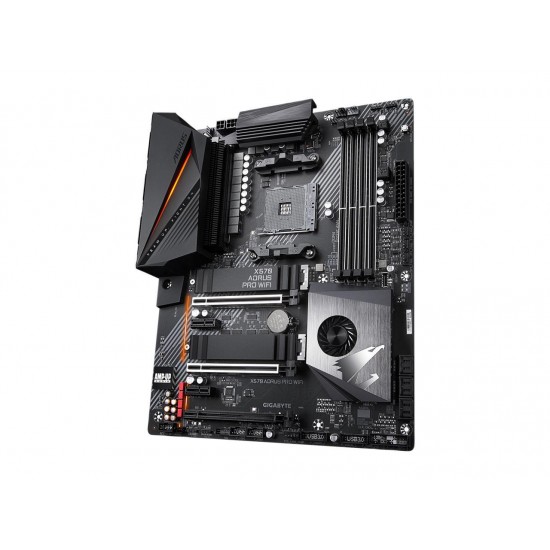

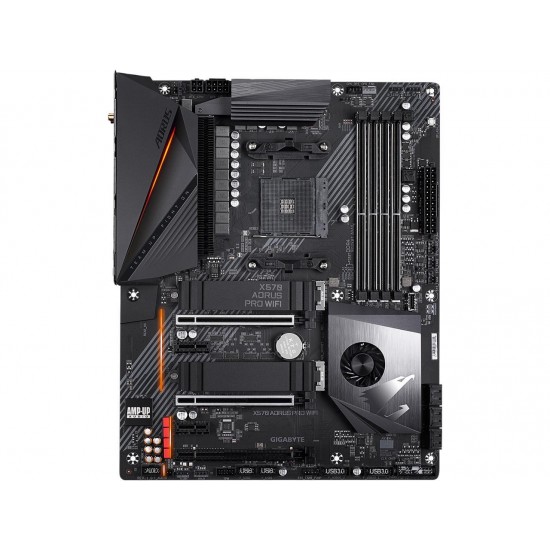

GIGABYTE X570 AORUS PRO WIFI AMD Ryzen 3000 PCIe 4.0 SATA 6Gb/s USB 3.2 AMD X570 ATX Motherboard
GIGABYTE X570 AORUS PRO WIFI AMD Ryzen 3000 PCIe 4.0 SATA 6Gb/s USB 3.2 AMD X570 ATX Motherboard
5,900.00 EGP
Ex Tax: 5,900.00 EGP
| Brand | GIGABYTE |
|---|---|
| Model | X570 AORUS PRO WIFI |
| Chipset | AMD X570 |
|---|
| PCI Express 4.0 x16 | Integrated in the CPU (PCIEX16/PCIEX8): 3rd Generation AMD Ryzen processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) 2nd Generation AMD Ryzen processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen processors, the PCIEX16 slot operates at up to x8 mode. 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen processors only. |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen processors only. |
| Audio Chipset | Realtek ALC1220-VB * The back panel line out jack supports DSD audio. |
|---|---|
| Audio Channels | 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN Chipset | Intel GbE LAN chip |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
| Wireless LAN | Wi-Fi 802.11 a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band Support for 11 ax 160 MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
| Bluetooth | BLUETOOTH 5.0 |

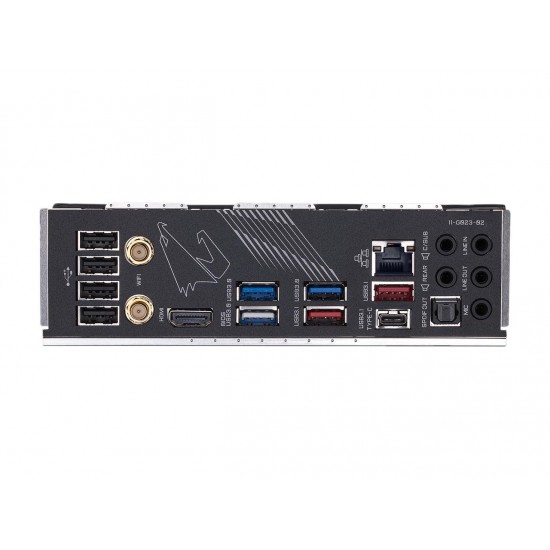

| Back I/O Ports | 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) * For 3rd Generation AMD Ryzen processors only. 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
|---|
| Onboard USB | 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin |
