GIGABYTE X399 AORUS XTREME sTR4 AMD X399 SATA 6Gb/s USB 3.1 Extended ATX AMD Motherboard

GIGABYTE X399 AORUS XTREME sTR4 AMD X399 SATA 6Gb/s USB 3.1 Extended ATX AMD Motherboard
GIGABYTE X399 AORUS XTREME sTR4 AMD X399 SATA 6Gb/s USB 3.1 Extended ATX AMD Motherboard
GIGABYTE X399 AORUS XTREME sTR4 AMD X399 SATA 6Gb/s USB 3.1 Extended ATX AMD Motherboard
GIGABYTE X399 AORUS XTREME sTR4 AMD X399 SATA 6Gb/s USB 3.1 Extended ATX AMD Motherboard
GIGABYTE X399 AORUS XTREME sTR4 AMD X399 SATA 6Gb/s USB 3.1 Extended ATX AMD Motherboard
GIGABYTE X399 AORUS XTREME sTR4 AMD X399 SATA 6Gb/s USB 3.1 Extended ATX AMD Motherboard
GIGABYTE X399 AORUS XTREME sTR4 AMD X399 SATA 6Gb/s USB 3.1 Extended ATX AMD Motherboard
GIGABYTE X399 AORUS XTREME sTR4 AMD X399 SATA 6Gb/s USB 3.1 Extended ATX AMD Motherboard
GIGABYTE X399 AORUS XTREME sTR4 AMD X399 SATA 6Gb/s USB 3.1 Extended ATX AMD Motherboard
GIGABYTE X399 AORUS XTREME sTR4 AMD X399 SATA 6Gb/s USB 3.1 Extended ATX AMD Motherboard
GIGABYTE X399 AORUS XTREME sTR4 AMD X399 SATA 6Gb/s USB 3.1 Extended ATX AMD Motherboard
GIGABYTE X399 AORUS XTREME sTR4 AMD X399 SATA 6Gb/s USB 3.1 Extended ATX AMD Motherboard
GIGABYTE X399 AORUS XTREME sTR4 AMD X399 SATA 6Gb/s USB 3.1 Extended ATX AMD Motherboard
GIGABYTE X399 AORUS XTREME sTR4 AMD X399 SATA 6Gb/s USB 3.1 Extended ATX AMD Motherboard
GIGABYTE X399 AORUS XTREME sTR4 AMD X399 SATA 6Gb/s USB 3.1 Extended ATX AMD Motherboard
GIGABYTE X399 AORUS XTREME sTR4 AMD X399 SATA 6Gb/s USB 3.1 Extended ATX AMD Motherboard
GIGABYTE X399 AORUS XTREME sTR4 AMD X399 SATA 6Gb/s USB 3.1 Extended ATX AMD Motherboard
  • Stock: In Stock
  • Model: X399 AORUS XTREME
1584 views
11,000.00 EGP
Ex Tax: 11,000.00 EGP
Brand
GIGABYTE
Model
X399 AORUS XTREME

Supported CPU

CPU Socket Type
sTR4
CPU Type
SocketTR4:
AMD Ryzen Threadripper processor

Chipsets

Chipset
AMD X399

Memory

Number of Memory Slots
8×288pin
Memory Standard
Support for DDR4 3600+*(O.C.)/ 3466+(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules
* Recommend to use a 1st Gen. Ryzen Threadripper processor to achieve 3600MHz (O.C.) speed.
Maximum Memory Supported
128GB
Channel Supported
Quad Channel

Expansion Slots

PCI Express 3.0 x16
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
(The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
PCI Express x1
1 x PCI Express x1 slot
(The PCIEX1_1 slot conforms to PCI Express 2.0 standard.)

Storage Devices

SATA 6Gb/s
6 x SATA 6Gb/s
M.2
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M) (M2Q)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2P)
SATA RAID
0/1/10

Onboard Audio

Audio Chipset
Realtek ALC1220-VB codec
ESS9118EQ chip
Audio Channels
2/4/5.1/7.1-channel
Support for S/PDIF Out

Onboard LAN

LAN Chipset
2 x Intel GbE LAN chips
Second LAN Chipset
1 x Aquantia GbE LAN chip
Max LAN Speed
10Gbps + Dual 10/100/1000Mbps
Wireless LAN
Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
Support for 11 ac wireless standard and up to 867 Mbps data rate
* Actual data rate may vary depending on environment and equipment.
Bluetooth
BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR

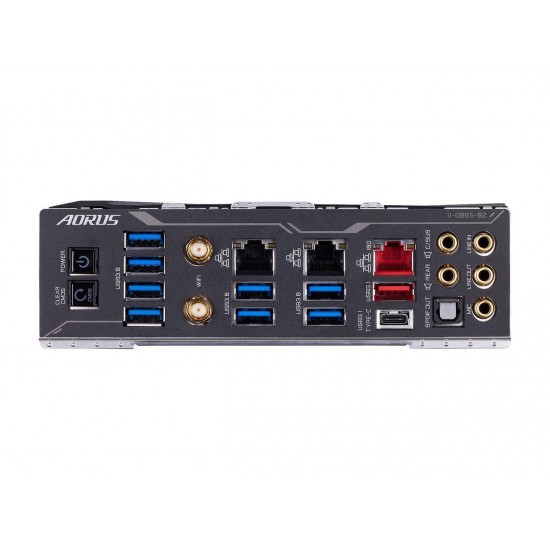

Rear Panel Ports

RJ45
3 x RJ45
USB 3.1
1 x USB Type-C port, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red)
8 x USB 3.1 Gen 1 ports
S/PDIF Out
1 x Optical
Audio Ports
5 Ports

Internal I/O Connectors

Onboard USB
1 x USB Type-C port, with USB 3.1 Gen 2 support
2 x USB 3.1 Gen 1 headers
2 x USB 2.0/1.1 headers
Other Connectors
1 x OC PEG power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x system fan/water cooling pump headers
2 x digital (addressable) LED strip headers
2 x digital (addressable) LED strip power select jumpers
2 x RGB (RGBW) LED strip headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
1 x BIOS switch
1 x DualBIOS switch
2 x temperature sensor headers
1 x Clear CMOS jumper

Physical Spec

Form Factor
Extended ATX
LED Lighting
RGB
Dimensions (W x L)
12.0" x 10.6"
Power Pin
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors

Features

Features
Multi-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 4-Way/3-Way/2-Way AMD CrossFire technologies
Support for NVIDIA Quad-GPU SLI and 4-Way/3-Way/2-Way NVIDIA SLI technologies

I/O Controller:
iTE I/O Controller Chip

H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS:
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
Smart Survey
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install

Bundle Software:
Norton Internet Security (OEM version)
cFosSpeed
XSplit Gamecaster + Broadcaster (12 months license)

Operating System:
Support for Windows 10 64-bit
