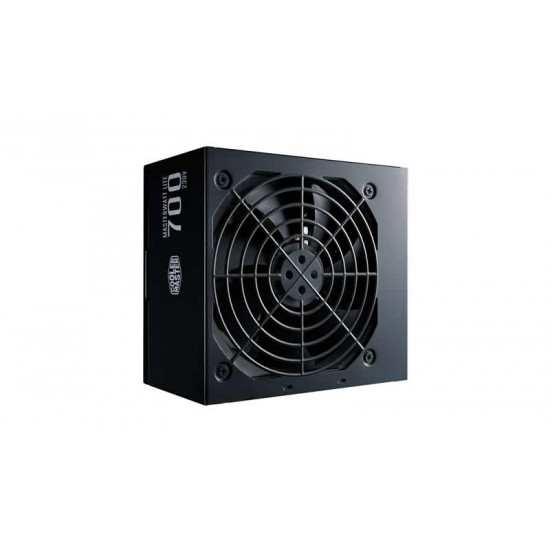

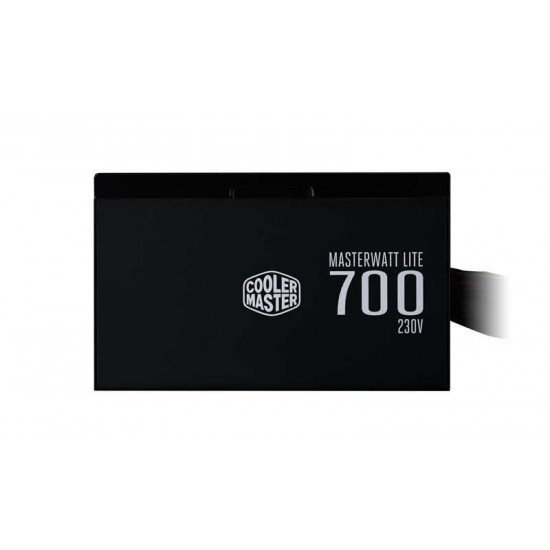

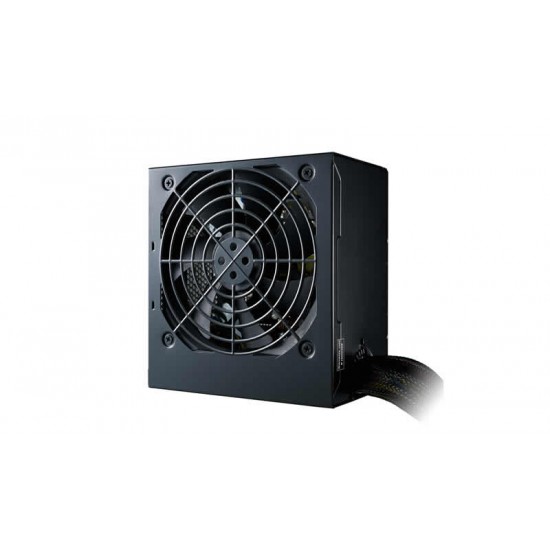

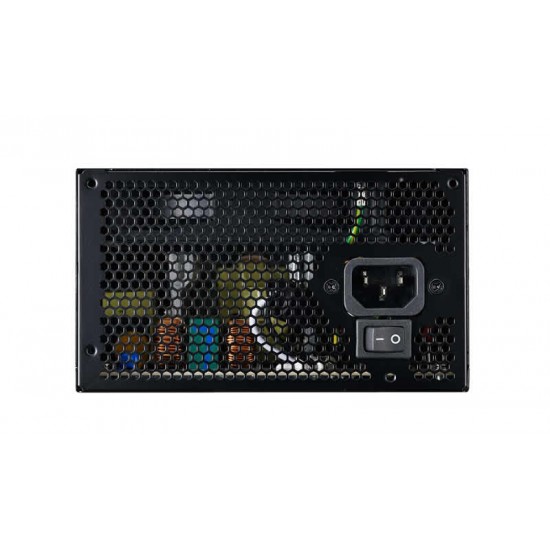

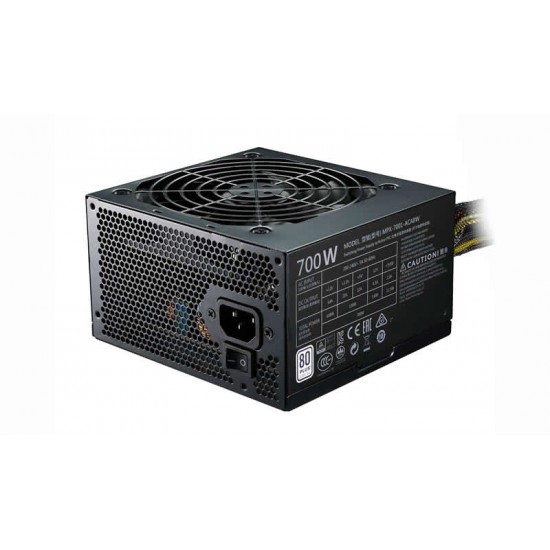

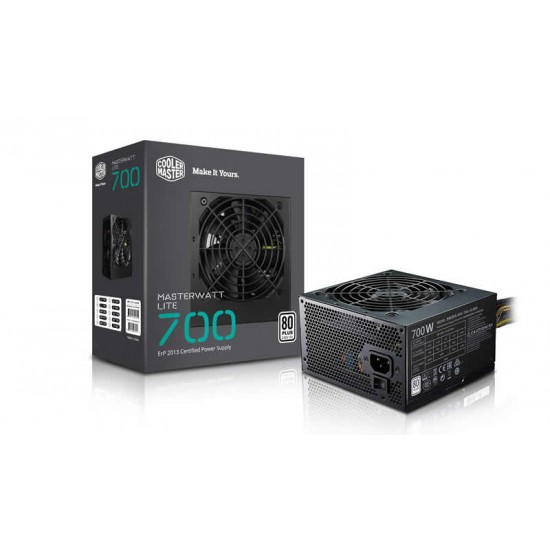

COOLER MASTER MasterWatt Lite 230V (ErP 2013) 700W MPX-7001-ACABW-KS ATX 12V V2.31 ErP 2013 Lot6 Active PFC Power Supply

COOLER MASTER MasterWatt Lite 230V (ErP 2013) 700W MPX-7001-ACABW-KS ATX 12V V2.31 ErP 2013 Lot6 Active PFC Power Supply
COOLER MASTER MasterWatt Lite 230V (ErP 2013) 700W MPX-7001-ACABW-KS ATX 12V V2.31 ErP 2013 Lot6 Active PFC Power Supply
COOLER MASTER MasterWatt Lite 230V (ErP 2013) 700W MPX-7001-ACABW-KS ATX 12V V2.31 ErP 2013 Lot6 Active PFC Power Supply
COOLER MASTER MasterWatt Lite 230V (ErP 2013) 700W MPX-7001-ACABW-KS ATX 12V V2.31 ErP 2013 Lot6 Active PFC Power Supply
COOLER MASTER MasterWatt Lite 230V (ErP 2013) 700W MPX-7001-ACABW-KS ATX 12V V2.31 ErP 2013 Lot6 Active PFC Power Supply
COOLER MASTER MasterWatt Lite 230V (ErP 2013) 700W MPX-7001-ACABW-KS ATX 12V V2.31 ErP 2013 Lot6 Active PFC Power Supply
COOLER MASTER MasterWatt Lite 230V (ErP 2013) 700W MPX-7001-ACABW-KS ATX 12V V2.31 ErP 2013 Lot6 Active PFC Power Supply
COOLER MASTER MasterWatt Lite 230V (ErP 2013) 700W MPX-7001-ACABW-KS ATX 12V V2.31 ErP 2013 Lot6 Active PFC Power Supply
COOLER MASTER MasterWatt Lite 230V (ErP 2013) 700W MPX-7001-ACABW-KS ATX 12V V2.31 ErP 2013 Lot6 Active PFC Power Supply
COOLER MASTER MasterWatt Lite 230V (ErP 2013) 700W MPX-7001-ACABW-KS ATX 12V V2.31 ErP 2013 Lot6 Active PFC Power Supply
COOLER MASTER MasterWatt Lite 230V (ErP 2013) 700W MPX-7001-ACABW-KS ATX 12V V2.31 ErP 2013 Lot6 Active PFC Power Supply
COOLER MASTER MasterWatt Lite 230V (ErP 2013) 700W MPX-7001-ACABW-KS ATX 12V V2.31 ErP 2013 Lot6 Active PFC Power Supply
COOLER MASTER MasterWatt Lite 230V (ErP 2013) 700W MPX-7001-ACABW-KS ATX 12V V2.31 ErP 2013 Lot6 Active PFC Power Supply
COOLER MASTER MasterWatt Lite 230V (ErP 2013) 700W MPX-7001-ACABW-KS ATX 12V V2.31 ErP 2013 Lot6 Active PFC Power Supply
COOLER MASTER MasterWatt Lite 230V (ErP 2013) 700W MPX-7001-ACABW-KS ATX 12V V2.31 ErP 2013 Lot6 Active PFC Power Supply
COOLER MASTER MasterWatt Lite 230V (ErP 2013) 700W MPX-7001-ACABW-KS ATX 12V V2.31 ErP 2013 Lot6 Active PFC Power Supply
COOLER MASTER MasterWatt Lite 230V (ErP 2013) 700W MPX-7001-ACABW-KS ATX 12V V2.31 ErP 2013 Lot6 Active PFC Power Supply
COOLER MASTER MasterWatt Lite 230V (ErP 2013) 700W MPX-7001-ACABW-KS ATX 12V V2.31 ErP 2013 Lot6 Active PFC Power Supply
COOLER MASTER MasterWatt Lite 230V (ErP 2013) 700W MPX-7001-ACABW-KS ATX 12V V2.31 ErP 2013 Lot6 Active PFC Power Supply
COOLER MASTER MasterWatt Lite 230V (ErP 2013) 700W MPX-7001-ACABW-KS ATX 12V V2.31 ErP 2013 Lot6 Active PFC Power Supply
COOLER MASTER MasterWatt Lite 230V (ErP 2013) 700W MPX-7001-ACABW-KS ATX 12V V2.31 ErP 2013 Lot6 Active PFC Power Supply
  • Stock: In Stock
  • Model: MPX-7001-ACABW-KS
1590 views
1,500.00 EGP
Ex Tax: 1,500.00 EGP
Brand
COOLER MASTER
Model
MPX-7001-ACABW-KS
Series
MasterWatt Lite 230V (ErP 2013) 700W

Details

Type
ATX 12V V2.31
Maximum Power
700W
Fans
Silent 120mm HDB fan
PFC
Active
Main Connector
20+4Pin
+12V Rails
Single
PCI-Express Connector
4 x 6+2-Pin
SATA Power Connector
6
Power Good Signal
100-500ms
Hold-up Time
>10ms at 100% full load@230Vac
Efficiency
> 85%
Energy-Efficient
ErP 2013 Lot6
Over Voltage Protection
Yes
Input Voltage
200 - 240 V
Input Frequency Range
50/60 Hz
Input Current
5A

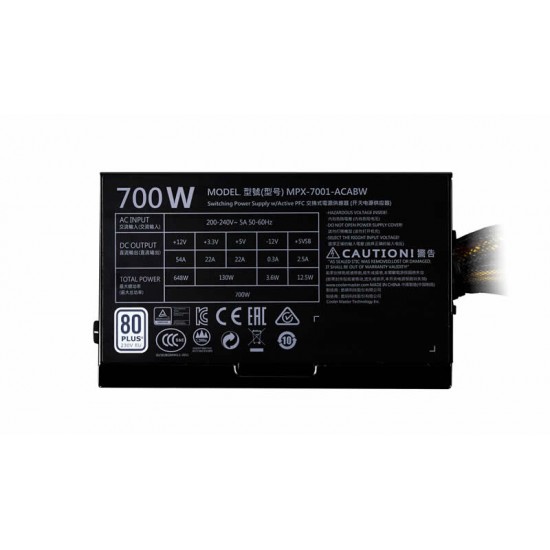

Output
+3.3V@22A, +5V@22A, +12V@54A, -12V@0.3A, +5VSB@2.5A
MTBF
>100,000 Hours
Approvals
TUV, CE, BSMI, FCC, cTUV-Rhus, KC, CCC, EAC, RCM, CB
Dimensions
3.39" x 5.51" x 5.91"

Features

Connectors
1 x MB 20+4 Pin
1 x CPU 12V 4+4Pin
6 x SATA
3 x Peripheral 4 Pin
1 x FDD Cable 4 Pin
4 x PCI-e 6+2 Pin
Features
Lighten the Load
Power on. We want the MasterWatt Lite Series to be that simple. In the box are all the essentials of a reliable engine so you don't have to think about it. We added higher-end perks like Active PFC and PWM technology for more stability, and made sure we met ErP 2013 and CE ratings for safety and low energy impact. It's the survival kit for reliable, affordable power.

Advanced Circuit Design

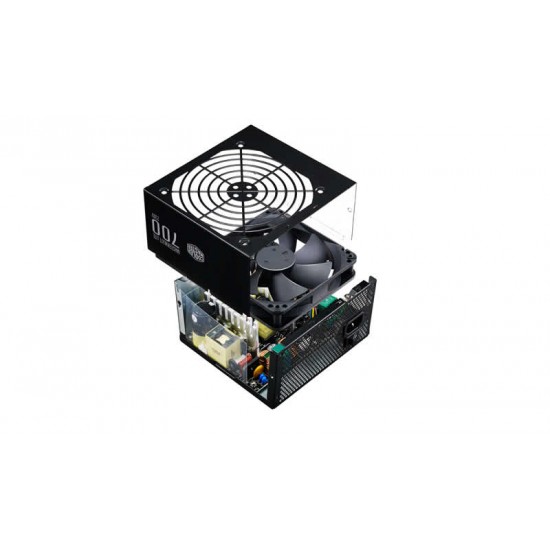

Active PFC + PWM combined with dual forward topology and double EMI filter enhances power output efficiency and increases the performance and stability of your system

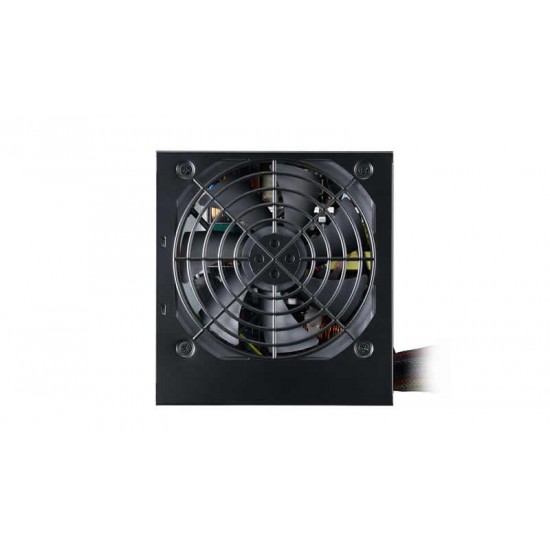

Silent and Durable Fan
Cooler Master's 120mm HDB temperature control fan can operate more smoothly without friction, which makes it quiet and more durable.

Green Power
Compliant with ErP 2013 Lot6, which guarantees that your PSU will use less than 0.5W on system standby and lower than 45% transferring efficiency on 5V standby.

Safety Guardian
Full protection (OCP/OVP/SCP/OPP) with built-in Over Temperature Protection (OTP). Minimizes the risk of damage from power outages.
