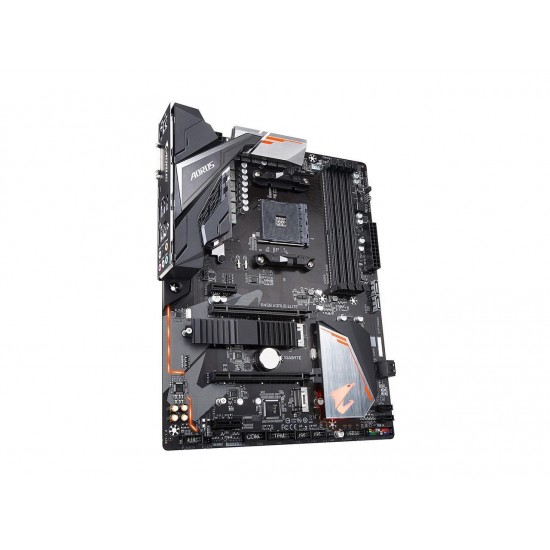

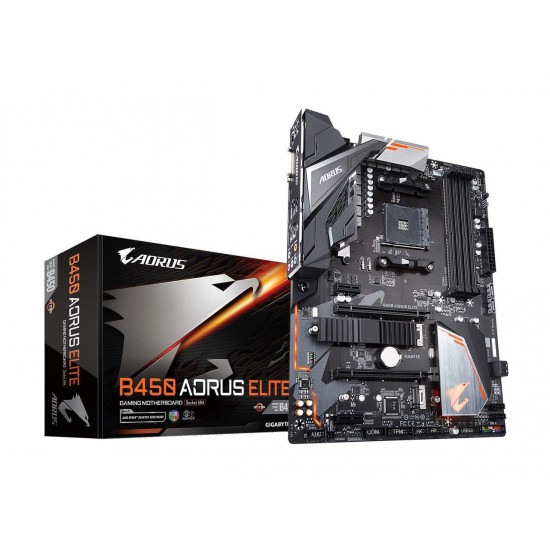

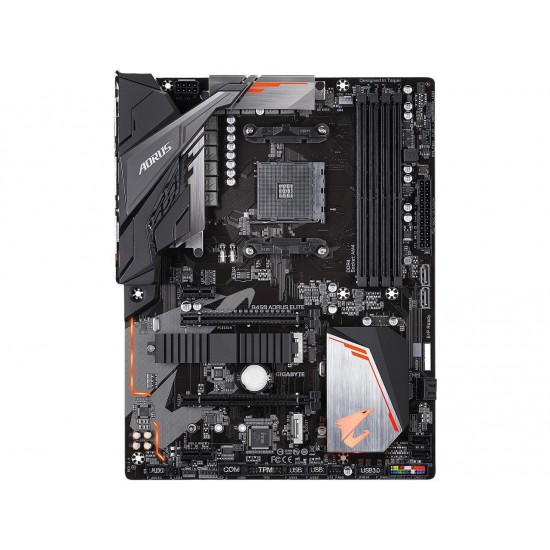

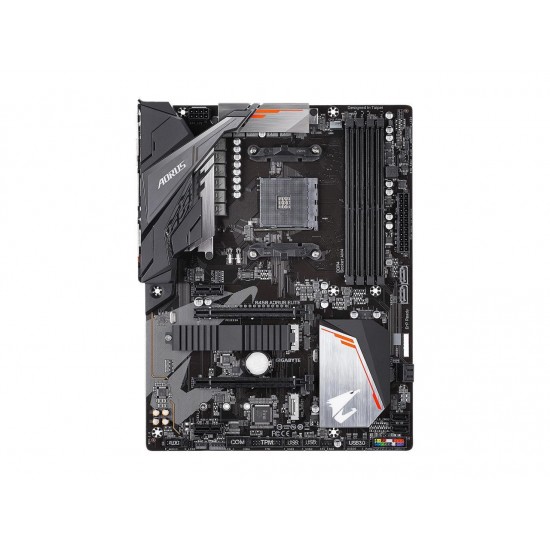

GIGABYTE B450 AORUS ELITE AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard

GIGABYTE B450 AORUS ELITE AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard
GIGABYTE B450 AORUS ELITE AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard
GIGABYTE B450 AORUS ELITE AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard
GIGABYTE B450 AORUS ELITE AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard
GIGABYTE B450 AORUS ELITE AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard
GIGABYTE B450 AORUS ELITE AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard
GIGABYTE B450 AORUS ELITE AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard
GIGABYTE B450 AORUS ELITE AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard
GIGABYTE B450 AORUS ELITE AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard
GIGABYTE B450 AORUS ELITE AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard
GIGABYTE B450 AORUS ELITE AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard
GIGABYTE B450 AORUS ELITE AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard
GIGABYTE B450 AORUS ELITE AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard
GIGABYTE B450 AORUS ELITE AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard
GIGABYTE B450 AORUS ELITE AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard
  • : In Stock
  • Model: B450 AORUS ELITE
1758 views
2,350.00 EGP
Ex Tax: 2,350.00 EGP
Brand
GIGABYTE
Model
B450 AORUS ELITE

Supported CPU

CPU Socket Type
AM4
CPU Type
AM4 Socket:
AMD Ryzen 2nd Generation processors
AMD Ryzen with Radeon Vega Graphics processors
AMD Ryzen 1st Generation processors

Chipsets

Chipset
AMD B450

Memory

Number of Memory Slots
4×288pin
Memory Standard
DDR4 3200(O.C.)/ 2933/ 2667/ 2400/ 2133
Maximum Memory Supported
64GB
Channel Supported
Dual Channel

Expansion Slots

PCI Express 3.0 x16
1 x PCI Express x16 slot, running at x16 (PCIEX16)*
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
PCI Express 2.0 x16
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when the PCIEX1_2 is empty.
PCI Express x1
2 x PCI Express x1 slots
(The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)

Storage Devices

SATA 6Gb/s
6 x SATA 6Gb/s
M.2
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support) (M2B_SOCKET)
SATA RAID
0/1/10

Onboard Video

Onboard Video Chipset
Integrated Graphics Processor:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz*
* Support for HDMI 2.0 version and HDCP 2.2.*
Maximum shared memory of 16GB

* Actual support may vary by CPU.

Onboard Audio

Audio Chipset
Realtek ALC892
Audio Channels
2/4/5.1/7.1-channel
Support for S/PDIF Out

Onboard LAN

LAN Chipset
Realtek GbE LAN chip
Max LAN Speed
10/100/1000Mbps

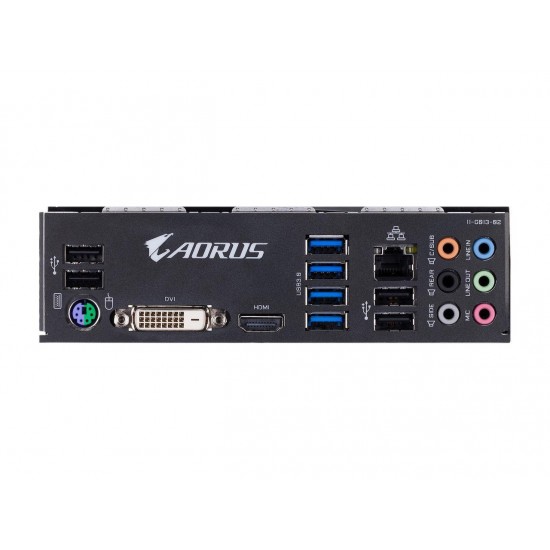

Rear Panel Ports

PS/2
1 x PS/2 keyboard/mouse port
Video Ports
1 x DVI-D port
HDMI
1 x HDMI
RJ45
1 x RJ45
USB 3.1
4 x USB 3.1 Gen 1 ports
USB 1.1/2.0
4 x USB 2.0
Audio Ports
6 Ports

Internal I/O Connectors

Onboard USB
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors
1 x CPU fan header
3 x system fan headers
1 x CPU cooler LED strip/RGB LED strip extension cable header
1 x RGB (RGBW) LED strip header
2 x digital LED strip headers
2 x digital LED strip power select jumpers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module (TPM) header (2x10-pin, for the GC-TPM2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

Physical Spec

Form Factor
ATX
LED Lighting
RGB
Dimensions (W x L)
12.0" x 9.3"
Power Pin
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Features

Features
Multi-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

I/O Controller:
iTE I/O Controller Chip

H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

BIOS:
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install

Bundle Software:
Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility

Operating System:
Support for Windows 10 64-bit
Support for Windows 7 64-bit
* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
