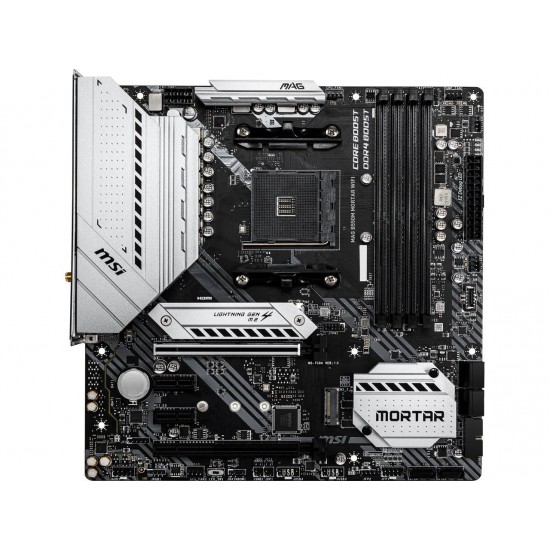

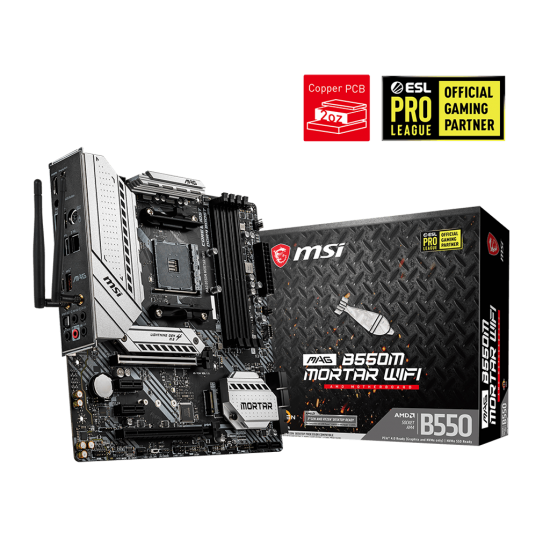

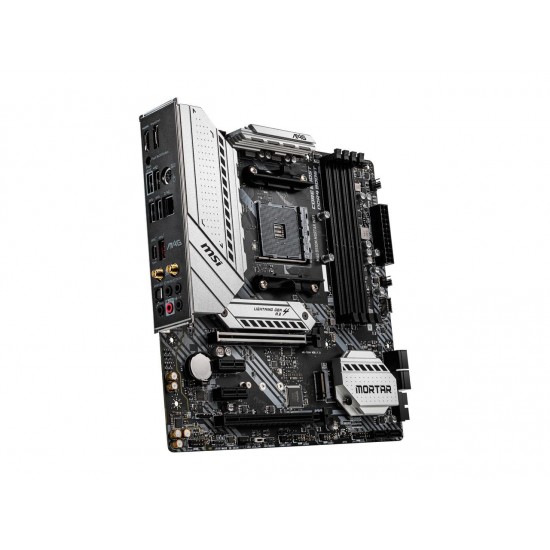

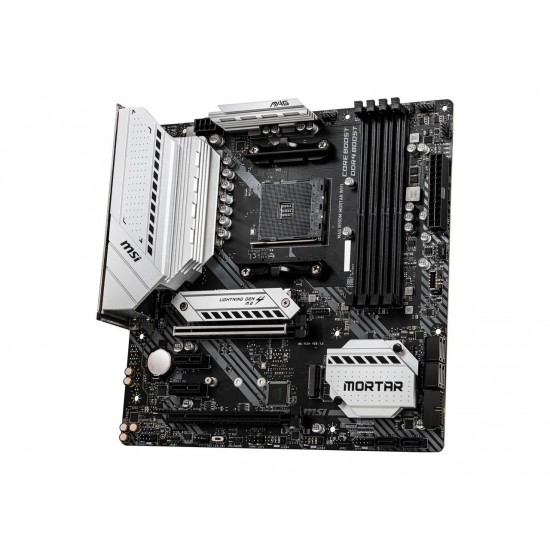

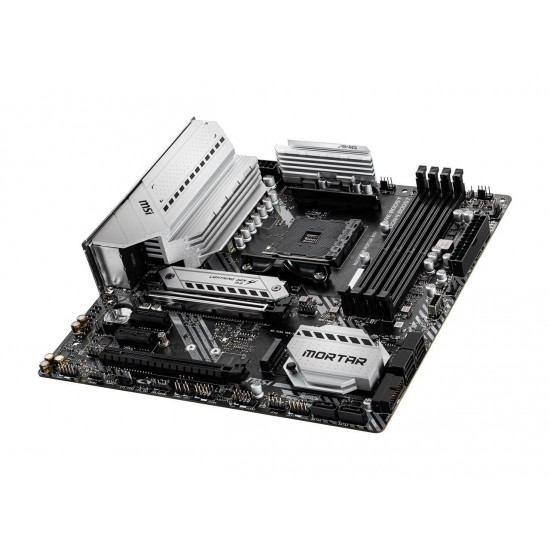

MSI MAG B550M MORTAR WIFI AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard

MSI MAG B550M MORTAR WIFI AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
MSI MAG B550M MORTAR WIFI AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
MSI MAG B550M MORTAR WIFI AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
MSI MAG B550M MORTAR WIFI AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
MSI MAG B550M MORTAR WIFI AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
MSI MAG B550M MORTAR WIFI AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
MSI MAG B550M MORTAR WIFI AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
New
MSI MAG B550M MORTAR WIFI AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
MSI MAG B550M MORTAR WIFI AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
MSI MAG B550M MORTAR WIFI AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
MSI MAG B550M MORTAR WIFI AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
MSI MAG B550M MORTAR WIFI AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
MSI MAG B550M MORTAR WIFI AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
MSI MAG B550M MORTAR WIFI AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
MSI MAG B550M MORTAR WIFI AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
  • Stock: Stock
  • Model: MAG B550M MORTAR WIFI
11700 views
3,250.00 EGP
Ex Tax: 3,250.00 EGP
Model
BrandMSI
SeriesBecause post air mail refuse the goods with battery,In order to successfully pass security,the goods we ship out not include CMOS battery(CR2032),hope u can understand.
ModelMAG B550M MORTAR WIFI
Supported CPU
CPU Socket Type AM4
CPU TypeSupports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update
Chipsets
Chipset AMD B550
Memory
Number of Memory Slots4×288pin
Memory StandardSupports DDR4 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
Supports DDR4 4400+/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE

1DPC 1R max speed 4400 MHz
1DPC 2R max speed 3733 MHz
2DPC 1R max speed 3866 MHz
2DPC 2R max speed 3466 MHz
Maximum Memory Supported128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 4.0 x161 x PCIe 3.0/4.0 x16 slot (PCI_E1) *
* The supported specification depends on installed processor.
PCI Express 3.0 x16 1 x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode **
** PCI_E4 will be unavailable when an M.2 SSD is installed in the M2_2 slot.
PCI Express x12 x PCIe 3.0 x1 slots
Other Slots1 x Key E (WiFi/BT)
Storage Devices
SATA 6Gb/s 6 x SATA 6Gb/s
M.22 x M.2 slots (Key M)
M2_1 slot (from AMD processor)
Supports PCIe 4.0/3.0 x4 *
Supports SATA 6Gb/s
Supports 2242/2260/2280 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0 x4
Supports 2242/2260/2280 storage devices

* The supported specification depends on installed processor.
SATA RAID0/1/10
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic:
1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
Maximum shared memory of 2048MB

* Available for the processor with integrated graphics.
Onboard Audio
Audio Chipset Realtek ALC1200
Audio Channels 7.1-Channel High Definition Audio
Supports S/PDIF output
Onboard LAN
LAN ChipsetRealtek RTL8125B
Max LAN Speed10/100/1000/2500Mbps
Wireless LANIntel Wi-Fi 6 AX200
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/5GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
BluetoothSupports Bluetooth 5.1
Rear Panel Ports

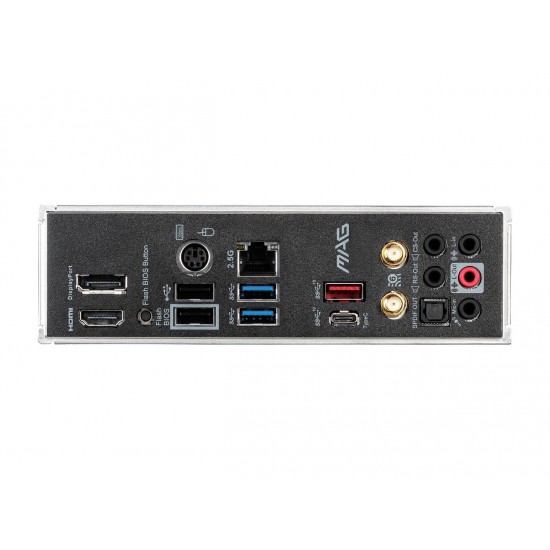

Back I/O Ports1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.2 Gen 2 Type-A / 1 x USB 3.2 Gen 2 Type-C / 2 x USB 2.0/1.1 / 2 x USB 3.2 Gen 1 Type-A / 5 x Audio Jacks
Internal I/O Connectors
Onboard USB1 x USB 3.2 Gen 1 5Gbps Type-C port
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors1 x 4-pin CPU fan connector
1 x 4-pin water-pump fan connector
3 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x 4-pin RGB LED connector
2 x 3-pin RAINBOW LED connectors
1 x TPM module connector
1 x Clear CMOS jumper
Physical Spec
Form FactorMicro ATX
LED Lighting
