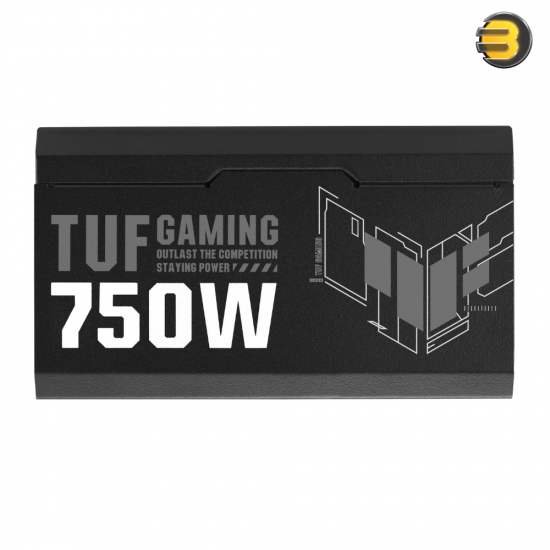

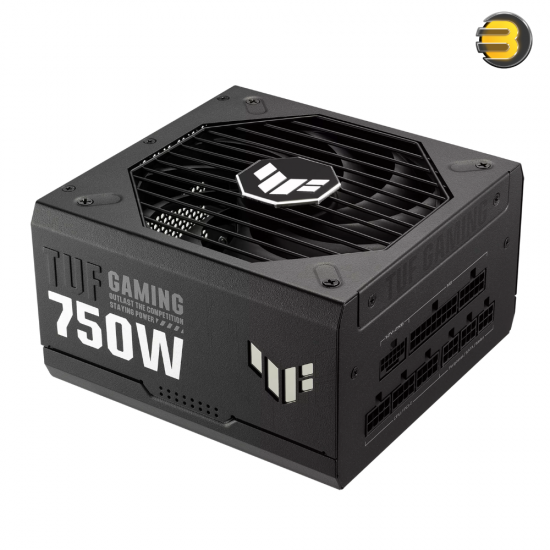

ASUS TUF Gaming 750W Gold — 80+ Gold, ATX 3.1, fully modular, dual ball‑bearing 135mm Axial‑tech fan, military‑grade components, protections (OPP/OVP/UVP/SCP/OCP/OTP), 100–240V input, connectors: 24‑pin ATX, 2x CPU 4+4‑pin, 1x 16‑pin PCIe, 3x PCIe 8‑pin

• Model: TUF Gaming 750W Gold

• Intel Form Factor: ATX12V

• Active PFC (Power Factor Correction)

• ATX Standard: ATX 3.1

• Dimensions: 150 x 150 x 86 mm

• Efficiency: 80 Plus Gold certified

• MTBF: >120,000 hours at 40°C

• Protection Features: Over Power Protection (OPP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Current Protection (OCP), Over Temperature Protection (OTP)

• Compliance: RoHS hazardous materials standard

Electrical Outputs

• DC Output Voltages: +3.3V, +5V, +12V, -12V, +5Vsb

• Maximum Load:

  • +3.3V: 25A

  • +5V: 25A

  • +12V: 62A (744W)

  • -12V: 0.8A

  • +5Vsb: 3A

• Combined Load:

  • +3.3V and +5V combined up to 130W

• Total Output Power: 750W

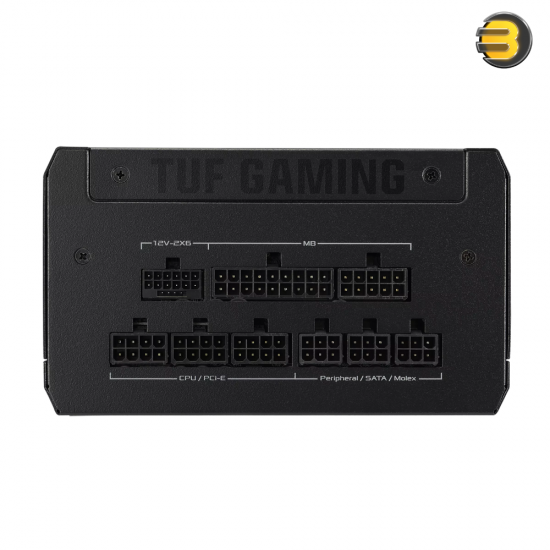

Connectors

• Motherboard Power: 1 x 24/20-pin (610mm cable)

• CPU Power: 2 x 4+4-pin (650mm cables)

• PCI-E Power: 1 x 16-pin (PCIe Gen 5.1) cable (675mm)

• PCI-E adapters:

  • 1 x PCI-E 16-pin to dual 8-pin (675mm)

  • 1 x PCI-E 1-to-1 cable (675mm)

• SATA Connectors: 5 SATA connectors (with 1-to-2 and 1-to-3 splitter cables)

• Peripheral Connectors: 4 Molex 1-to-4 splitter cables

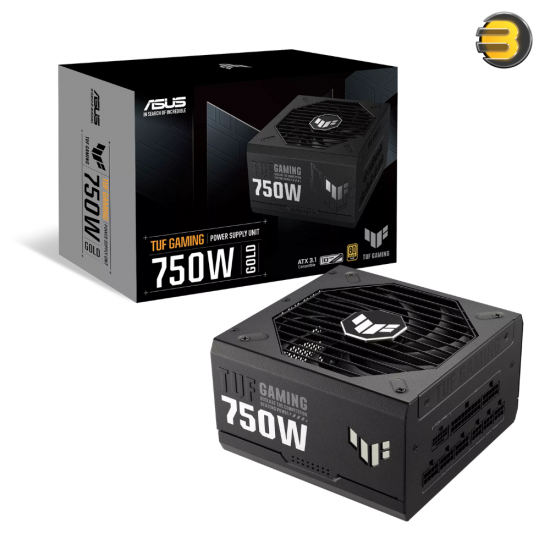

• Package includes power cords, cables mentioned above, 3 cable ties, and user manual

Features

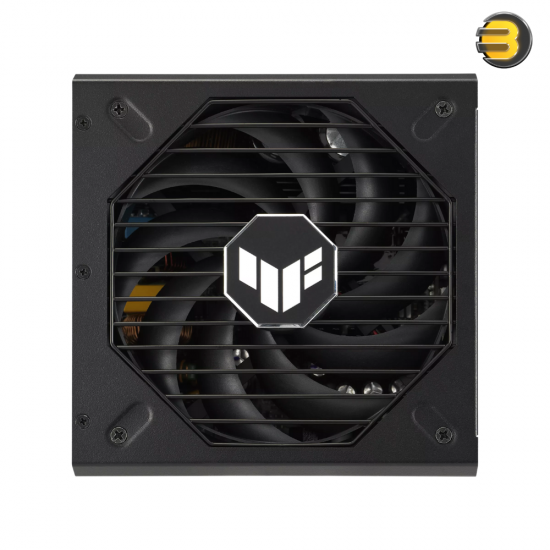

• 0dB Technology: Fan remains off until system reaches a specific load for silent operation; the fan operates only when necessary to cool the PSU

• Fan Type: No separate 0dB fan button; auto engages silent mode by default

Weight

• 2.38 kg (single PSU unit)
