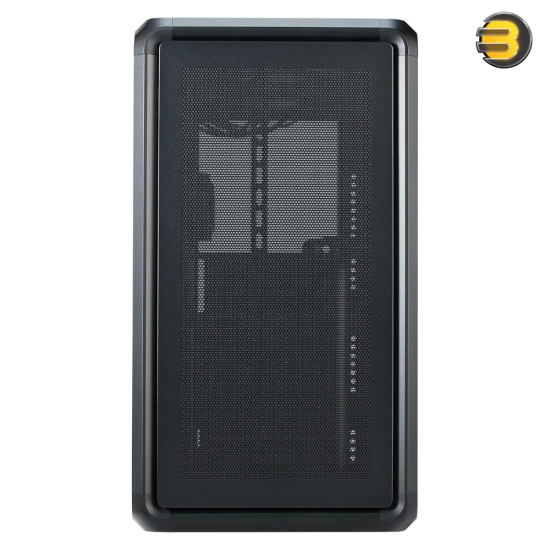

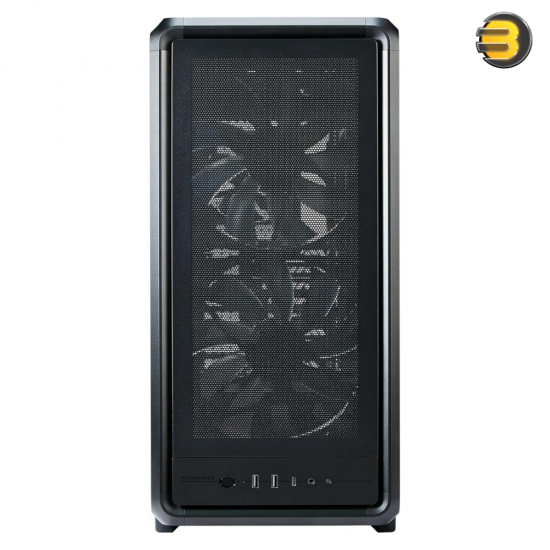

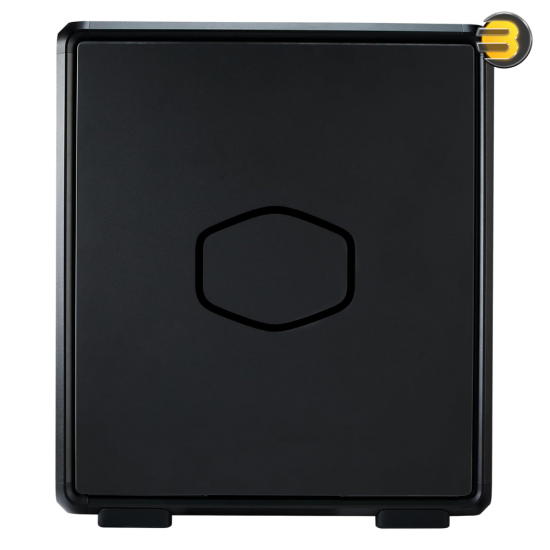

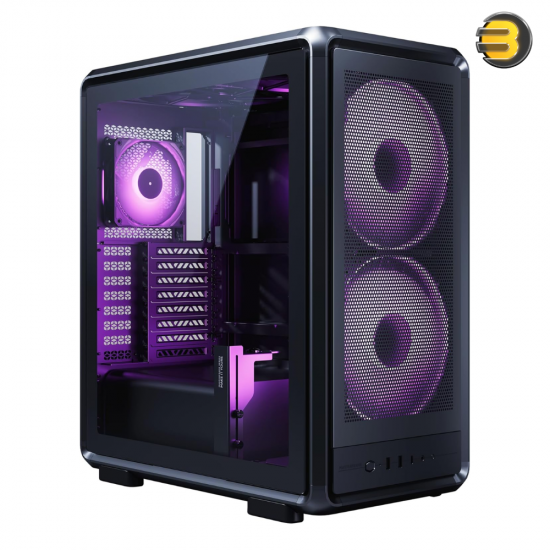

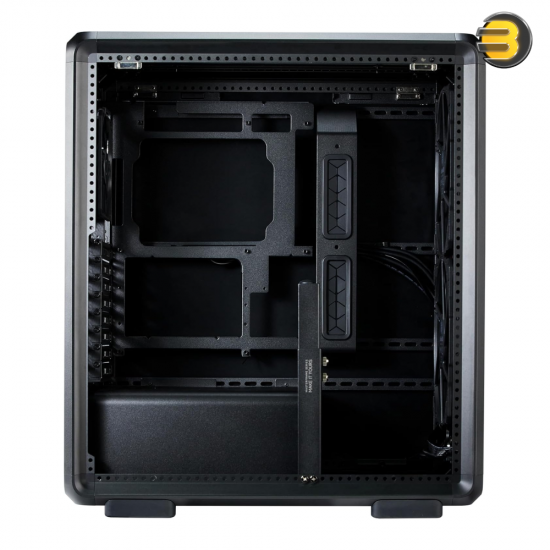

Cooler Master MasterFrame 500 Mesh ARGB Case – Black, 3x ARGB Fans Included (Dual 200mm + 120mm), E-ATX Support, USB-C 20Gbps

• Including protrusions: 471 × 261 × 544 mm
• Excluding protrusions: 471 × 261 × 531 mm

Materials & Construction

• Frame/Chassis: SGCC Steel + Aluminum
• Side Panels (Left & Right): Tempered glass (dual-side showcase)
• Dust Filters: Removable mesh filters (front/top)

Motherboard Support

• Mini-ITX
• Mini-DTX
• Micro-ATX
• ATX
• E-ATX* (conditional – width-limited)
• SSI-CEB* (conditional)

  Check motherboard dimensions for compatibility with E-ATX/SSI-CEB.

Drive Bays

• 2.5"/3.5" Combo Bay: 1 × (bottom-mounted, supports either 1× 3.5" HDD or 1× 2.5" SSD)
• 5.25" Bays: 0

Cooling Support

• Front: 2 × 200mm SickleFlow ARGB fans
• Rear: 1 × 120mm ARGB fan

• Front: 2 × 200mm SickleFlow fans
• Rear: 1 × 120mm standard fan

• Front: 3 × 120mm / 2 × 140mm / 2 × 180mm / 2 × 200mm
• Top: 3 × 120mm / 2 × 140mm / 2 × 180mm / 2 × 200mm
• Rear: 1 × 120mm
• Bottom: 1 × 120mm (intake)

• Front: 120 / 140 / 240 / 280 / 360mm
• Top: 120 / 140 / 240 / 280 / 360mm
• Rear: 120mm

Clearances

• Max CPU Cooler Height: 190 mm
• Max GPU Length: 390 mm
• Max PSU Length: 235 mm

Front I/O Panel

• USB 3.2 Gen 1 Type-A × 2
• USB 3.2 Gen 2x2 Type-C (20 Gbps) × 1
• 3.5mm Headset Jack (Audio + Mic combo) × 1

Power Supply

• Type: ATX
• Max Length: 235 mm

Cable Management

• Behind Motherboard Tray: 43 mm routing space
• Velcro straps and multiple cutouts for clean builds

Included Accessories

• GPU support bracket (prevents sag on heavy graphics cards)
• Motherboard standoffs
• Cable ties / Velcro straps

Warranty
