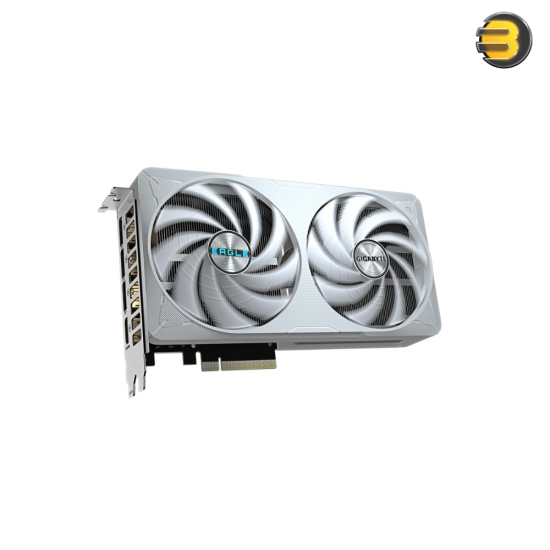

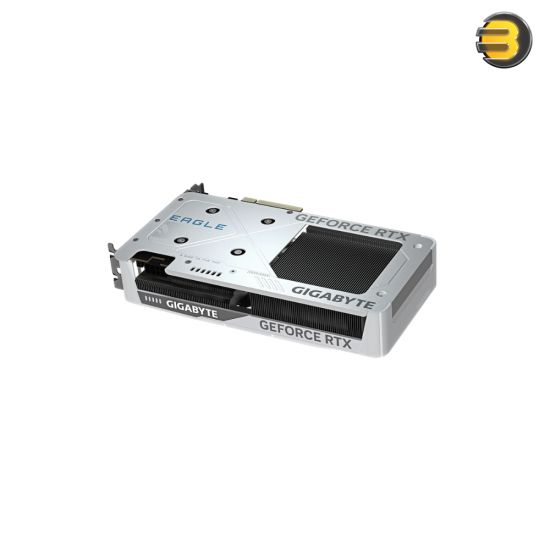

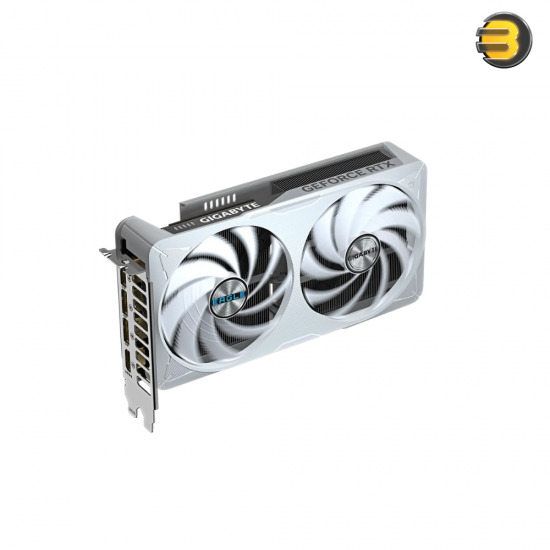

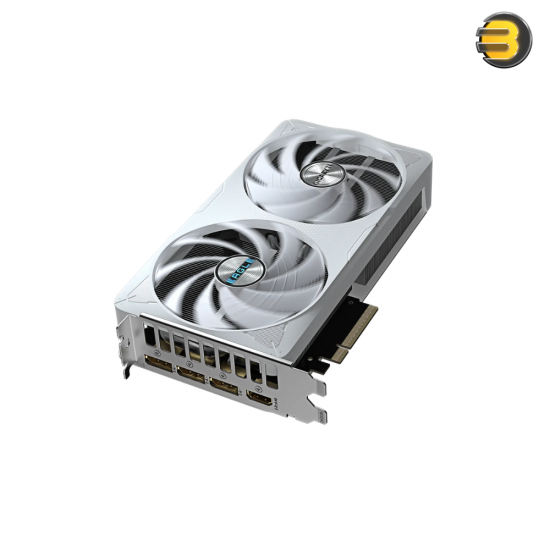

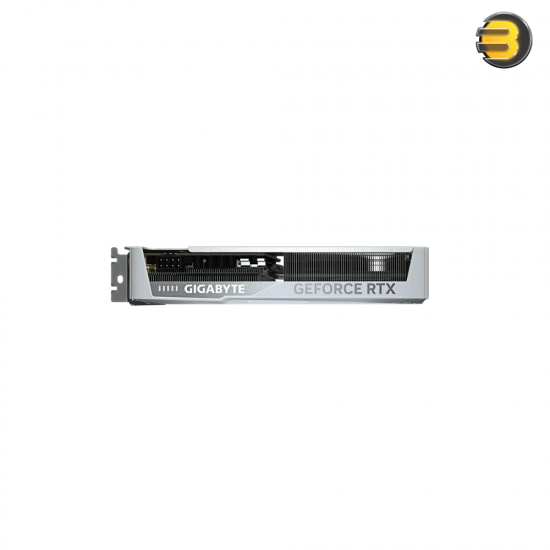

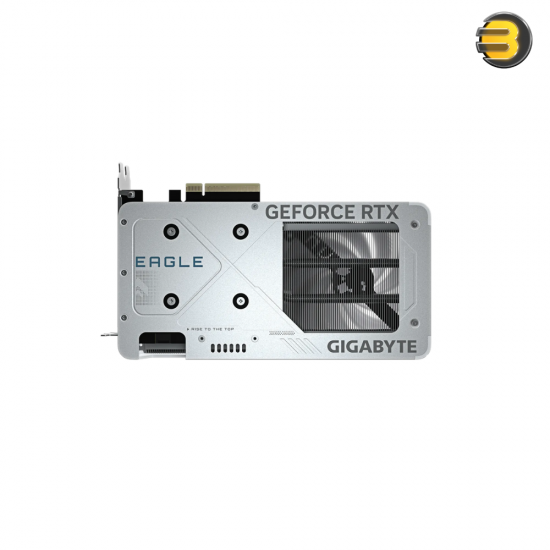

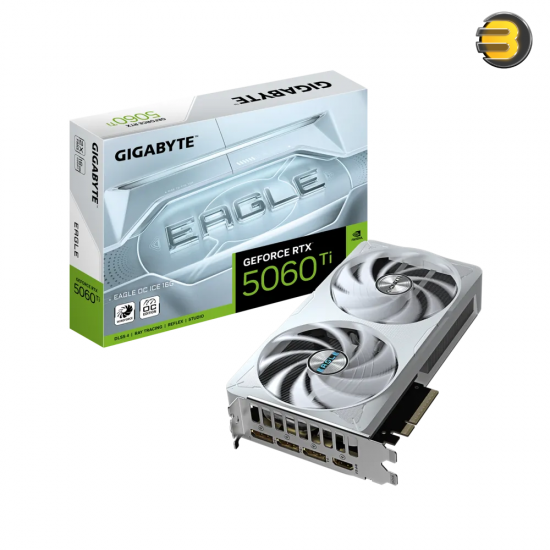

GIGABYTE GeForce RTX™ 5060 Ti EAGLE OC ICE 16G GPU – WINDFORCE ICE Cooling, 16GB GDDR7, DLSS 4

Graphics Processing

• GPU Model: NVIDIA® GeForce RTX™ 5060 Ti
• Core Clock: 2617 MHz (Reference: 2572 MHz)
• CUDA Cores: 4608
• Memory Clock: 28 Gbps
• Memory Size: 16 GB
• Memory Type: GDDR7
• Memory Bus: 128-bit
• Card Bus Interface: PCIe 5.0

Display Outputs

• Max Digital Resolution: 7680 x 4320 (8K) via DisplayPort 2.1b (DSC mode)
• Multi-Monitor Support: 4 displays simultaneously

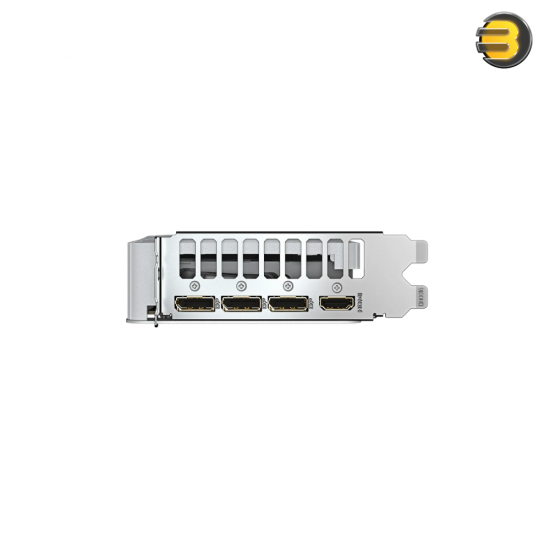

• Ports:
  • 3 x DisplayPort 2.1b
  • 1 x HDMI 2.1b

Physical Specifications

• Card Dimensions (L x W x H): 215mm x 122mm x 40mm
• PCB Form Factor: ATX
• Power Connectors: 1 x 8-pin

Performance & Compatibility

• DirectX Support: 12 API
• OpenGL Support: 4.6
• Recommended PSU: 650W
• Power Consumption: Typically 160–200W (varies by design)
