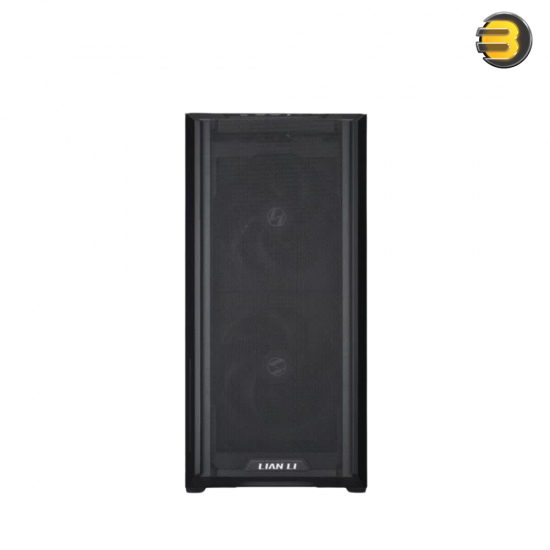

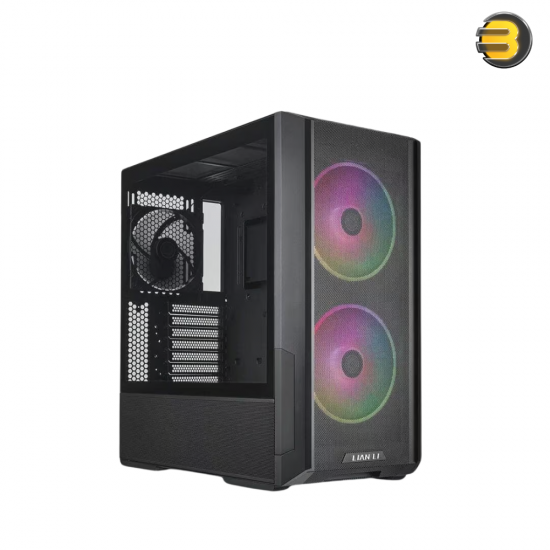

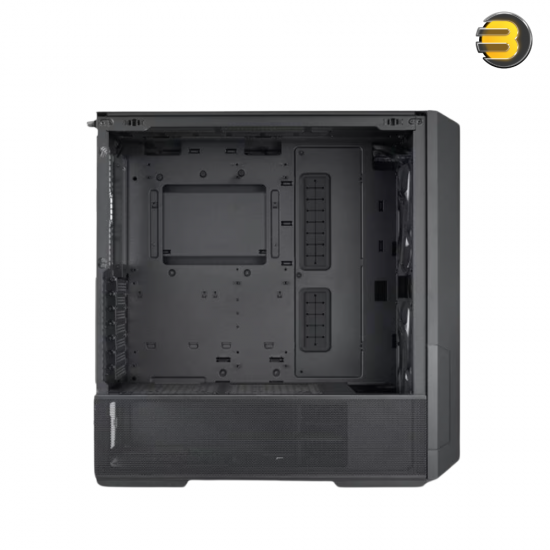

Lian Li Lancool 216 Mid-Tower ATX Computer Case — Steel + 4mm Tempered Glass, Up to 360mm Radiator Support, 10-Fan Capacity (2x 160mm ARGB/Non-RGB + 1x 140mm PWM), Relocatable Front I/O, PCIe Fan Bracket, Enhanced Cable Management

General Information

• Model Name: LANCOOL 216 RGB
• Color: Black
• Material:
  • Steel Frame for durability.
  • 4.0mm Tempered Glass for front/top panel visibility.
• Dimensions (D x W x H): 480.9mm x 235mm x 491.7mm
• Form Factor: Mid-tower case

Motherboard Compatibility

• Supported Motherboards:
  • E-ATX (up to 280mm)
  • ATX
  • Micro-ATX
  • Mini-ITX

Cooling & Fan Support

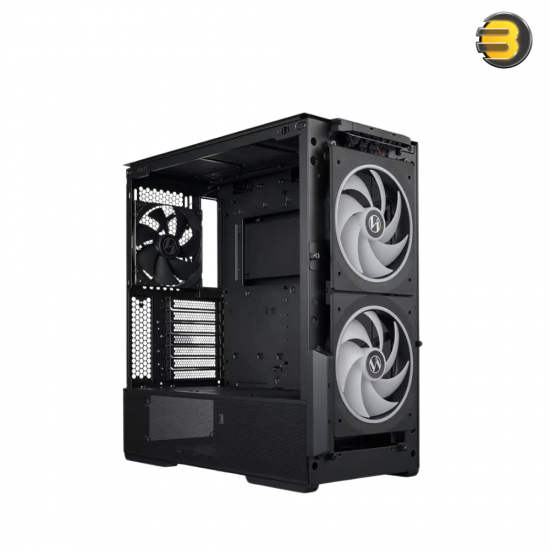

• Fan Support:
  • Top: 3 x 120mm / 2 x 140mm.
  • PSU Cover (Air Cooling Mode): 2 x 120mm / 2 x 140mm.
  • Front: 3 x 120mm / 2 x 140mm / 2 x 160mm.
  • Rear: 1 x 120mm / 1 x 140mm (Not compatible with UNI FAN SL-INF 140) .
  • PCIe Fan Bracket: 1 x 120mm.
• Included Fans:
  • Front: 2 x 160mm ARGB Fans.
  • Rear: 1 x 140mm PWM Fan.
• Dust Filters: 1 x Bottom Filter for improved airflow and cleanliness.

Radiator Support

• Front: 240mm / 280mm / 360mm.
• Top: 240mm / 280mm / 360mm.
• Bottom: 240mm.

Storage & Drive Bays

• Drive Cage:
  • 2 x 2.5” SSD + 2 x 3.5” HDD .
• PSU Cover:
  • 2 x 2.5” SSD .
• Behind MB Tray:
  • 2 x 2.5” SSD .

Component Clearance

• Maximum GPU Length: 392mm.
• Maximum CPU Cooler Height: 180.5mm.
• PSU Support Length: ATX (Under 220mm).

Expansion Slots

• Total Slots: 7 x PCIe expansion slots.

I/O Ports & RGB Controls

• Back Panel I/O:
  • 1 x Power Button
  • 1 x Reset Button
  • 2 x USB 3.0
  • 1 x USB Type-C
  • 1 x Audio Jack
  • Fan Rim Lighting Effect Color/Mode Buttons
  • Fan Blade Lighting Effect Color/Mode Buttons

Package Contents

• LANCOOL 216 RX BLACK Case
• 2 x 160mm ARGB Fans (front)
• 1 x 140mm PWM Fan (rear)
• 1 x Bottom Dust Filter
• 2 x M.2 Q-Latch Packages
• 2 x M.2 Rubber Packages
• 1 x Q-Connector
• 1 x ACC Express Activation Key Card
• 1 x Quick Start Guide

Additional Notes

• Operating System Requirement: Ensure OS is installed via HDMI port or discrete GPU during setup.
• Thunderbolt™ Limitations: Bandwidth for multi-monitor setups may be constrained by DisplayPort 2.1 (77.4 Gbit/s).
• RGB Cable Management: Verify motherboard compatibility for Addressable Gen2 headers .
