MSI MPG VELOX 100R White Mid-Tower PC Case — Supports E-ATX/ATX/Micro-ATX/Mini-ITX Motherboards, Tempered Glass Side Panel, 4x 120mm ARGB Fans Included, Up to 380mm GPU Length, 175mm CPU Cooler Height, USB 3.2 Gen 2x2 Type-C, ARGB Lighting

General Information

The MSI MPG VELOX 100R is a mid-tower PC case designed for high airflow , versatile hardware compatibility , and vivid ARGB lighting integration . It supports E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards , making it ideal for full-size builds with long GPUs and tall CPU coolers .

With 4 pre-installed 120mm ARGB fans , excellent cooling options , and modular SSD mounts , this case is well-suited for gaming rigs , content creation systems , and workstations that require efficient thermal management and stylish RGB lighting . The USB-C Gen 2x2 port offers modern connectivity for fast data transfer and device charging.

Case Design & Dimensions

• Dimensions:
  • Depth: 474 mm
  • Width: 231 mm
  • Height: 490 mm
  • Overall size: ~18.7 x 9.1 x 19.3 inches
• Weight:
  • Net weight: ~8.6 kg
  • Gross weight: ~10.3 kg
• Build Material:
  • Steel construction with tempered glass side panel for component visibility and RGB lighting showcase
  • Reinforced steel chassis for durability and stability

Motherboard Support

• Supported Form Factors:
  • E-ATX (up to 305 x 330 mm)
  • ATX
  • Micro-ATX
  • Mini-ITX
• Mounting Options:
  • Multiple mounting holes for secure motherboard installation
  • Spacious interior for large E-ATX boards and multiple expansion cards

Expansion Slots

• Number of Slots: 7 – supports multiple PCIe cards and add-on peripherals
• Compatibility:
  • Dual-slot GPUs and multi-GPU configurations supported
  • Suitable for high-end graphics cards and additional PCIe devices

GPU Support

• Maximum GPU Length: Up to 380 mm (15 inches) – accommodates long, high-end GPUs
• Fan Mounting:
  • Front: 3 x 120mm / 3 x 140mm
  • Top: 3 x 120mm / 2 x 140mm
  • Rear: 1 x 120mm
  • Side: 2 x 120mm / 2 x 140mm
• Cooling Flexibility:
  • Supports push-pull fan configurations
  • Includes pre-installed ARGB fans for customizable lighting and performance

CPU Cooler Support

• Max CPU Cooler Height: 175 mm (6.89 inches) – suitable for tall air coolers and AIO liquid coolers
• Clearance:
  • Ample space for large tower coolers
  • Compatible with 240mm AIO coolers and tall air coolers

Storage & Drive Bays

• Drive Bays:
  • 2 x 2.5" SSD bays
  • 2 x 3.5" HDD bays
• M.2 Support:
  • Multiple M.2 slots for NVMe SSDs
  • Modular SSD mounts for flexible storage configurations
• Radiator Support:
  • Front/Top: 120/140/240/280/360 mm
  • Rear: 120 mm
  • Side: 120/240 mm

Power Supply Support

• PSU Compatibility: Standard ATX power supplies
• Max PSU Length: 220 mm – fits most standard and modular PSUs
• PSU Placement: Bottom-mounted for optimized airflow and cable management
• Cable Management:
  • Internal cable routing channels for clean build
  • Spacious interior for easy installation

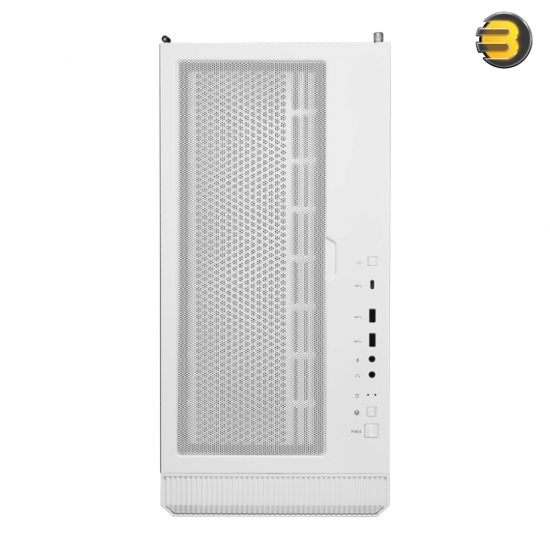

I/O Panel

• Ports:
  • 2 x USB 3.2 Gen 1 Type-A (5 Gbps)
  • 1 x USB 3.2 Gen 2x2 Type-C (20 Gbps) – fast data transfer and device charging
  • 1 x 3.5mm audio out
  • 1 x mic-in
  • 1 x LED switch button for lighting control
• USB-C Port:
  • 20 Gbps speed – ideal for external drives, displays, and peripherals
  • Supports USB 3.2 Gen 2x2 for high-speed data transfers

Cooling Features

• Pre-Installed Fans:
  • 4 x 120mm ARGB PWM fans (3 front, 1 rear)
  • Support for up to 10 total fans
• Fan Mounting Options:
  • Front, top, rear, and side – allows for custom fan setups
  • Magnetic dust filters on front and top for dust resistance
• Airflow Optimization:
  • Designed for balanced intake and exhaust
  • Efficient heat dissipation under heavy loads
• ARGB Fan Control:
  • Addressable Gen2 headers for lighting synchronization
  • Compatible with MSI Mystic Light software for RGB customization

Special Features

• Tempered Glass Side Panel:
  • 3mm thickness for sturdy build and showcase of internal components
• Modular SSD Mounts:
  • Allows for flexible SSD placement and easy access
• Cable Management:
  • Integrated cable routing and internal compartments
  • Neat and organized build
• Lighting Integration:
  • Fully integrated ARGB lighting
  • Syncs with MSI Mystic Light for immersive RGB effects
• Additional Cooling Options:
  • Support for radiators in multiple positions
  • Optimized for multi-fan configurations

Design & Build Quality

• Material:
  • Steel and plastic construction for durability and aesthetics
  • Reinforced steel chassis for rigidity and stability
• Panel Design:
  • Perforated front panel for maximum airflow
  • Tempered glass window for viewing internal components
• Cable Management:
  • Cable routing holes and internal compartments
  • Pre-mounted I/O shield for quick setup
• Weight:
  • 8.6 kg net – lightweight yet sturdy build
