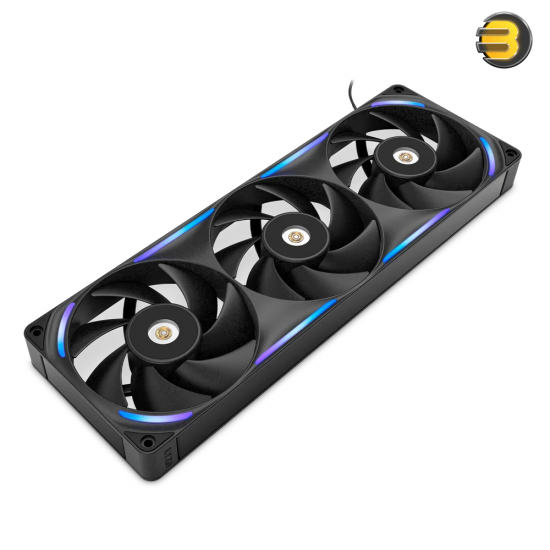

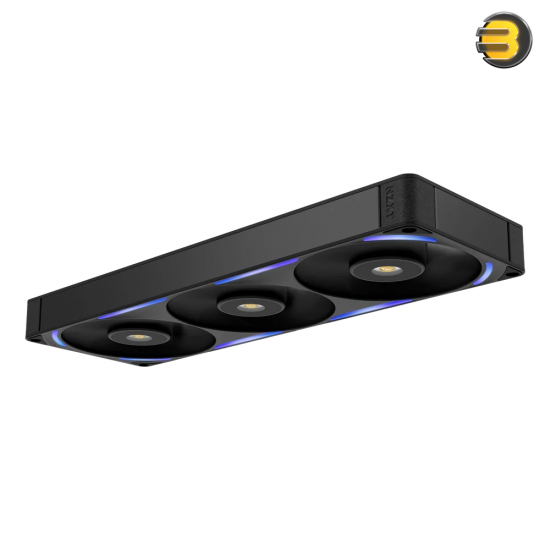

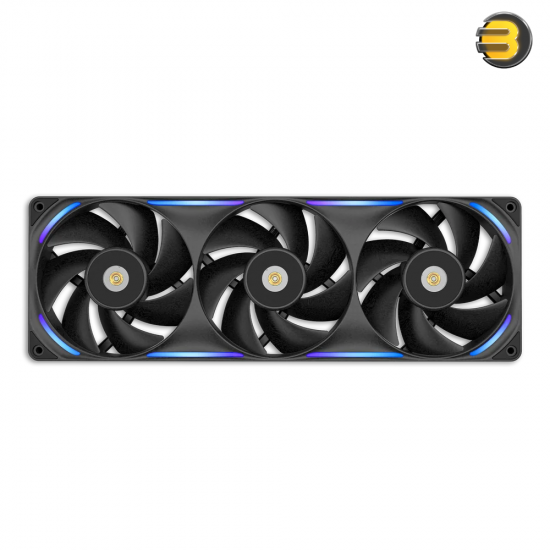

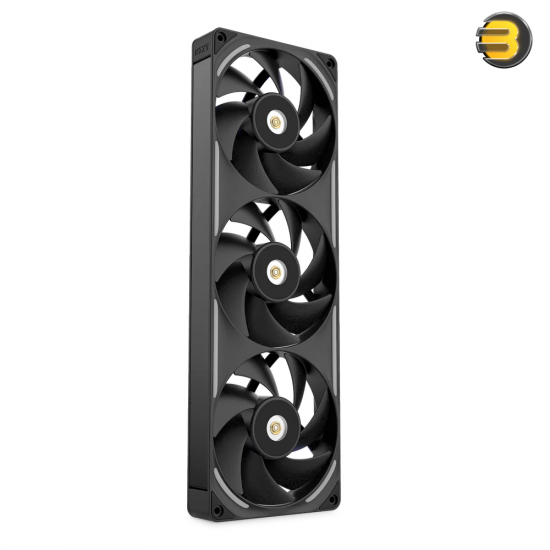

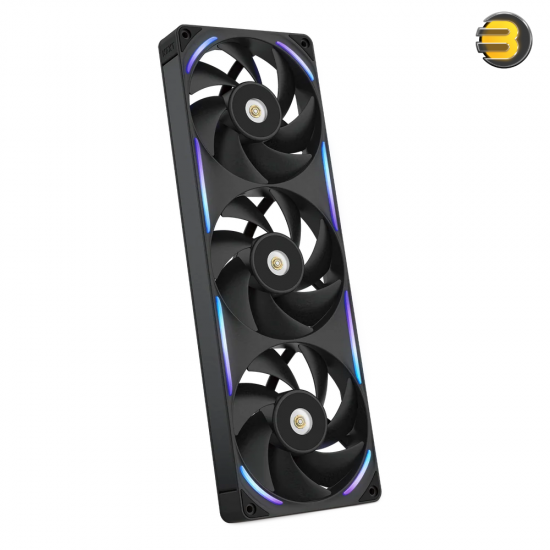

NZXT F360X 360mm Performance RGB Single-Frame Fan – 3100 RPM PWM, 104.0 CFM Airflow, 7.53 mmH₂O Static Pressure, Hybrid Bearing, 30mm Thick Profile, LCP Blades, 32 Accent LEDs & NZXT CAM Integration
- Stock: In Stock
- Model: F360X (360mm Performance RGB Single-Frame Fan)
- UPC: 810074846738
- MPN: RF-U36PN-B1
views 18
5,499 EGP
6,600 EGP
Shiping Information
Nationwide shipping across Egypt. Fees confirmed by phone before shipping.
Description
Core Identifiers & Build
- Brand / Series: NZXT F-Series Performance Single-Frame
- Model Name: F360X (360mm Performance RGB Single-Frame Fan)
- Model Number: RF-U36PN-B1 (Black)
- UPC / EAN Barcodes: 810074846738 / 5056547206677
- Color / Finish: Matte Black with Brushed Aluminum Side Accents
- Frame & Blade Material: Liquid-Crystal Polymer (LCP) blades, reinforced plastic frame, rubber damping, PCB
- Construction Highlights: Reinforced metal motor housing, LCP flex-resistant blades (prevents warping at extreme RPMs), and premium brushed aluminum side accents for a high-end aesthetic.
Dimensions & Weight
- Dimensions (L × W × H): 360 × 120 × 30 mm (Note: This is a thicker 30mm profile compared to standard 25/26mm fans, allowing for deeper blade curvature and massive static pressure)
- Weight: 750 g (1.61 lb) (Significantly heavier due to the metal motor housing and thick LCP materials)
Performance Specifications (Maximum Output)
- Fan Speed: 3,100 ± 310 RPM (PWM controlled)
- Airflow (Per Fan): 104.0 CFM (Extreme air volume for maximum heat exhaust)
- Static Pressure (Per Fan): 7.53 mmH₂O (Monster-level pressure, specifically engineered to push air through dense, thick liquid cooling radiators and restrictive dust filters)
- Max Noise Level (Per Fan): 41.0 dBA
Acoustically Optimized Profile (@ 30 dBA Limit)
(Performance metrics when capped at a quiet, comfortable noise level)
(Performance metrics when capped at a quiet, comfortable noise level)
- Fan Speed (@ 30 dBA): 2,300 RPM
- Airflow (@ 30 dBA): 75.5 CFM
- Static Pressure (@ 30 dBA): 4.02 mmH₂O (Still outperforms most standard fans' maximum output while remaining quiet)
Motor & Bearing Specs
- Bearing Type: Custom Hybrid (NZXT Magnetic Levitation Stabilizer + Fluid Dynamic Bearing) (Eliminates physical friction at high RPMs while maintaining the quietness of an FDB at low RPMs)
- Motor Design: 3-Phase, 6-Pole Motor (Reduces torque ripple and vibration for incredibly smooth operation)
- Lifespan: 60,000 Hours
- Number of Blades: 7 per fan section (Optimized for high static pressure)
Electrical & Power Ratings
- Rated Voltage: 12V DC (Fan Motor) / 5V DC (RGB Lighting)
- Rated Current: 1.1 A (Fan) / 0.52 A (RGB) (High current draw due to the extreme 3,100 RPM motor; ensure your fan hub or motherboard header can support the amperage)
- Input Power: 13.2 W (Fan) / 2.6 W (RGB)
- Power Connector: NZXT 8-pin combination connector (Routes both PWM and RGB signals through one unified cable)
- Cable Length: 1 × 600 mm
Lighting & Digital Control
- LED Type: Integrated RGB Accent Lighting (Subtle, premium illumination rather than blinding blade lighting)
- LED Quantity: 32 total LEDs across the single-frame unit
- Control Integration: Fully customizable via NZXT CAM software (requires NZXT Control Hub or compatible motherboard) or standard motherboard header connections via the included breakout cable.
