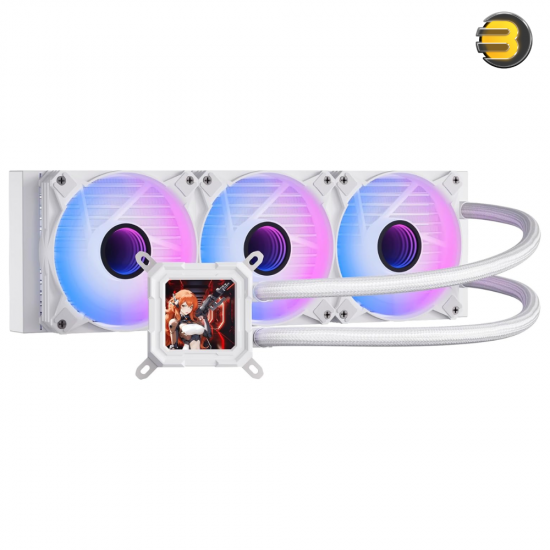

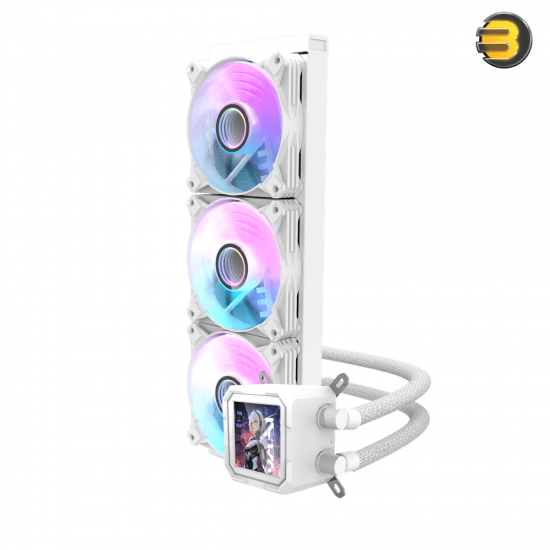

DarkFlash DV360S 360mm AIO Liquid CPU Cooler – 3.2'' LCD Display, 3x 120mm ARGB PWM Fans, 2700 RPM Pump, Compatible with Intel LGA 1700 & AMD AM5

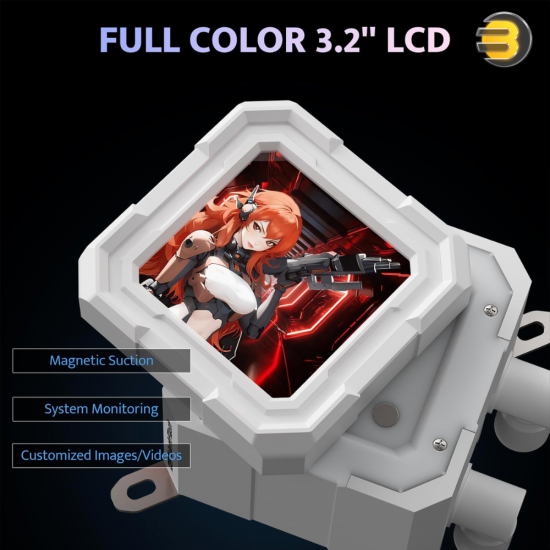

 LCD Display

• Screen Size: 3.2 inches
• Resolution: 320 × 320 pixels (square IPS panel)
• Functionality: Customizable via software (e.g., display system stats, GIFs, static images)

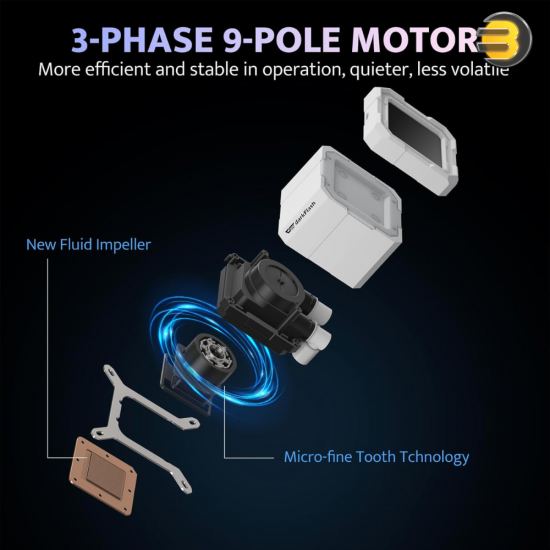

Cooling Unit & Pump

• Water Block Dimensions: 73.1 × 73.1 × 72.4 mm
• Pump Speed: 2700 ± 10% RPM (high-flow design for improved thermal performance)
• Pump Power:
  • Voltage: 12V
  • Start Voltage: ≥6V
  • Current: 0.6A
  • Power Consumption: 7.2W
• Tubing Length: 440 mm (flexible, reinforced rubber for easy routing)

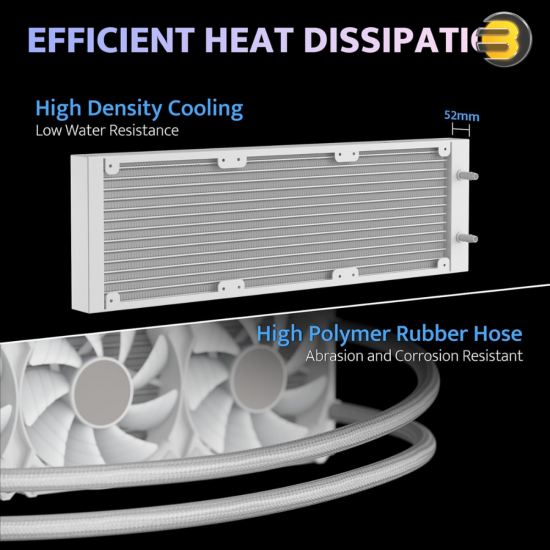

Radiator

• Dimensions: 395 × 120 × 27 mm (standard 360mm triple-fan radiator)
• Material: Aluminum fins + copper micro-channel cold plate

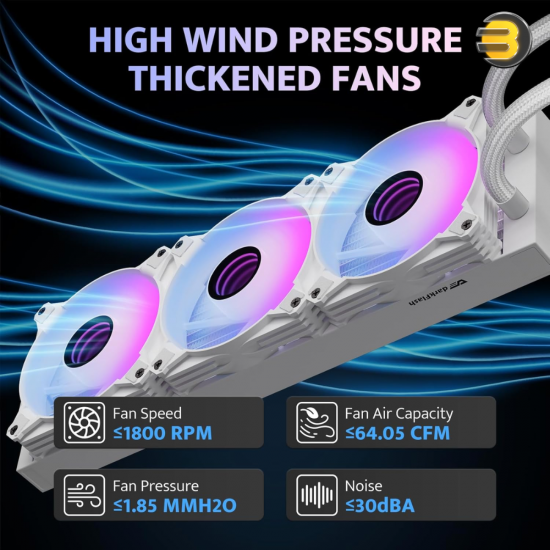

Fans (3x Included)

• Size: 120 × 120 × 25 mm
• Type: Hydraulic bearing (long lifespan, quiet operation)
• Speed: 800 – 1800 ± 10% RPM (PWM-controlled)
• Airflow: 64.05 CFM ±10%
• Static Pressure: 1.85 mm H₂O ±10%
• Noise Level: ≤30 dBA (very quiet at typical loads)
• Power:
  • Voltage: 12V
  • Start Voltage: ≥6V
  • Current: 0.65A per fan

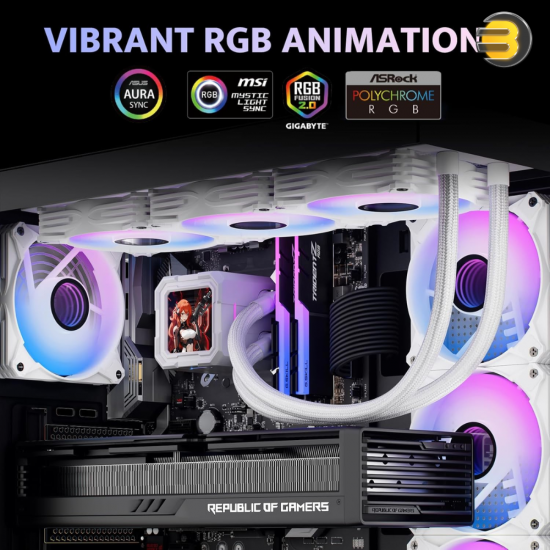

• Lighting: ARGB (addressable RGB, compatible with motherboard sync via 5V 3-pin header)

Socket Compatibility

Intel:

• LGA 1700, 115x (1150/1151/1155/1156), 1366, 2011, 2011-3, 2066

AMD:

• AM5, AM4, AM3(+), AM2(+), FM1, FM2(+)

Connectivity

• Pump Header: 4-pin PWM (recommended for CPU_FAN or AIO_PUMP)
• ARGB Header: 5V 3-pin (compatible with ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, ASRock Polychrome)
• Fan Headers: 4-pin PWM for each of the three radiator fans
