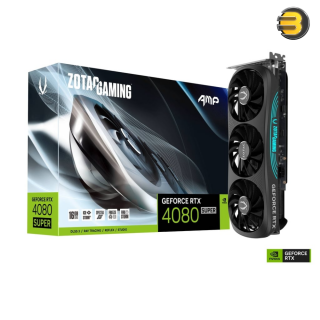

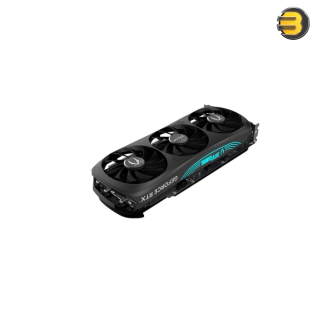

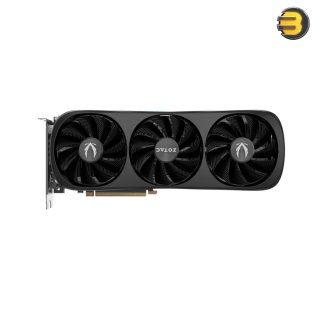

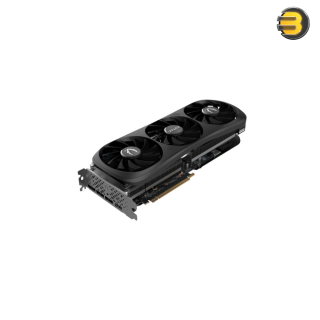

ZOTAC GAMING GeForce RTX 4080 SUPER AMP 16GB GDDR6X — NVIDIA DLSS 3.5, IceStorm 2.0, FREEZE Fan Stop, Active Fan Control, SPECTRA RGB - ZT-D40820F-10P

General Specifications

• CUDA Cores: 10240

• Video Memory: 16GB GDDR6X

• Memory Bus: 256-bit

• Engine Clock: Boost Clock: Up to 2610 MHz

• Memory Clock: 23 Gbps

• Interface: PCI Express 4.0 16x

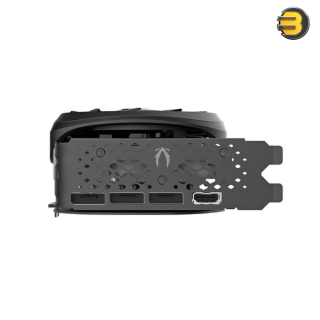

Display Outputs

• 3x DisplayPort 1.4a: up to 7680x4320@60Hz

• 1x HDMI® Connector:

  • Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1a Specification

HDCP Support

• Version: 2.3

Multi Display Capability

• Quad Display: Yes

Power

• Recommended Power Supply: 750W

• Power Consumption: 320W

• Power Input: 1 x 12VHPWR

Supported APIs

• DirectX: 12 Ultimate

• OpenGL: 4.6

Cooling

• Cooling Technology: IceStorm 2.0

Slot Size

• Size: 2.5 slot

SLI

• Support: N/A

Supported Operating Systems

• Windows 11 / 10: (64-bit, v1809 November 2018 or later)

Dimensions

• Card Length: 307.7 mm x 125.2 mm x 58.5 mm / 12.1" x 4.9" x 2.3"

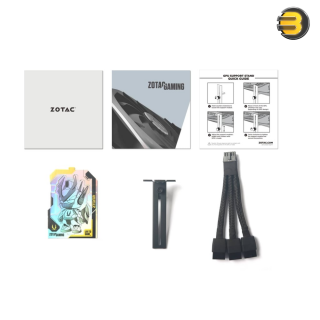

Accessories

• GPU Support Stand

• 3x 8-pin-to-12VHPWR cable

• Manual
