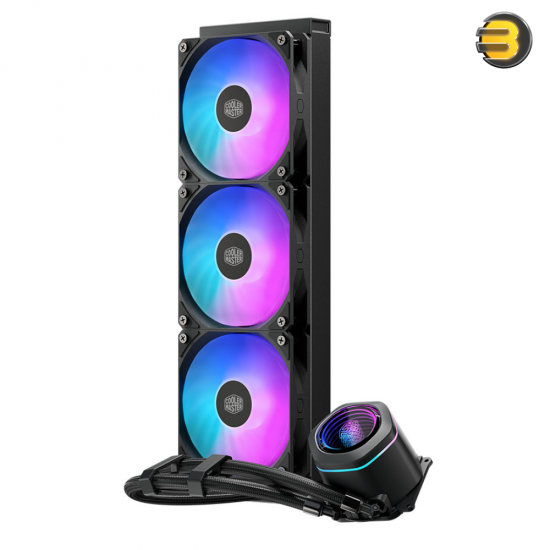

COOLER MASTER MASTERLIQUID CORE NEX 360 ARGB LIQUID CPU COOLER WITH ALUMINUM RADIATOR AND ADDRESSABLE RGB FANS

• MLX-D36M-A18PA-R1

Design & Build

• Aesthetics: Available in sleek Black or pristine White colorways to match any build theme
• Lighting: Addressable RGB (ARGB) illumination on both the pump block and fans for vibrant, customizable lighting effects and seamless motherboard synchronization
• Tubing: 400 mm (15.7 inches) of reinforced, flexible tubing for easy routing and versatile installation

Cooling Performance (Radiator & Pump)

• Radiator Material: High-quality Aluminum
• Radiator Dimensions:
  • 394 × 119.6 × 27.2 mm (15.5 × 4.7 × 1.1 inch)
• Pump Dimensions: 83.6 × 78.5 × 62.9 mm (3.3 × 3.1 × 2.5 inch)
• Pump Speed: 2800 ±10% RPM
• Pump Noise Level: 25 dB(A) (Max)
• Pump Lifespan (MTTF): >35,000 Hours
• Pump Power Consumption: 7.2 W
• Pump Connector: 3-Pin ARGB + 4-Pin PWM

Fan Performance

• Fan Dimensions: 120 × 120 × 25 mm (4.7 × 4.7 × 1 inch)
• Fan Quantity:  3×
• Fan Speed: 650 – 1750 RPM ±10% (PWM controlled for dynamic noise/performance balancing)
• Maximum Airflow: 71.9 CFM (122.4 m³/h)
• Maximum Static Pressure: 1.86 mmH₂O
• Noise Level: 27.2 dB(A) (Max)
• Bearing Type: Rifle Bearing for quiet operation and extended longevity
• Lifespan (MTTF): >40,000 Hours
• Fan Power Consumption: 3.12 W (per fan)
• Fan Connector: 7-Pin PWM + ARGB (Daisy-chain capable for reduced cable clutter)

Socket Compatibility

• Intel: LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156
• AMD: AM5 / AM4
