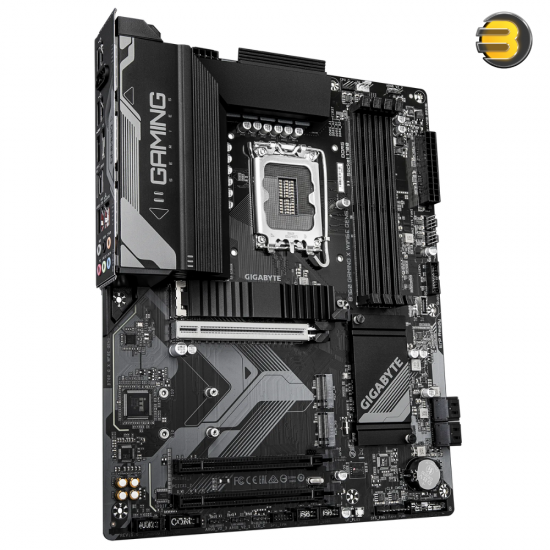

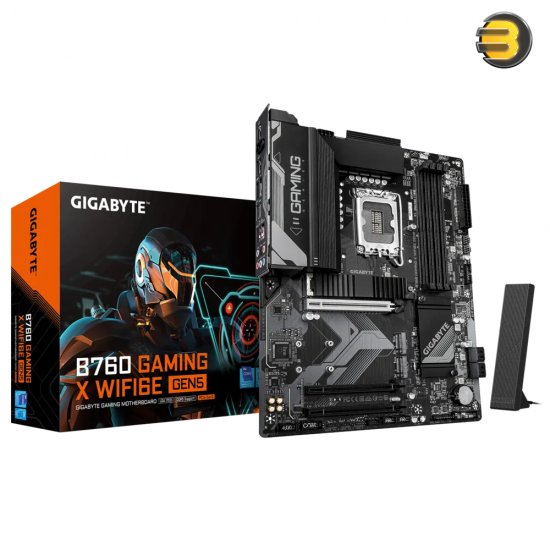

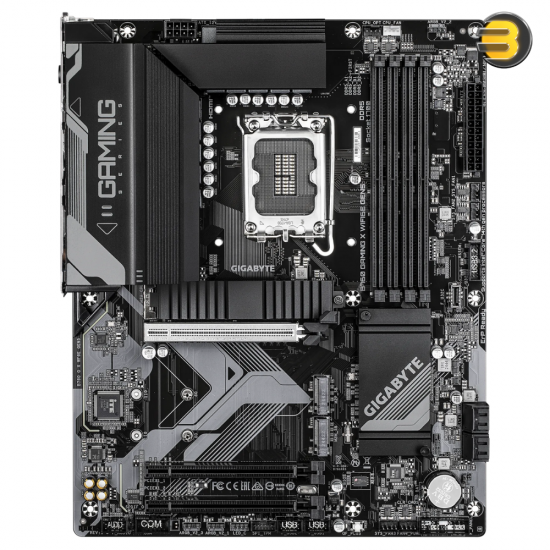

GIGABYTE B760 GAMING X WIFI6E GEN5 ATX Motherboard – Intel LGA 1700 Socket, Dual Channel DDR5 Support, PCIe 5.0, NVMe M.2, USB 3.2 Gen2x2, HDMI, Wi-Fi 6E & 2.5GbE LAN, High-Performance Design for 12th/13th/14th Gen Intel Processors

General Information

• Form Factor: ATX (30.5cm x 24.4cm)
• Chipset: Intel® B760 Express Chipset
• CPU Support: LGA1700 socket, supporting:
  • 14th, 13th, and 12th Generation Intel® Core™ processors
  • Pentium® Gold and Celeron® processors
  • (Refer to GIGABYTE's website for the latest CPU support list)

Memory

• Slots: 4 x DDR5 DIMM sockets
• Capacity: Up to 256 GB (64 GB per DIMM)
• Supported Speeds: DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s
• Architecture: Dual channel memory architecture
• Modules Supported:
  • ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode)
  • Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
  • Extreme Memory Profile (XMP) memory modules

Onboard Graphics

• Processor: Intel® HD Graphics
• DisplayPort: 1 x, max 4096x2304@60 Hz (DP 1.2, HDCP 2.3)
• HDMI: 1 x, max 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3)
• Notes: Actual support may vary by CPU

Audio

• Codec: Realtek® Audio CODEC
• Channels: 2/4/5.1/7.1-channel
• Features: S/PDIF Out support, configurable audio jack functionality for 7.1-channel

LAN

• Chip: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless: Intel® Wi-Fi 6E AX210
  • WiFi a, b, g, n, ac, ax, dual-band (2.4/5/6 GHz)
  • Bluetooth 5.3
  • Supports 11ax 160MHz wireless standard
  • Actual data rate varies by environment and equipment

Expansion Slots

• CPU Slot: 1 x PCIe x16 slot (PCIEX16), PCIe 5.0 x16
  • Can support graphics card or NVMe SSD
• Chipset Slots:
  • 2 x PCIe x16 slots (PCIEX1_1, PCIEX1_2), PCIe 3.0 x1

Storage Interfaces

• CPU M.2: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
• Chipset M.2: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
• SATA: 4 x SATA 6Gb/s connectors
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 10 for SATA storage devices

USB

• Chipset:
  • 1 x USB Type-C® port (USB 3.2 Gen 2) via internal header
  • 1 x USB 3.2 Gen 2 Type-A port (red) on back panel
  • 1 x USB Type-C® port on back panel (USB 3.2 Gen 1)
  • 3 x USB 3.2 Gen 1 ports (1 back panel, 2 via internal headers)
  • 1 x USB 2.0/1.1 port on back panel
• Chipset + 2 USB 2.0 Hubs:
  • 8 x USB 2.0/1.1 ports (4 back panel, 4 via internal headers)

Internal I/O Connectors

• Power: 1 x 24-pin ATX, 1 x 8-pin 12V
• Fan Headers: 1 x CPU, 1 x CPU fan/water cooling pump, 3 x system, 1 x system fan/water cooling pump
• LED Headers: 3 x addressable RGB Gen2, 1 x RGB LED
• Storage: 3 x M.2 Socket 3, 4 x SATA 6Gb/s
• Front Panel: 1 x header, 1 x audio header
• Audio: 1 x S/PDIF Out header
• USB Headers: 1 x USB Type-C (3.2 Gen 2), 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1
• Other: TPM (GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2), serial port, Q-Flash Plus button, reset jumper, Clear CMOS jumper

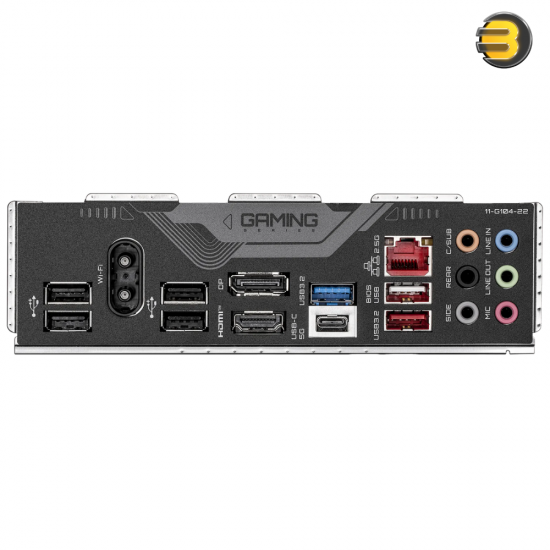

Back Panel Connectors

• USB: 1 x USB 3.2 Gen 2 Type-A (red), 1 x USB Type-C (3.2 Gen 1), 1 x USB 3.2 Gen 1, 5 x USB 2.0/1.1
• Video: 1 x DisplayPort, 1 x HDMI
• Network: 1 x RJ-45 port
• Audio: 6 x audio jacks
• Wireless: 2 x antenna connectors (2T2R)

I/O Controller

• Chip: iTE® I/O Controller Chip

Hardware Monitoring

• Voltage, Temperature, Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control (dependent on installed fan/pump)

BIOS

• Flash: 1 x 256 Mbit
• Type: Licensed AMI UEFI BIOS
• Standards: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• GIGABYTE Control Center (GCC): Includes applications like Q-Flash, Q-Flash Plus, Smart Backup
• Q-Flash & Q-Flash Plus Support
• Smart Backup Support

Bundled Software

• Norton® Internet Security (OEM version)

Operating Systems

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit
