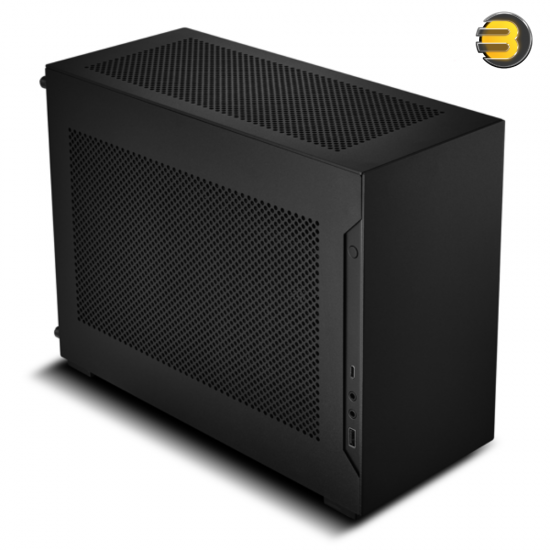

Lian Li A4-H2O – 11L SFF Case, DAN Cases Collaboration, AIO Water Cooling Ready, Simplified Installation

General Information

• Case Type: Mini ITX Tower (Small Form Factor)
• Material:
  • Exterior: Aluminum (anodized black finish).
  • Interior: SPCC Steel (durable and lightweight).
• Form Factor: Mini-ITX (M-ITX) only.
• Warranty: 1 year limited hardware warranty.

Physical Dimensions

• Dimensions (Depth x Width x Height): 326mm x 140mm x 244mm
• Capacity: 11 liters (ultra-compact for space-constrained builds).

Motherboard & Component Compatibility

• Supported Motherboards: Mini-ITX.
• Maximum GPU Length: 322mm (shorter than full-sized GPUs; ideal for compact builds).
• CPU Cooler Clearance: 55mm (limited to low-profile coolers or AIO liquid coolers).
• PSU Support:
  • SFX / SFX-L (max 220mm length).
  • No ATX PSU compatibility.

Cooling & Fan Support

• Radiator Support:
  • Top: 1 x 240mm (total thickness including fans must be ≤55mm).
• Fan Support:
  • Top: 2 x 120mm fans (for airflow and cooling).
• Thermal Management:
  • Limited by compact design; ensure efficient airflow planning.

Expansion & Storage

• Expansion Slots: 3 PCIe slots (limited for add-on cards).
• Drive Support:

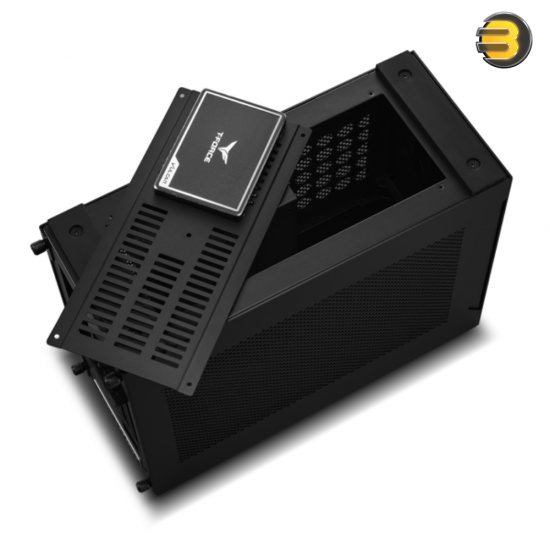

  • 1 x 2.5” SSD slot (no 3.5” HDD or additional drive bays).

I/O Ports

• Front Panel I/O:
  • 1 x USB 3.0 Type-A
  • 1 x USB 3.1 Type-C (supports faster data transfer).
  • 1 x Microphone Jack
  • 1 x HD Audio Jack

Included Accessories

• PCIe 4.0 Riser Cable (for connecting add-in cards to Mini-ITX motherboards).
• SATA 6Gb/s Cables (if included).
• Quick Start Guide
• Dust Filters (if specified).
