ZOTAC GAMING Docking Station — Compact Foldable Aluminum Design, USB-C Main Connection, 7-in-1 Ports including 1x USB 3.2 Gen 2 Type-C, 1x USB 3.0 Type-A, 1x USB 3.2 Gen 2 Type-C Output, HDMI 4K@60Hz Video Output, RJ45 Gigabit Ethernet, M.2 NVMe PCIe Gen

General Information

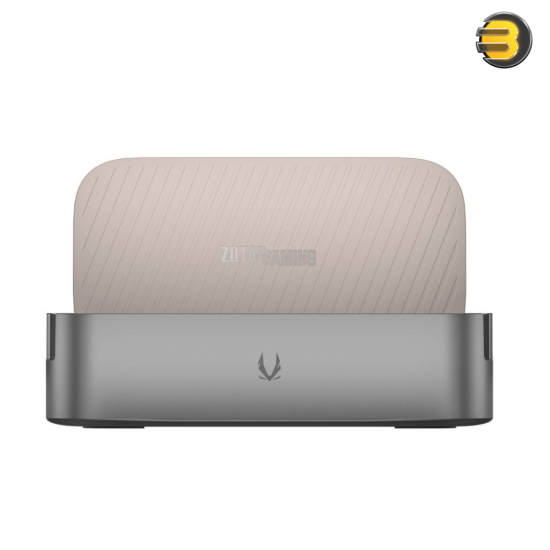

The ZOTAC GAMING Docking Station (ZGC-A1DS-01) is a highly portable, foldable docking station designed to transform handheld gaming consoles, phones, tablets, and laptops into a desktop-like setup. It features USB-C connectivity, 4K HDMI output, Gigabit Ethernet, and an M.2 NVMe SSD slot, making it ideal for gaming on the go, remote work, and productivity.

With 90W Power Delivery, aluminum construction, and compact size, this dock delivers maximum functionality in minimal space.

Connectivity & Ports

• Main Connection:
  • 1 x USB-C (Host) – connects to your device via USB-C
• Output & Expansion Ports:
  • 1 x USB 3.2 Gen 2 Type-C (Downstream) – supports up to 10 Gbps data transfer
  • 1 x USB 3.0 Type-A (Downstream) – supports up to 5 Gbps
  • 1 x HDMI 2.0 – supports 4K@60Hz resolution with HDR
  • 1 x RJ45 Gigabit Ethernet Port – wired network connection at 1 Gbps
  • 1 x M.2 NVMe PCIe Gen 3 x2 SSD Slot – expandable storage (supports 2230/2242/2260/2280 sizes)
• Power Delivery:
  • Up to 90W PD – charges compatible devices (e.g., laptops, handhelds) while connected
  • Supports USB Power Delivery 3.0

Storage & Performance

• M.2 SSD Support:
  • PCIe Gen 3 x2 – up to 1,900 MB/s read speed (theoretical)
  • Supports NVMe SSDs (2230/2242/2260/2280)
  • Includes silicone SSD standoff and thermal pad for heat dissipation
• Performance Notes:
  • Ideal for fast boot drives, game installations, or portable OS storage
  • Not recommended for high-end gaming SSDs due to PCIe x2 limitation

Compatibility

• Operating Systems:
  • Windows 10 / 11 (64-bit)
  • macOS 10.x or later
  • Linux (Kernel 5.10+)
  • Android (17 or later)
  • iOS/iPadOS 17 or later
• Device Compatibility:
  • Handheld gaming consoles (e.g., Steam Deck, Lenovo Legion Go)
  • Phones, tablets, and laptops with USB-C
  • Devices supporting USB-C Alternate Mode (DP, PD)

Physical Design & Dimensions

• Dimensions: 128 x 79.1 x 33.7 mm (5.0" x 3.1" x 1.3")
• Weight: ~220 g (7.8 oz)
• Foldable Design:
  • Hinged lid protects ports when not in use
  • Compact carry case included for travel
• Materials:
  • Aluminum body – durable and heat-dissipating
  • ABS plastic – lightweight and impact-resistant
