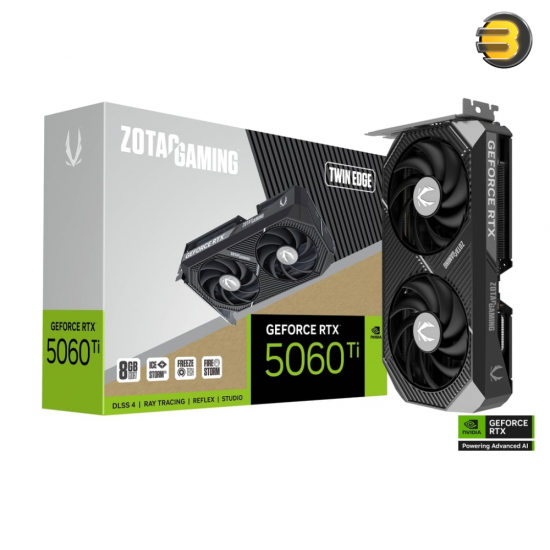

ZOTAC GAMING GeForce RTX 5060 Ti Twin Edge 8GB GDDR6 128-bit Memory at 18 Gbps Graphics Card — NVIDIA Blackwell Architecture, 4608 CUDA Cores, Boost Clock ~2565 MHz, PCIe 5.0 x8, Dual-Fan Cooling, 3x DisplayPort 2.1b, 1x HDMI 2.1, Compact Dual-Slot Design

General Information

The ZOTAC GAMING GeForce RTX 5060 Ti Twin Edge is a high-performance, compact graphics card based on NVIDIA’s Blackwell architecture, designed for 1080p and 1440p gaming, content creation, and AI-accelerated workloads. It features 8GB GDDR6 VRAM, PCIe 5.0 x8 support, and DLSS 4, making it ideal for small form factor (SFF) and mini-ITX builds.

With a dual-fan IceStorm 2.0 cooling system, FireStorm utility, and compact dual-slot design, this card delivers strong performance with efficient thermal management, making it suitable for space-constrained systems.

GPU & Performance

• Architecture: NVIDIA Blackwell – supports DLSS 4, ray tracing, and Tensor Cores Gen 5
• CUDA Cores: 4608 – high throughput for gaming, rendering, and AI processing
• Boost Clock: 2565 MHz – factory overclocked for maximum frame rates
• TDP (Thermal Design Power): ~160–180W – efficient power draw for compact builds
• DLSS 4 Support: Yes – AI upscaling with multi-frame generation for higher frame rates
• Ray Tracing: 4th Gen RT Cores – enhances realism in supported games
• Tensor Cores: 5th Gen – improves AI features like NVIDIA Broadcast and AI upscaling

Memory & Bandwidth

• VRAM: 8GB GDDR6 – ideal for 1080p gaming, texture-heavy applications, and AI workloads
• Memory Interface: 128-bit bus – provides high bandwidth for data-intensive tasks
• Effective Memory Speed: 18 Gbps – fast data transfer for smooth gameplay and rendering
• Bandwidth: Up to 288 GB/s (calculated from 18 Gbps * 128-bit bus)
• Memory Type: GDDR6 – latest generation with higher efficiency and lower latency

Cooling System

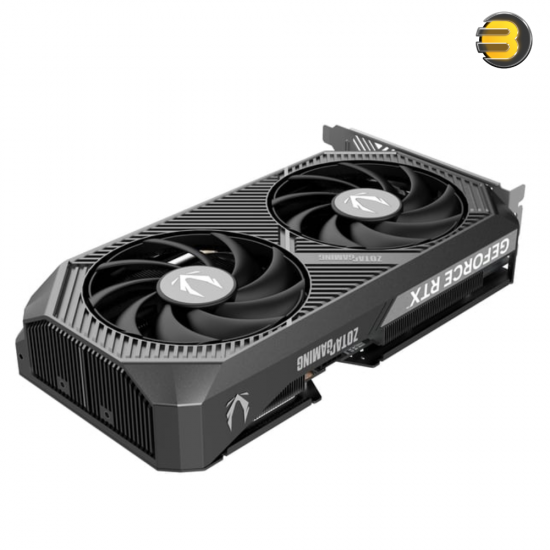

• Cooling Solution: Dual-fan IceStorm 2.0 cooling system with optimized blade fans and extended heat pipes
• Fan Control:
  • Smart fan curve via ZOTAC FireStorm utility
  • Freeze Fan Stop – fans stop at low temperatures for silent idle operation
• Heatsink: Large aluminum heatsink with heat pipe array for efficient heat dissipation
• Backplate: Reinforced metal backplate for structural rigidity and passive cooling

Display Outputs & Resolution Support

• Video Outputs:
  • 3 x DisplayPort 2.1b – supports 8K@60Hz (DSC mode) and HDR
  • 1 x HDMI 2.1 – enables 8K@60Hz HDR, 4K@120Hz HDR, and Variable Refresh Rate
• Max Simultaneous Displays: Supports up to 4 monitors
• Max Resolution:
  • 7680 x 4320 (8K UHD) via HDMI or DisplayPort
  • Supports 8K@60Hz (DSC mode) with verified cables
• HDR Support: Yes – for enhanced color depth and contrast
• G-Sync Compatibility: Yes – eliminates screen tearing
• Multi-Monitor Setup: Ideal for immersive gaming, productivity, and content creation
• Thunderbolt™ 5 Compatibility:
  • If used via Thunderbolt™ 5, bandwidth is limited by **DisplayPort™ 2.1 (up to 77.4 Gbit/s). Chain monitors using verified Thunderbolt™ cables for best results

Connectivity & Power

• PCIe Interface: PCIe 5.0 x8 – backward compatible with PCIe 4.0 and 3.0
• Power Connectors:
  • 1 x 8-pin PCIe power connector – standard for mid-range GPUs
  • Supports up to 180W – ensures stable power delivery
• Recommended PSU: 600W – ensure sufficient headroom for AIO cooling and pump units if used
• Cable Management:
  • Modular power cable included for clean build

Physical Dimensions & Installation

• Length: 220.5 mm – fits most mini-ITX cases
• Width: 118.5 mm – compact for most mid-sized cases
• Height: 41.6 mm – slim for most mid-sized cases
• Weight:
  • Card: ~700 g
  • Package: ~980 g
• Mounting: Standard dual-slot bracket with secure screw mounting
• Included Accessories:
  • ZOTAC FireStorm cooler module
  • 8-pin power cable
  • Quick installation guide
