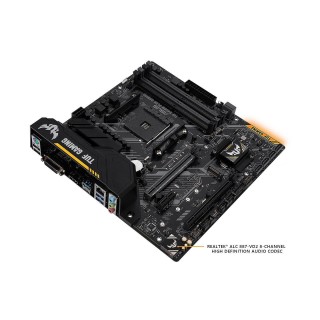

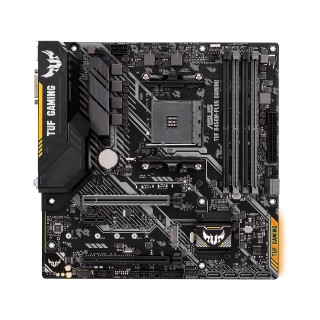

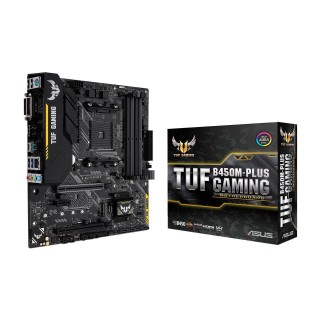

ASUS B450 TUF B450M-PLUS GAMING AM4 AMD

ASUS B450 TUF B450M-PLUS GAMING AM4 AMD
ASUS B450 TUF B450M-PLUS GAMING AM4 AMD
ASUS B450 TUF B450M-PLUS GAMING AM4 AMD
ASUS B450 TUF B450M-PLUS GAMING AM4 AMD
ASUS B450 TUF B450M-PLUS GAMING AM4 AMD
ASUS B450 TUF B450M-PLUS GAMING AM4 AMD
ASUS B450 TUF B450M-PLUS GAMING AM4 AMD
Out Of Stock
ASUS B450 TUF B450M-PLUS GAMING AM4 AMD
ASUS B450 TUF B450M-PLUS GAMING AM4 AMD
ASUS B450 TUF B450M-PLUS GAMING AM4 AMD
ASUS B450 TUF B450M-PLUS GAMING AM4 AMD
ASUS B450 TUF B450M-PLUS GAMING AM4 AMD
ASUS B450 TUF B450M-PLUS GAMING AM4 AMD
ASUS B450 TUF B450M-PLUS GAMING AM4 AMD
ASUS B450 TUF B450M-PLUS GAMING AM4 AMD
6,500 EGP
Ex Tax: 6,500 EGP
  • Stock: Out Of Stock
  • Model: B450M-PLUS GAMING
Brand
ASUS
Series
TUF
Model
B450M-PLUS GAMING

Supported CPU

CPU Socket Type
AM4
CPU Type
AMD AM4 Socket AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation Processors
Supports CPU up to 8 cores*
* Due to CPU limitation, CPU cores supported varies by processor.
** Refer to www.asus.com for the AMD CPU support list.

Chipsets

Chipset
AMD B450

Memory

Number of Memory Slots
4×288pin
Memory Standard
DDR4 3200(O.C)/ 3000(O.C)/ 2800(O.C)/ 2666/ 2400/ 2133
* Refer to www.asus.com for the Memory QVL (Qualified Vendors List).
Maximum Memory Supported
64GB
Channel Supported
Dual Channel

Expansion Slots

PCI Express 3.0 x16
AMD Ryzen 2nd Generation / Ryzen 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen with Radeon Vega Graphics Processor
1 x PCIe 3.0/2.0 x16 (x8 mode)
PCI Express 2.0 x16
1 x PCI Express 2.0 x16 slots (max. at x4 mode)
PCI Express x1
1 x PCI Express 2.0 x1 slot

Storage Devices

SATA 6Gb/s
AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation Processors:
2 x SATA 6Gb/s port(s)

AMD B450 chipset:
4 x SATA 6Gb/s port(s)
M.2
1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support*
* When a M.2 device is installed, the SATA6G_5/6 ports do not operate
SATA RAID
0/1/10

Onboard Video

Onboard Video Chipset
Integrated Graphics in the AMD Ryzen with Radeon Vega Graphics Processors
Multi-VGA output support: HDMI, DVI-D ports
- Supports HDMI 2.0b with max. resolution 4096x2160@60Hz
- Supports DVI-D with max. resolution up to 1920x1200@60Hz

Onboard Audio

Audio Chipset
Realtek ALC887-VD2
Audio Channels
8 Channels
* Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

Onboard LAN

LAN Chipset
Realtek RTL8111H
Max LAN Speed
10/100/1000Mbps

Rear Panel Ports

PS/2
1 x PS/2 keyboard/mouse port
Video Ports
1 x DVI-D port
HDMI
1 x HDMI
RJ45
1 x RJ45
USB 3.1
1 x USB 3.1 Gen 2 Type-A
1 x USB 3.1 Gen 1 USB Type-C
2 x USB 3.1 Gen 1 (blue)
USB 1.1/2.0
2 x USB 2.0
Audio Ports
3 Ports

Internal I/O Connectors

Onboard USB
1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors
1 x Aura RGB Strip Header
1 x CPU Fan connector(s) (1 x 4-pin)
2 x Chassis Fan connector(s) (2 x 4-pin)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header

Physical Spec

Form Factor
Micro ATX
LED Lighting
RGB
Dimensions (W x L)
9.6" x 9.6"
Power Pin
1 x 24-pin EATX Power connector
1 x 8-pin ATX 12V Power connector

Features

Features
Multi-GPU Support:
Supports AMD CrossFireX Technology

Special Features:
ASUS TUF PROTECTION
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
AURA:
- Aura Lighting Control
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- PC Cleaner
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 2+
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM

BIOS:
128MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS User Profile, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control, F4 AURA ON/OFF, F9 Search

Manageability:
WOL by PME, PXE

Operating System:
Windows 10 64-bit

Packaging

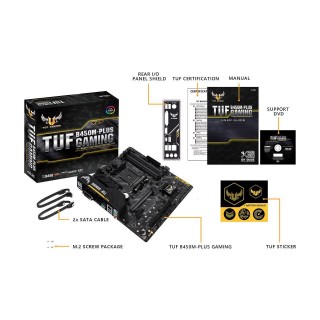

Package Contents
Accessories:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x TUF GAMING Sticker
1 x TUF Certification card(s)
