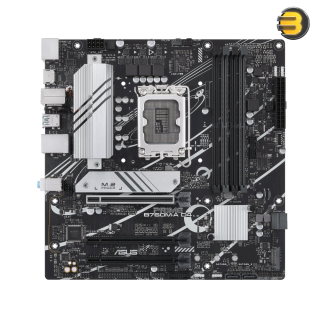

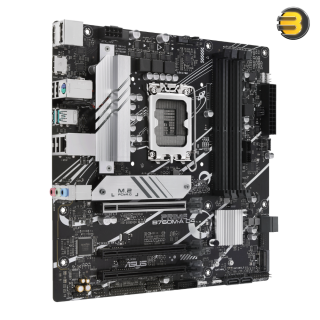

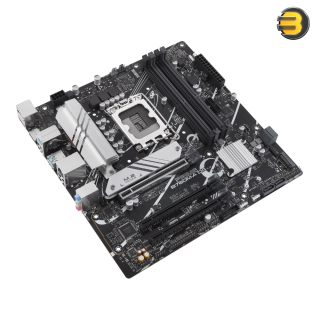

Asus PRIME B760M-A D4-CSM — PCIe 4.0, 2x M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Aura Sync

Chipset

• Intel® B760 Chipset

Memory

• Supported Slots: 4 x DIMM, Max. 128GB
• Memory Types: DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
• Features:
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
  • Note: Supported memory types, data rate (Speed), and number of DRAM modules vary depending on the CPU and memory configuration.

Graphics

• DisplayPort: 1 x DisplayPort (supports max. 4K@60Hz as specified in DisplayPort 1.4)
• HDMI: 2 x HDMI® ports (supports 4K@60Hz as specified in HDMI® 2.1)
• Graphics specifications may vary between CPU types.

Expansion Slots

• Intel® Core™ Processors (14th & 13th & 12th Gen):
  • 1 x PCIe 4.0 x16 slot
• Intel® B760 Chipset:
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 1 x PCIe 4.0 x16 slot (supports x1 mode)
• Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

• M.2 Slots: Total 2 x M.2 slots
• SATA Ports: 4 x SATA 6Gb/s ports
• Intel® Core™ Processors (14th & 13th & 12th Gen):
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• Intel® B760 Chipset:
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

• 1 x Realtek 2.5Gb Ethernet

USB

• Rear USB (Total 6 ports):
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 10 ports):
  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • 1 x USB 2.0 header supports 1 additional USB 2.0 port

Audio

• Codec: Realtek 7.1 Surround Sound High Definition Audio CODEC
• Features:
  • Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers
  • Note: A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

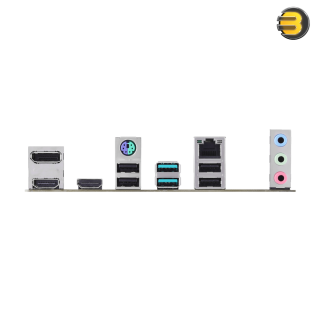

Back Panel I/O Ports

• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 2 x HDMI® ports
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

• Fan and Cooling:
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 2 x 4-pin Chassis Fan headers
• Power:
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
• Storage:
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB:
  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • 1 x USB 2.0 header supports 1 additional USB 2.0 port
• Miscellaneous:
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x LPT header
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis intrude function

Special Features

• ASUS 5X PROTECTION III:
  • DIGI+ VRM
  • LANGuard
  • Overvoltage Protection
  • SafeSlot Core+
  • Stainless-Steel Back I/O
• ASUS Q-Design:
  • Q-DIMM
  • Q-LED Core
  • Q-Slot
• ASUS Thermal Solution:
  • M.2 heatsink
  • VRM heatsink design
• ASUS EZ DIY:
  • ProCool
• Aura Sync:
  • Aura RGB header
  • Addressable Gen 2 headers

Software Features

• ASUS Exclusive Software:
  • Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving)
  • AI Suite 3 (Digi+ VRM, PC Cleaner)
  • ASUS CPU-Z
  • Norton Deluxe (60 Days Free Trial)
  • WinRAR
• UEFI BIOS:
  • ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode)

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

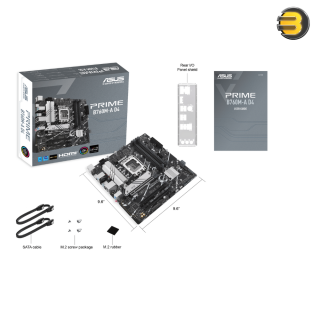

Accessories

• Cables:
  • 2 x SATA 6Gb/s cables
• Miscellaneous:
  • 1 x I/O Shield
  • 1 x M.2 Rubber Package
  • 1 x Screw package for M.2 SSD
• Documentation:
  • 1 x ACC Express Activation Key Card
  • 1 x User guide

Operating System

• Windows® 11, Windows® 10 64-bit

Form Factor

• mATX Form Factor: 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
