ASUS PRIME B860M-A WIFI-CSM Micro-ATX Motherboard – Intel LGA1851, Core Ultra Series 2 Support, 4× DDR5 DIMMs, Up to 8666+ MT/s, PCIe 5.0 x16, Dual M.2 (PCIe 5.0/4.0), Wi-Fi 6E, 2.5GbE LAN, Thunderbolt Header, Q-Design Suite & 5X Protection III
  • Stock: In Stock
  • Model: PRIME B860M-A WIFI-CSM
  • MPN: 90MB1PN0-M0EAY0
1 Asus
views 105
0 reviews - Write a review
7,250 EGP
Add to Cart
Shiping Information
Nationwide shipping across Egypt. Fees confirmed by phone before shipping.

Description

Model Name
PRIME B860M-A WIFI-CSM
Form Factor
Micro-ATX (24.4 cm × 24.4 cm / 9.6 inch × 9.6 inch)
Processor & Chipset Specifications
  • CPU Socket: Intel® LGA1851
  • CPU Support: Intel® Core™ Ultra Processors (Series 2)
  • Chipset: Intel® B860 Chipset
  • CPU Technologies: Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 (depending on CPU type)
Memory Specifications
  • Slots: 4 × DIMM Slots
  • Maximum Capacity: Up to 256 GB
  • Memory Type: DDR5 (Dual-channel architecture)
  • Supported Speeds: Up to 8666+ MT/s (O.C.)
  • Memory Features:
    • Supports CUDIMM (Clocked Unbuffered DIMM) for extreme stability at high speeds
    • Intel® Extreme Memory Profile (XMP) support
    • ASUS Enhanced Memory Profile III (AEMP III)
    • ASUS DIMM Fit for optimized memory compatibility
    • On-Die ECC function support (via Non-ECC un-buffered DDR5)
Expansion & Storage Specifications
  • PCIe Slots:
    • 1 × PCIe 5.0 x16 slot (via CPU, for next-gen graphics cards)
    • 1 × PCIe 4.0 x16 slot (supports x4 mode, via Chipset)
    • 1 × PCIe 4.0 x1 slot (via Chipset)
  • M.2 Slots: 2 × M.2 Slots Total
    • M.2_1: Type 2242/2260/2280 (Supports PCIe 5.0 x4 mode via CPU)
    • M.2_2: Type 2242/2260/2280 (Supports PCIe 4.0 x4 mode via Chipset)
  • SATA Ports: 4 × SATA 6Gb/s ports
  • RAID Support: Intel® Rapid Storage Technology (SATA RAID 0, 1, 5, 10)
Connectivity & I/O Ports

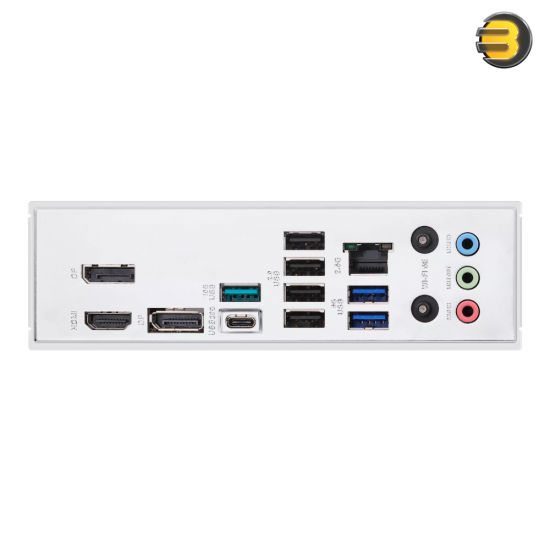

  • Rear I/O Ports (8 Total):
    • 1 × USB 20Gbps Type-C® port (with DisplayPort™ Alt Mode)
    • 1 × USB 10Gbps Type-A port
    • 2 × USB 5Gbps Type-A ports
    • 4 × USB 2.0 Type-A ports
  • Video Outputs (for CPUs with integrated graphics):
    • 2 × DisplayPort™ 1.4 (up to 4K@60Hz)
    • 1 × HDMI™ 2.1 port (4K@60Hz)
  • Front USB Headers (5 Ports Total):
    • 1 × USB 10Gbps Type-C® connector
    • 1 × USB 5Gbps header (supports 2 additional ports)
    • 1 × USB 2.0 header (supports 2 additional ports)
  • Networking:
    • 1 × Realtek 2.5Gb Ethernet port (with ASUS LANGuard)
    • Wi-Fi 6E (2×2, 802.11ax, supports 2.4/5/6GHz bands)
    • Bluetooth® v5.3
Audio Specifications
  • Audio Codec: Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Audio Features:
    • Audio Shielding to separate analog/digital signal domains
    • Premium audio capacitors
    • Dedicated audio PCB layers
    • Supports up to 24-Bit/192 kHz playback, Jack-detection, Multi-streaming, and Front Panel Jack-retasking
Special Features & Build Quality
  • ASUS 5X Protection III: DIGI+ VRM (Digital power design with DrMOS), ESD Guards, LANGuard, Overvoltage Protection, SafeSlot, and Stainless-Steel Back I/O
  • ASUS Q-Design: Q-Antenna, Q-Dashboard, Q-DIMM (single-latch memory slots), Q-LED Core (boot diagnostics), and Q-Slot (easy PCIe release)
  • ASUS Thermal Solution: Dedicated M.2 heatsink and robust VRM heatsink design
  • ASUS EZ DIY: ProCool power connectors and Pre-mounted I/O shield
  • Advanced Headers: Thunderbolt™ (USB4®) header, 3 × Addressable Gen 2 RGB headers, 1 × Aura RGB header
  • BIOS: 256 Mb Flash ROM, UEFI AMI BIOS with ASUS EZ Flash, CrashFree BIOS 3, and EZ Mode
Physical Specifications

  • Dimensions: 24.4 cm × 24.4 cm (9.6 inch × 9.6 inch)
  • Form Factor: Standard Micro-ATX
