ASUS PRIME H610M-A WIFI D4-CSM Micro-ATX Motherboard — LGA1700, Intel H610 Chipset, DDR4 3200 (Max 64GB), PCIe 4.0 x16, Dual M.2 (PCIe 3.0 x4/x2), 4x SATA 6Gb/s, USB 3.2 Gen2, Intel 1Gb LAN, Wi-Fi 5, Bluetooth 5.0, DisplayPort, HDMI, D-Sub, Realtek 7.1 HD

General Information

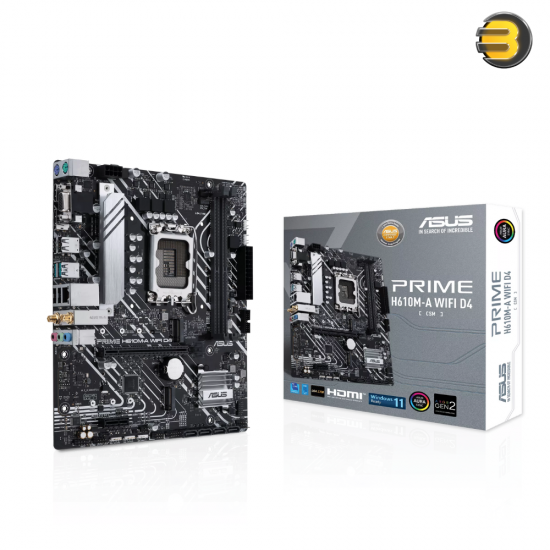

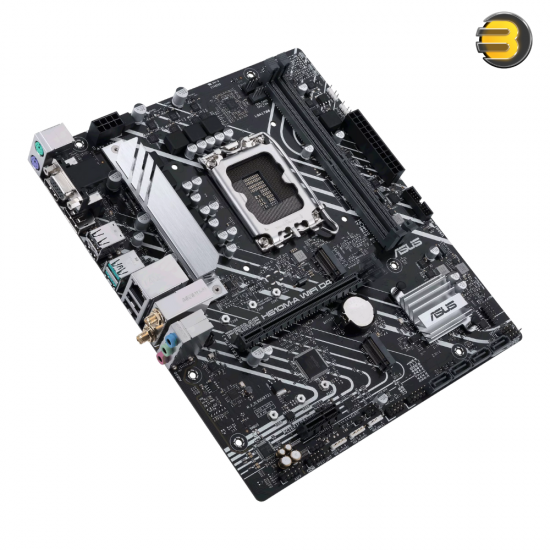

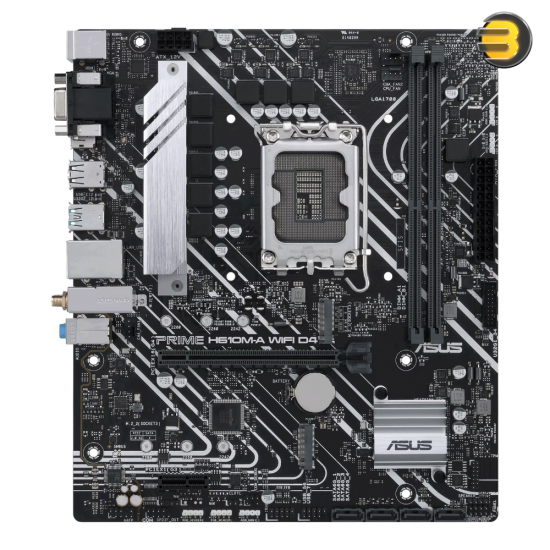

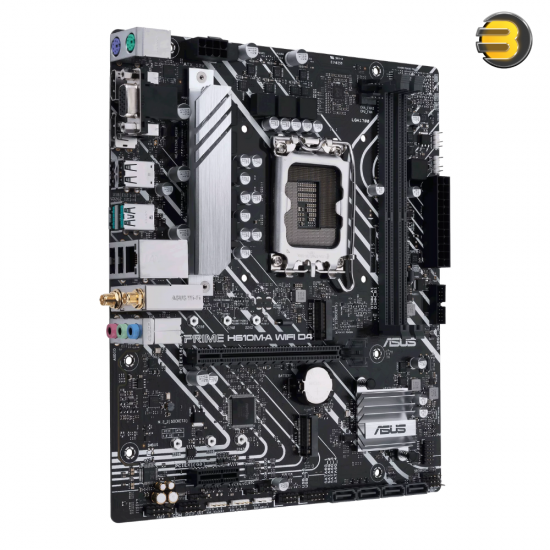

The ASUS PRIME H610M-A WIFI D4-CSM is a budget-friendly, feature-packed Micro-ATX motherboard designed for Intel LGA1700 platform builds with 12th, 13th, and 14th Gen Core processors, as well as Pentium Gold and Celeron CPUs. It offers modern connectivity, Wi-Fi 5, and essential features like ASUS 5X Protection III, making it ideal for mainstream desktops, office PCs, media centers, and value-oriented gaming rigs.

With dual DDR4 DIMM slots, PCIe 4.0 x16 GPU support, and dual M.2 NVMe SSD slots, this board delivers solid performance for everyday tasks and light gaming.

CPU & Chipset

• Socket: LGA1700 – supports:
  • Intel® Core™ i9/i7/i5/i3 (12th, 13th, 14th Gen)
  • Pentium Gold, Celeron (12th–14th Gen)
• Chipset: Intel® H610 – entry-level chipset with PCIe 4.0 x16 GPU support
• Memory Support:
  • 2 x DDR4 DIMM slots – dual-channel architecture
  • Max Capacity: 64GB (2x 32GB)
  • Speeds: Up to DDR4-3200 MHz (OC), supports 3000/2933/2800/2666/2400/2133 MHz
  • Type: Non-ECC, unbuffered DDR4
  • Features:
    • Intel XMP 3.0 support for easy memory overclocking
    • DIMM Flex and DIMM Fit for optimal slot compatibility

Graphics & Display Output

• Integrated Graphics: Supports Intel UHD Graphics (based on CPU)

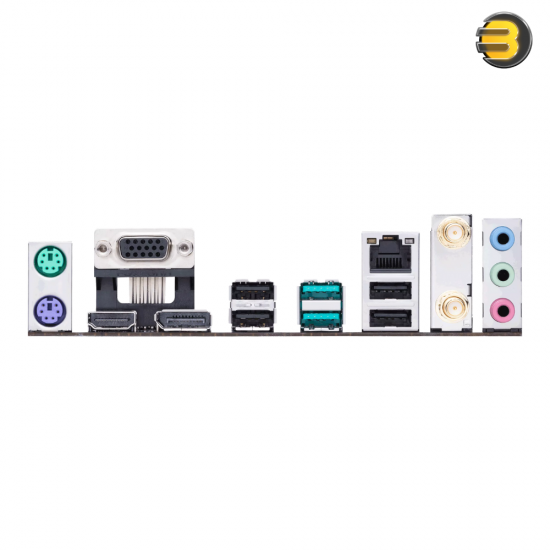

• Display Outputs (Back Panel):
  • 1 x DisplayPort 1.4 – supports 4K@60Hz
  • 1 x HDMI 2.1 – supports 4K@60Hz (with HDR)
  • 1 x D-Sub (VGA) – up to 1920x1200 resolution
• Multi-Monitor Support:
  • Can drive up to 3 displays simultaneously (DP + HDMI + VGA)
  • Ideal for productivity, multi-tasking, or basic media playback
• Note: For high-performance gaming, a discrete GPU is recommended.

Expansion & Connectivity

• PCIe Slots:
  • 1 x PCIe 4.0 x16 – for discrete GPU (from CPU)
  • 1 x PCIe 3.0 x1 – for low-bandwidth expansion cards
• Storage Options:
  • 2 x M.2 slots (Key M) – both support NVMe SSDs:
    • M.2_1: PCIe 3.0 x4 (max 32 Gbps)
    • M.2_2: PCIe 3.0 x2 (max 16 Gbps)
  • 4 x SATA 6Gb/s ports – for HDDs, SSDs, optical drives
• USB Ports:
  • Rear I/O:
    • 2 x USB 3.2 Gen 2 Type-A (10 Gbps)
    • 4 x USB 2.0 Type-A
  • Front Panel Headers:
    • 1 x USB 3.2 Gen 1 header (supports 2 x USB 3.2 Gen 1 ports)
    • 2 x USB 2.0 headers (supports 3 x USB 2.0 ports)

Networking & Wireless

• Ethernet:
  • 1 x Intel® 1Gb Ethernet (I219-V) – wired gigabit connectivity
  • Supports WOL (Wake-on-LAN) and PXE boot
• Wireless:
  • Wi-Fi 5 (802.11ac) – dual-band (2.4GHz & 5GHz)
  • Max speed: 433 Mbps
  • Bluetooth 5.0 – for wireless keyboards, mice, and audio devices
• Software Support:
  • Compatible with ASUS Armoury Crate and ASUS Control Center Express (ACCE) for IT management

Audio

• Codec: Realtek ALC897 7.1 Channel HD Audio
• Features:
  • 24-bit/192 kHz playback support
  • Jack detection, front panel jack retasking, multi-streaming
  • Gold-plated audio jacks
  • Internal audio amplifier for enhanced headphone output
• Note: While not audiophile-grade, it’s suitable for general use, gaming, and music playback.

RGB & Lighting

• RGB Headers:
  • 2 x Addressable Gen 2 RGB headers – compatible with ASUS Aura Sync
  • Supports per-key and zone lighting for RGB fans, strips, and cases
• Control Software:
  • Aura Creator and Aura Sync via Armoury Crate
  • Customizable lighting effects and synchronization

Cooling & Thermal Management

• VRM Heatsinks:
  • Integrated VRM heatsink for stable power delivery
  • PCH (Platform Controller Hub) heatsink for thermal regulation
• Fan Control:
  • Fan Xpert 2+ software for custom fan curves
  • Supports PWM and DC fans
  • 4-pin PWM fan headers for precise control
• Additional Cooling Features:
  • SafeSlot – reinforced PCIe slot for GPU stability
  • ProCool II – high-quality power connectors
  • Q-DIMM – secure DIMM slot design

Protection & Build Quality

• ASUS 5X Protection III:
  • DIGI+ VRM – digital power design with DrMOS
  • ESD Guards – protection against electrostatic discharge
  • LANGuard – network surge protection
  • Overvoltage Protection
  • SafeSlot – reinforced PCIe slot
  • Stainless-steel back I/O shield
• Build Material:
  • High-quality PCB with 6-layer design
  • Reinforced chassis and connectors

Special Features

• ASUS EZ DIY:
  • BIOS FlashBack™ button – update BIOS without a CPU
  • Clear CMOS button
  • Pre-mounted I/O shield
  • SafeDIMM – prevents accidental DIMM removal
• ASUS Q-Design:
  • Q-Latch – tool-less M.2 SSD installation
  • Q-Connector – simplified cable routing
• Management Tools:
  • ASUS Control Center Express (ACCE) – for IT administrators
  • WOL by PME, PXE support for remote access
