ASUS PRIME X670-P ATX AM5 Motherboard – DDR5, PCIe 5.0, 4× M.2, Wi-Fi 6E, 2.5Gb Ethernet, HDMI/DP, EXPO Ready - 90MB1BU0-M0AAY0
12,500 EGP
Ex Tax: 12,500 EGP
- Stock: In Stock
- Model: PRIME X670-P
- MPN: 90MB1BU0-M0AAY0
Tags:
AM5 motherboard
, ASUS PRIME
, X670
, DDR5
, PCIe 5.0
, 4 M.2
, Wi-Fi 6E
, 2.5Gb Ethernet
, EXPO
, ATX
, 90MB1BU0-M0AAY0
Model Name
ASUS PRIME X670-P
ASUS PRIME X670-P
Form Factor
ATX (12" × 9.6" / 30.5 × 24.4 cm)
ATX (12" × 9.6" / 30.5 × 24.4 cm)
CPU Socket
AMD AM5
AMD AM5
Supported Processors
- AMD Ryzen™ 9000 Series
- AMD Ryzen™ 8000 Series
- AMD Ryzen™ 7000 Series
Chipset
AMD X670
AMD X670
Memory
- 4 × DDR5 DIMM slots (Max 256 GB)
- Dual-channel architecture
- Supports DDR5 7600+(OC) down to 4800 MT/s
- Supports AMD EXPO™ (Extended Profiles for Overclocking)
- ECC & Non-ECC, Unbuffered
- On-Die ECC support (with compatible CPUs)
- ASUS OptiMem II technology
Expansion Slots
With Ryzen 9000/7000 Series CPUs:
With Ryzen 9000/7000 Series CPUs:
- 1 × PCIe 4.0 x16 slot (x16 mode)
With Ryzen 8000 Series CPUs: - 1 × PCIe 4.0 x16 slot (x8/x4 mode)
Chipset-provided: - 2 × PCIe 4.0 x16 slots (x4 mode)
- 1 × PCIe 3.0 x1 slot (shares bandwidth with SATA6G_3/4)
Storage
With Ryzen 9000/7000 Series CPUs:
With Ryzen 9000/7000 Series CPUs:
- M.2_1: PCIe 5.0 x4 (2242/2260/2280)
- M.2_2: PCIe 4.0 x4 (2242/2260/2280/22110)
With Ryzen 8000 Series CPUs: - M.2_1: PCIe 4.0 x4 (2242/2260/2280)
- M.2_2: PCIe 4.0 x4/x2 (2242/2260/2280/22110)
Chipset-provided: - M.2_3: PCIe 4.0 x4 (2242/2260/2280)
- 6 × SATA 6Gb/s ports
- Supports NVMe & SATA RAID 0/1/10 (via AMD RAIDXpert2)

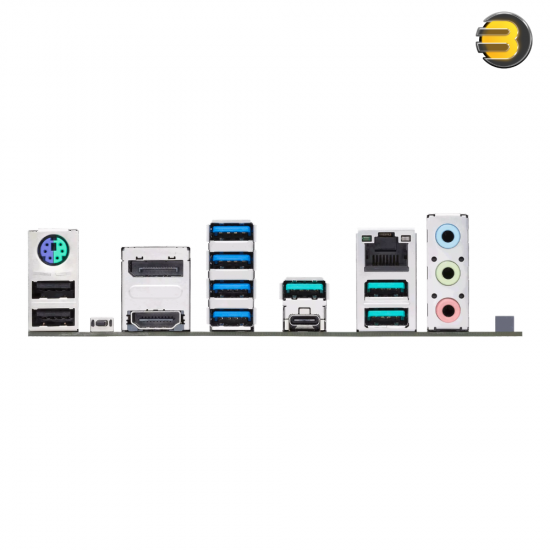

Rear I/O Ports
- 1 × USB 3.2 Gen 2x2 (Type-C® – 20 Gbps)
- 3 × USB 3.2 Gen 2 (Type-A – 10 Gbps)
- 4 × USB 3.2 Gen 1 (Type-A – 5 Gbps)
- 2 × USB 2.0 (Type-A)
- 1 × DisplayPort 1.4 (max 8K@60Hz)
- 1 × HDMI 2.1 (max 4K@60Hz)
- 1 × Realtek 2.5Gb Ethernet
- 3 × Audio jacks (7.1 HD Audio via front panel)
- 1 × PS/2 combo port
- BIOS FlashBack™ button
Internal Headers
- 1 × USB 3.2 Gen 1 (supports Type-C® front panel)
- 2 × USB 3.2 Gen 1 headers (4 additional ports)
- 2 × USB 2.0 headers (4 additional ports)
- 3 × Addressable Gen 2 RGB headers
- 2 × Aura RGB headers
- 1 × Thunderbolt™ (USB4®) header
- 1 × SPI TPM header (14-1 pin)
- 1 × S/PDIF Out
- 1 × COM port
- 1 × Clear CMOS header
Cooling & Fan Control
- 1 × 4-pin CPU Fan
- 1 × 4-pin CPU OPT Fan
- 1 × 4-pin AIO Pump
- 3 × 4-pin Chassis Fan headers
- Fan Xpert 4 with AI Cooling II
Power Connectors
- 1 × 24-pin ATX
- 1 × 8-pin EPS
- 1 × 4-pin +12V
Audio
- Realtek 7.1 Surround Sound HD Audio CODEC
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio shielding
- Supports jack detection & multi-streaming
Networking
- Realtek 2.5Gb Ethernet
- ASUS LANGuard
Special Features
- BIOS FlashBack™: Update BIOS without CPU or RAM
- ASUS 5X Protection III: DIGI+ VRM, ESD Guards, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless Steel Back I/O
- Q-Design: Q-DIMM, Q-LED Core, Q-Slot, M.2 Q-Latch
- Thermal: M.2 heatsink, VRM heatsink
- Software: Armoury Crate, Aura Sync, AI Suite 3, ASUS CPU-Z

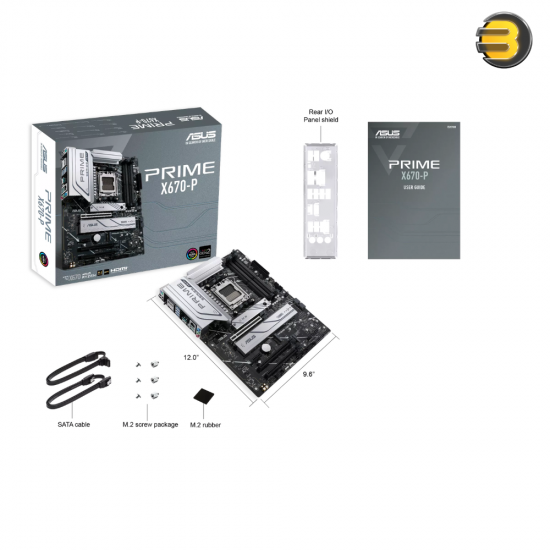

Bundled Accessories
- 2 × SATA cables
- 1 × I/O shield
- M.2 rubber & screw packages
- User guide
OS Support
Windows® 11, Windows® 10 64-bit
Windows® 11, Windows® 10 64-bit
