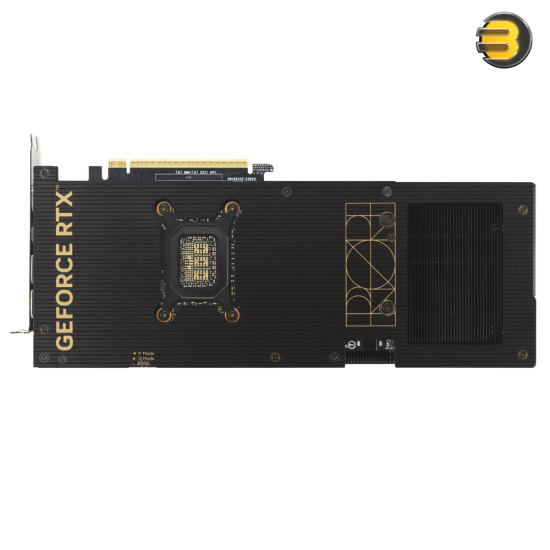

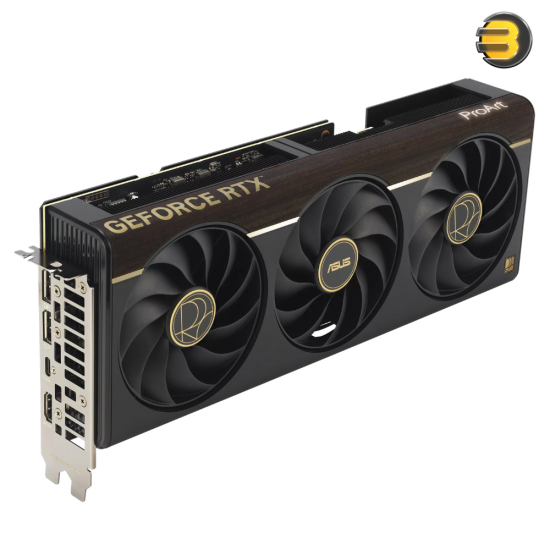

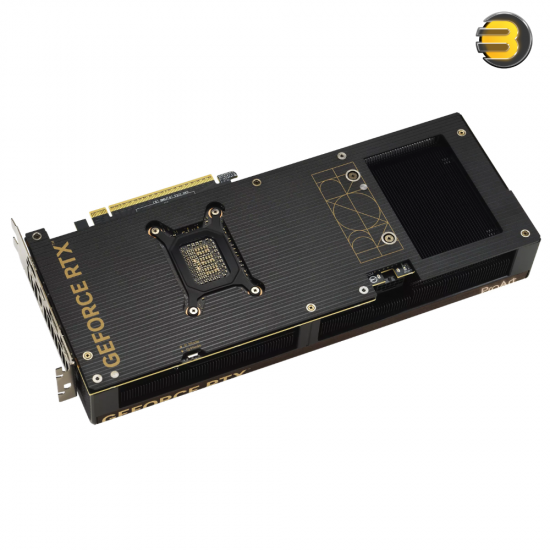

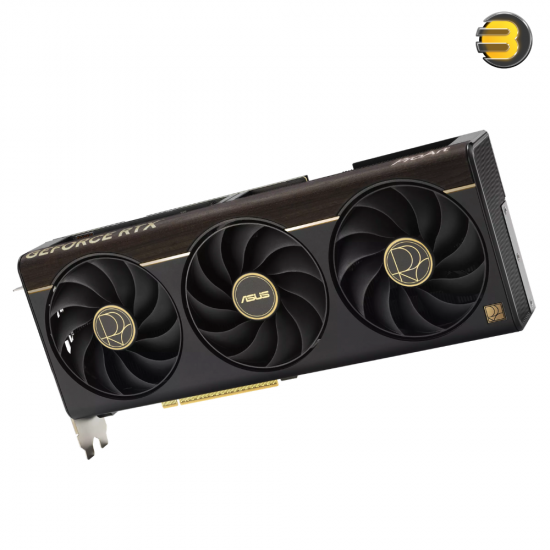

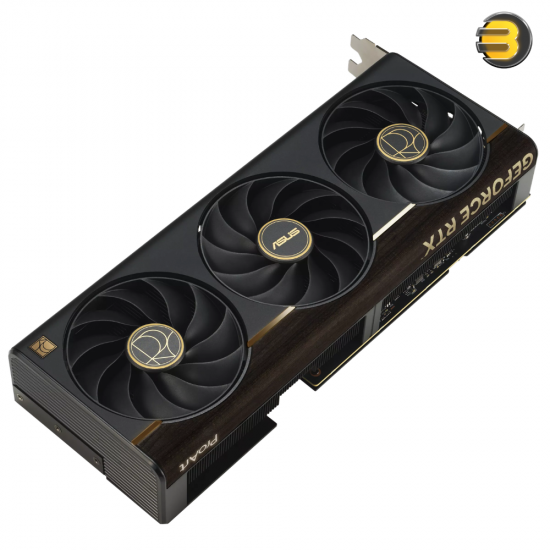

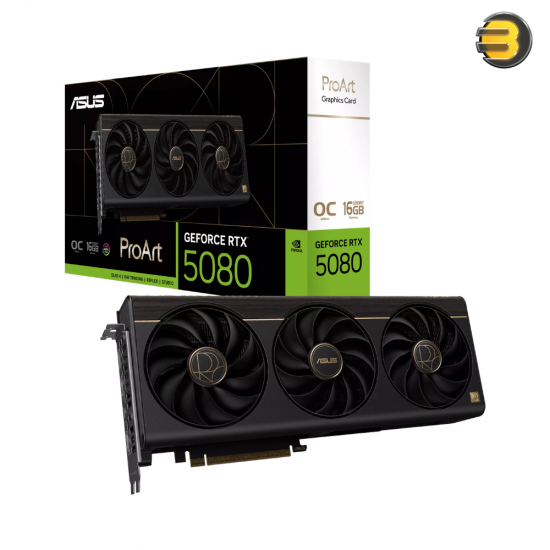

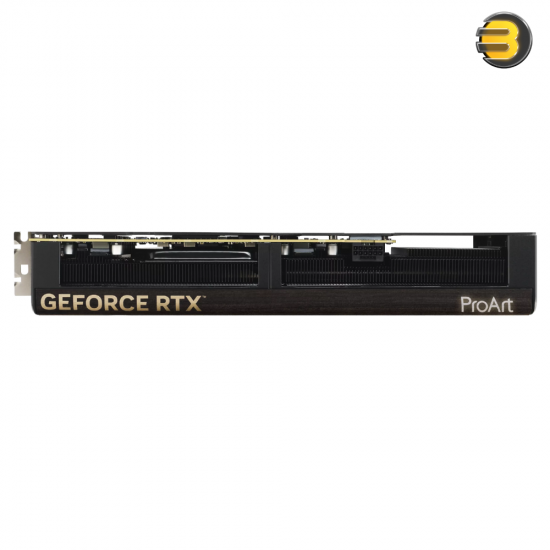

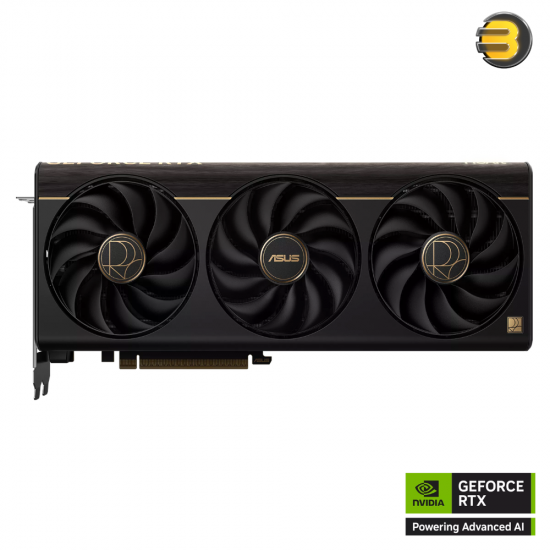

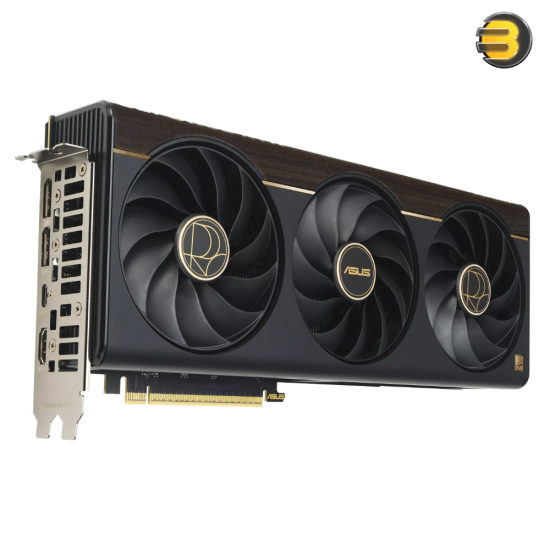

ASUS ProArt GeForce RTX 5080 16GB GDDR7 OC Edition Graphics Card

Graphics Engine

• GPU: NVIDIA® GeForce RTX™ 5080
• CUDA Cores: 10,752
• AI Performance: 1,801 TOPs
• Bus Standard: PCI Express 5.0

Clocks & Memory

• Engine Clock:
  • OC Mode: 2,730 MHz (Boost)
  • Default Mode: 2,700 MHz (Boost)
• Video Memory: 16 GB GDDR7
• Memory Speed: 30 Gbps
• Memory Interface: 256-bit

Display Outputs

• HDMI: 1 × Native HDMI 2.1b
• DisplayPort: 2 × Native DisplayPort 2.1b
• USB-C: 1 × USB Type-C (supports DisplayPort Alt Mode)
• HDCP Support: Yes (2.3)
• Max Resolution: 7680 × 4320 (8K)
• Maximum Displays: 4 simultaneous displays

Power & Cooling

• Power Connectors: 1 × 16-pin (12VHPWR/12V-2x6)
• Recommended PSU: 850 W
• Slot Width: 2.5 Slot
• Dimensions: 304 × 126 × 50 mm (12 × 5 × 2 inches)
• SFF Ready: Compatible (Small Form Factor)

Software & Features

• Included Software:
  • ASUS GPU Tweak III
  • MuseTree (AI creative tools)
  • GeForce Game Ready & Studio Drivers (download from support site)
• Multi-GPU: No NVLink or CrossFire support

Accessories

• 1 × Speedsetup Manual
• 1 × Adapter Cable (1-to-3, likely for legacy power or mounting)
• 1 × ProArt Graphics Card Holder (anti-sag bracket)
• 1 × ASUS Velcro Hook & Loop (cable management)
• 1 × Thank You Card
