Asus ROG Strix Helios GX601 RGB Mid-Tower Computer Case for up to EATX Motherboards with USB 3.1 Front Panel, Smoked Tempered Glass, Brushed Aluminum and Steel Construction, and Four Case Fans

Brand

ASUS

Series

ROG STRIX

Model

HELIOS GX601

Details

Type

ATX Mid Tower

Color

Black

Case Material

ABS / Aluminum / Steel / Tempered Glass

With Power Supply

No

Power Supply Mounted

Bottom

Motherboard Compatibility

Micro ATX / ATX / Mini ITX / E-ATX

Side Panel Window

Yes

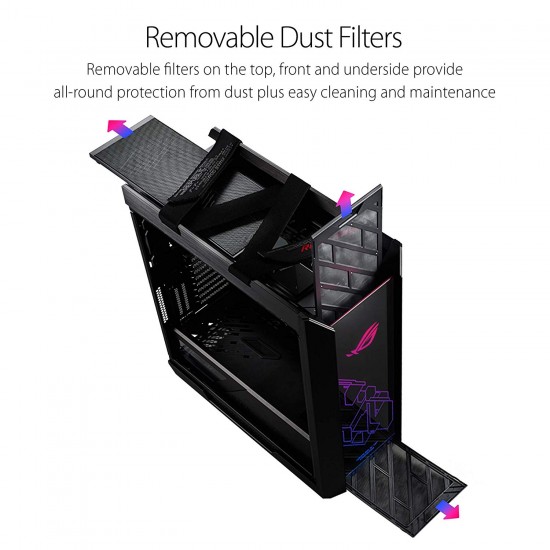

Removable Filter

Yes

Expansion

Internal 3.5" Drive Bays

2 x 3.5"/ 2.5"

Internal 2.5" Drive Bays

4 (up to 9)

Expansion Slots

8+2 (Additional Vertical)

Front Panel Ports

Front Ports

1 x USB 3.1 Gen 2 Type-C / 4 x USB 3.1 Gen 1 / 1 x Audio In&Out / 1 x LED Lighting Control & Fan Speed Control

Cooling System

Fan Options

Front: 3 x 120mm / 3 x 140mm fan (3 x 140mm fan Pre-installed)

Top: 3 x 120mm or 2 x 140mm fan

Rear: 1 x 120mm / 1 x 140mm fan (1 x 140mm fan Pre-installed)

Radiator Options

Front: 120, 140, 240, 280, 360, 420 mm

Top: 120, 140, 240, 280, 360 mm

Rear: 120, 140mm

Dimensions & Weight

Max GPU Length Allowance

450 mm

Max CPU Cooler Height Allowance

190 mm

Max PSU Length

220 mm

Dimensions (H x W x D)

23.27" x 9.84" x 22.24"

Weight

39.68 lbs.

Additional Info

Features

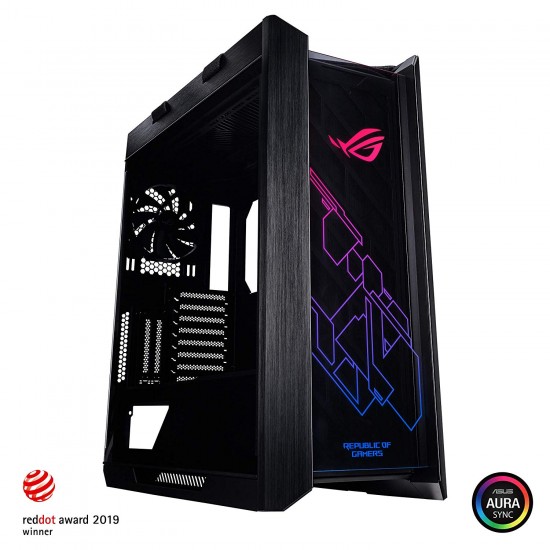

Premium design & aesthetics: Made for showcase builds with three tempered-glass panels, brushed-aluminum frame and integrated Aura Sync RGB front lighting

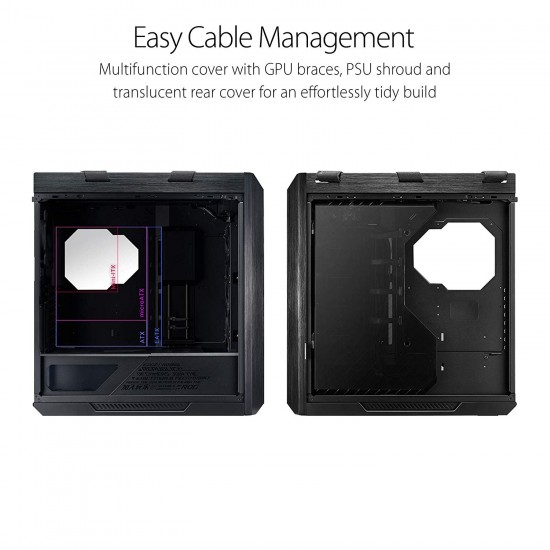

Clean build made easy: A multifunction cover with graphics card holders, a PSU shroud and a translucent rear cable cover offer effortless cable management

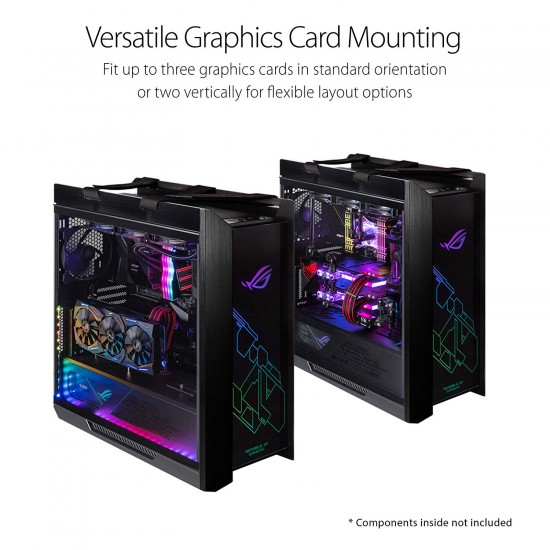

Versatile GPU mounting: Install three graphics cards in standard orientation, or two vertically for extra showcase flair using a bundled bracket

Ready for serious cooling: Supports an up to EATX motherboard, with room for 420mm front radiators and water-cooling pump and reservoir

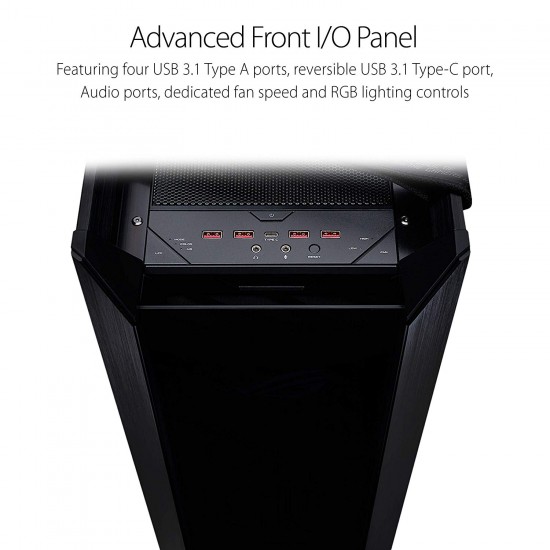

Advanced I/O panel: USB 3.1 Gen 2 Type-C port, four USB 3.0 ports, an RGB-lighting control button and a fan-speed control button

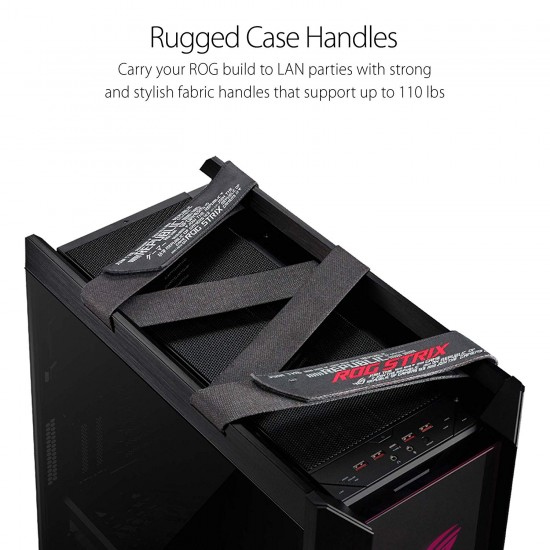

Comfortable case handles: Easily carry your prized build to LAN parties with ergonomic and stylish fabric handles
