ASUS ROG STRIX X870E-A GAMING WIFI7 NEO ATX Motherboard – AMD AM5, DDR5, PCIe 5.0 x16, Dual USB4 40Gbps, 4× M.2 Slots, DDR5 9600+ MT/s (OC), Realtek 5GbE LAN, Wi-Fi 7, ROG SupremeFX ALC4080 Audio, Q-Design & White/Silver Build
  • Stock: Coming Soon
  • Model: ROG STRIX X870E-A GAMING WIFI7 NEO
  • MPN: 90MB1P30-M0VAY0
1 Asus
views 9
0 reviews - Write a review
0 EGP
Coming Soon
Shiping Information
Nationwide shipping across Egypt. Fees confirmed by phone before shipping.

Description

Model Name
ROG STRIX X870E-A GAMING WIFI7 NEO
Brand
ASUS / ROG (Republic of Gamers)
Form Factor
ATX (30.5 cm × 24.4 cm / 12 inch × 9.6 inch)
Processor & Chipset Specifications
  • CPU Socket: AMD Socket AM5
  • CPU Support: AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors
  • Chipset: AMD X870E (Extreme)
Memory Specifications
  • Slots: 4 × DIMM Slots
  • Maximum Capacity: Up to 256 GB
  • Memory Type: DDR5 (Dual-channel architecture)
  • Supported Speeds (Overclocked):
    • Up to 9600+ MT/s (OC) with Ryzen™ 8000 Series
    • Up to 8600+ MT/s (OC) with Ryzen™ 9000 Series
    • Up to 8000+ MT/s (OC) with Ryzen™ 7000 Series
  • Memory Features:
    • AMD EXPO™ (Extended Profiles for Overclocking)
    • ASUS Enhanced Memory Profile (AEMP)
    • NitroPath DRAM Technology
    • DIMM Fit and DIMM Fit Pro support
    • ECC and Non-ECC Un-buffered DIMM support
Expansion & Storage Specifications
  • PCIe Slots:
    • 1 × PCIe 5.0 x16 slot (supports x16 mode with Ryzen 9000/7000)
    • 1 × PCIe 4.0 x16 slot (supports x8 mode with Ryzen 8700/8600/8400)
    • 1 × PCIe 4.0 x16 slot (supports x4 mode with Ryzen 8500/8300)
    • 1 × PCIe 4.0 x16 slot (supports x4 mode via X870E Chipset)
  • M.2 Slots: 4 × M.2 Slots Total
    • M.2_1: Type 2242/2260/2280 (PCIe 5.0 x4 with Ryzen 9000/7000, or PCIe 4.0 x4 with Ryzen 8000)
    • M.2_2: Type 2280/22110 (PCIe 5.0 x4 with Ryzen 9000/7000, or PCIe 4.0 x4 with Ryzen 8000)
    • M.2_3: Type 2280 (PCIe 4.0 x4 via Chipset)
    • M.2_4: Type 2280 (PCIe 4.0 x4 via Chipset)
  • SATA Ports: 4 × SATA 6Gb/s ports

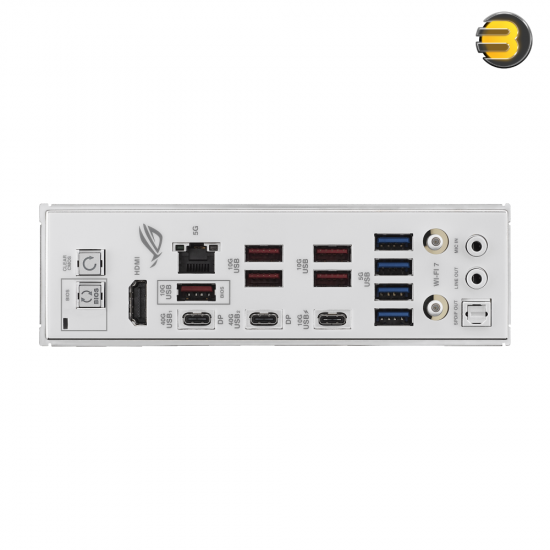

Connectivity & I/O Ports
  • Rear USB Ports (13 Total):
    • 2 × USB4® (40Gbps) Type-C® ports (with DisplayPort Alt Mode)
    • 5 × USB 10Gbps Type-A ports
    • 1 × USB 10Gbps Type-C® port (with up to 30W Power Delivery)
    • 4 × USB 5Gbps Type-A ports
  • Front USB Headers:
    • 1 × USB 20Gbps Type-C® connector (with up to 30W PD/PPS Fast-charge)
    • 1 × USB 5Gbps header (supports 2 additional ports)
    • 3 × USB 2.0 headers (support 6 additional ports)
  • Networking:
    • 1 × Realtek® 5Gb Ethernet
    • Wi-Fi 7 (MediaTek MT7925, 2×2, 802.11be, 2.4/5/6GHz, 160MHz bandwidth)
    • Bluetooth® v5.4 (supports LE Audio)
  • Video Output: 1 × HDMI™ port
Audio Specifications
  • Audio Codec: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
  • Audio Features:
    • Impedance sense for front and rear headphone outputs
    • Supports up to 32-Bit/384 kHz playback on front panel
    • High-quality 120 dB SNR stereo playback and 110 dB SNR recording input
    • Savitech SV3H712 Amplifier
    • SupremeFX Shielding Technology and premium audio capacitors
    • Rear optical S/PDIF out port
Special Features & Build Quality
  • ASUS Q-Design: M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, and Q-LED diagnostic indicators
  • ASUS EZ DIY: BIOS FlashBack™ button & LED, Clear CMOS button, Dual DIMM clips, ProCool II power connectors, Pre-mounted I/O shield, SafeSlot reinforcement
  • ASUS Thermal Solution: Comprehensive VRM heatsink design, M.2 heatsinks, and M.2 heatsink backplate
  • Extreme Engine Digi+: 5K Black metallic capacitors for enhanced durability and stable power delivery
  • RGB Lighting: Aura Sync Addressable RGB Gen 2 headers for seamless ecosystem synchronization
  • Advanced Features: Asynchronous Clock support for extreme memory overclocking
Physical Specifications
  • Dimensions: 30.5 cm × 24.4 cm (12 inch × 9.6 inch)
  • Form Factor: Standard ATX
  • Color Scheme: White and Silver (NEO variant)
