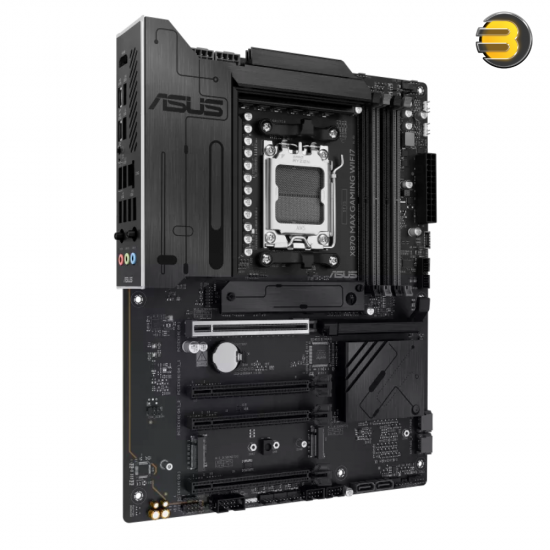

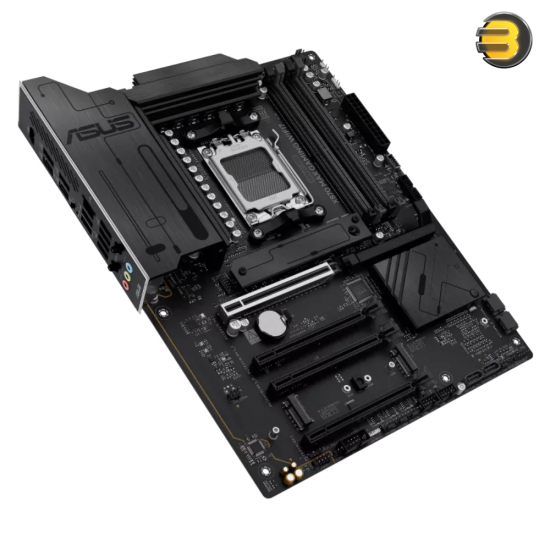

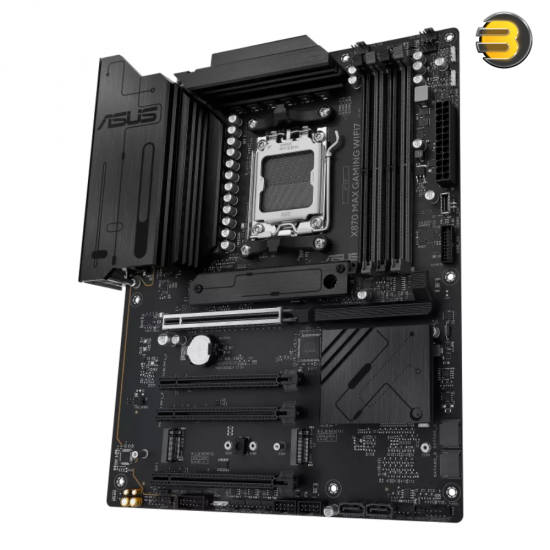

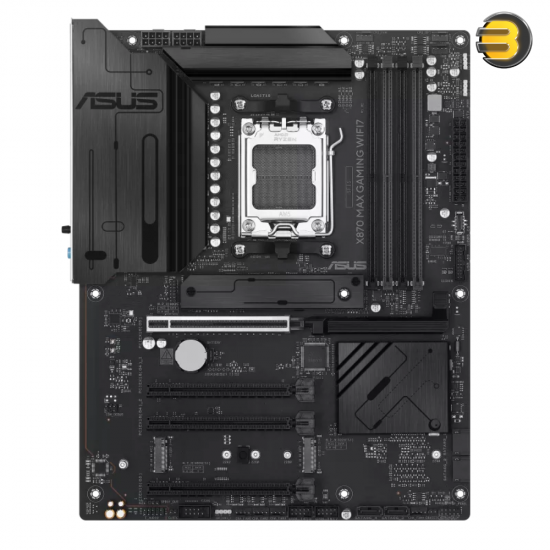

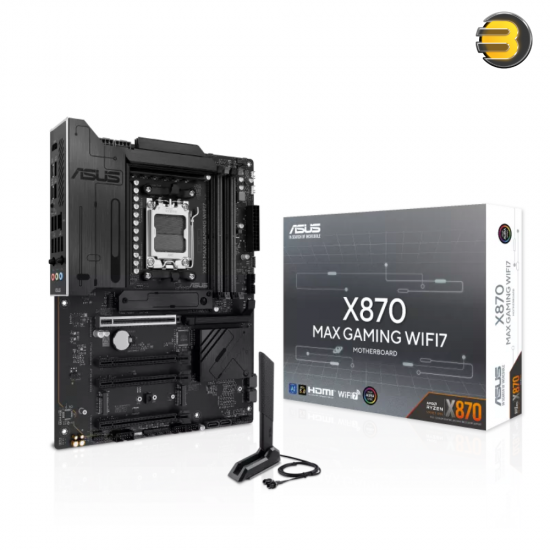

ASUS X870 MAX GAMING WIFI7 ATX Motherboard – AMD AM5, Wi-Fi 7, PCIe 5.0 x16, DDR5-8000+ (OC), 3× M.2 Slots, 2× USB4 40Gbps, 2.5Gb LAN, Realtek 7.1-Channel Audio, Aura Sync RGB & ASUS Q-Design
16,000 EGP
Shiping Information
Nationwide shipping across Egypt. Fees confirmed by phone before shipping.
Description
Core Identifiers & Form Factor
- Brand / Series: ASUS Gaming Series
- Model Name: X870 MAX GAMING WIFI7
- Form Factor: ATX Form Factor (12 inch × 9.6 inch / 30.5 cm × 24.4 cm)
CPU & Chipset Support
- CPU Socket: AMD Socket AM5
- Supported Processors: AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors
- Chipset: AMD X870 Chipset (Flagship tier offering maximum connectivity and overclocking headroom)
Memory (RAM) Specifications
- Memory Slots: 4 × DIMM slots
- Max Capacity: Up to 256 GB DDR5
- Supported Speeds: Supports up to 8000+ MT/s (OC) with Ryzen™ 9000, 8000, and 7000 Series Processors
- Architecture: Dual Channel Memory Architecture
- Profiles & Features:
- Supports AMD EXPO™ (Extended Profiles for Overclocking)
- Supports ASUS AEMP (Enhanced Memory Profile)
- Supports ECC and Non-ECC, Un-buffered DIMM (On-Die ECC supported)
Expansion Slots
(Note: PCIe lane distribution changes depending on the installed CPU generation)
(Note: PCIe lane distribution changes depending on the installed CPU generation)
- With AMD Ryzen™ 9000 & 7000 Series Processors:
- 1 × PCIe 5.0 x16 slot (supports x16 mode for next-gen GPUs)
- With AMD Ryzen™ 8000 Series Processors:
- 1 × PCIe 4.0 x16 slot (supports x8/x4 mode)
- Powered by AMD X870 Chipset:
- 2 × PCIe 4.0 x16 slots (support x1 mode)
- 1 × PCIe 3.0 x16 slot (supports x1 mode — Note: shares bandwidth with SATA6G_3 and SATA6G_4 ports)
Storage & M.2 Slots
- Total Storage Support: 3 × M.2 slots and 4 × SATA 6Gb/s ports
- With AMD Ryzen™ 9000 & 7000 Series Processors:
- M.2_1 slot (Key M): Type 2280 (supports PCIe 5.0 x4 mode for ultra-fast Gen5 NVMe SSDs)
- M.2_2 slot (Key M): Type 2242/2260/2280 (supports PCIe 4.0 x4 mode — Note: shares bandwidth with the two USB4 ports; M.2_2 is disabled when either USB4 port is active)
- With AMD Ryzen™ 8000 Series Processors:
- M.2_1 slot (Key M): Type 2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M): Type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
- Powered by AMD X870 Chipset:
- M.2_3 slot (Key M): Type 2280 (supports PCIe 4.0 x4 mode)
- 4 × SATA 6Gb/s ports
Networking & Wireless
- Ethernet: 1 × Realtek 2.5Gb Ethernet with ASUS LANGuard (Surge protection and signal stability)
- Wireless: Wi-Fi 7 (2x2 Wi-Fi 7, 802.11be, supports 2.4/5/6GHz frequency bands, up to 2.9Gbps transfer rate, 320MHz bandwidth)
- Bluetooth: Bluetooth® v5.4
USB Connectivity
- Rear Panel USB (Total 10 ports):
- 2 × USB4® (40Gbps) ports (Type-C)
- 1 × USB 10Gbps port (Type-A)
- 3 × USB 5Gbps ports (Type-A)
- 4 × USB 2.0 ports (Type-A)
- Front Panel USB (Total 7 ports via headers):
- 1 × USB 20Gbps connector (supports front panel USB Type-C® with up to 5V/3A Power Delivery for fast device charging)
- 1 × USB 5Gbps header (supports 2 additional USB 5Gbps ports)
- 2 × USB 2.0 headers (support 4 additional USB 2.0 ports)
Audio & Display Outputs
- Audio CODEC: Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports up to 24-Bit/192 kHz playback
- Features audio shielding, premium audio capacitors, and dedicated audio PCB layers to prevent electromagnetic interference
- Video Outputs:
- 1 × HDMI™ port (Supports 4K@60Hz as specified in HDMI 2.1)
- 2 × USB4® (40Gbps) Type-C® ports (Support DisplayPort 1.4a video output up to 4K@60Hz for daisy-chaining monitors)
Internal I/O Connectors & Headers
- Cooling: 1 × 4-pin CPU Fan, 1 × 4-pin CPU OPT Fan, 1 × 4-pin AIO Pump, 4 × 4-pin Chassis Fan headers
- Power: 1 × 24-pin Main Power connector, 2 × 8-pin +12V CPU Power connectors (ProCool design for stable power delivery to high-core-count CPUs)
- Lighting & Miscellaneous:
- 3 × Addressable RGB Gen 2 headers
- 1 × Clear CMOS header
- 1 × Chassis Intrusion header
- 1 × COM Port header
- 1 × Front Panel Audio header
- 1 × S/PDIF Out header
- 1 × SPI TPM header
- 1 × System Panel header

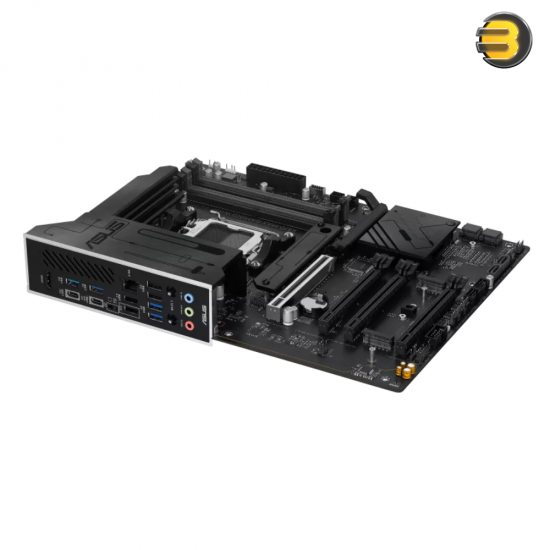

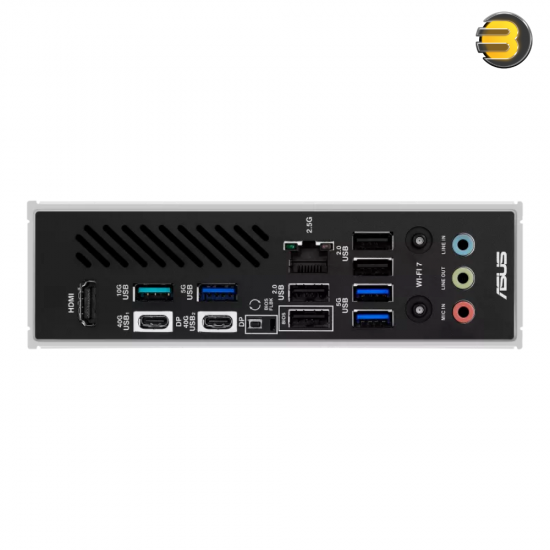

Back Panel I/O & Buttons
- 1 × BIOS FlashBack™ button (Update BIOS without a CPU or RAM installed)

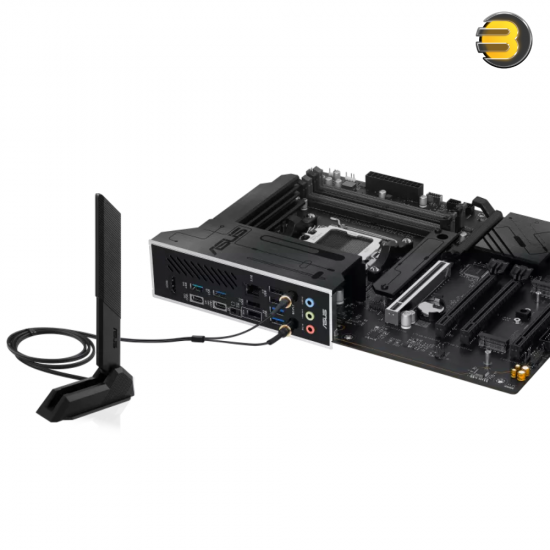

- 1 × Wi-Fi Module antenna ports (Q-Antenna design for easy push-and-click installation)
- 1 × Realtek 2.5Gb Ethernet port
- 3 × Audio jacks
- Pre-mounted I/O shield
Special Features & ASUS Q-Design
- ASUS Q-Design (EZ DIY):
- PCIe Slot Q-Release: Easily release the GPU from the PCIe slot with a physical button, no reaching behind the GPU required.
- Q-DIMM: Single-sided latch design for effortless RAM installation and removal, even with large CPU coolers.
- Q-Antenna: Push-and-click Wi-Fi antenna connectors (no more screwing in tiny antenna rods).
- Q-Slot & Q-LED Core: Enhanced slot retention and simplified diagnostic lighting.
- Q-Dashboard: Software interface to monitor system status and Q-LED codes.
- Thermal Solution: Flexible M.2 heatsink (tool-less removal) and massive VRM heatsink design to handle 16-core+ CPUs.
- Lighting: Aura Sync compatible with Addressable RGB Gen 2 headers for synchronized ecosystem lighting.
