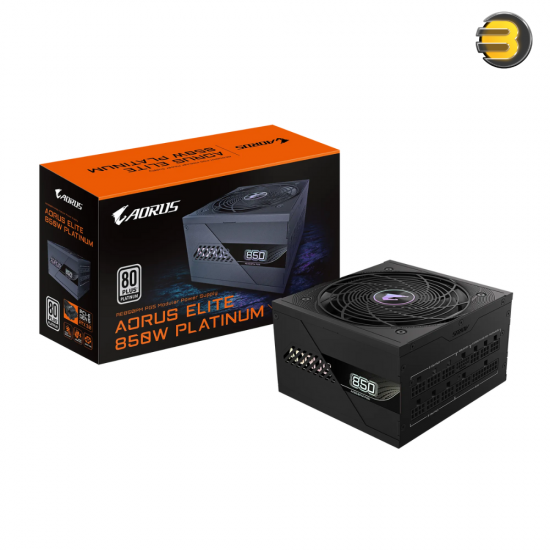

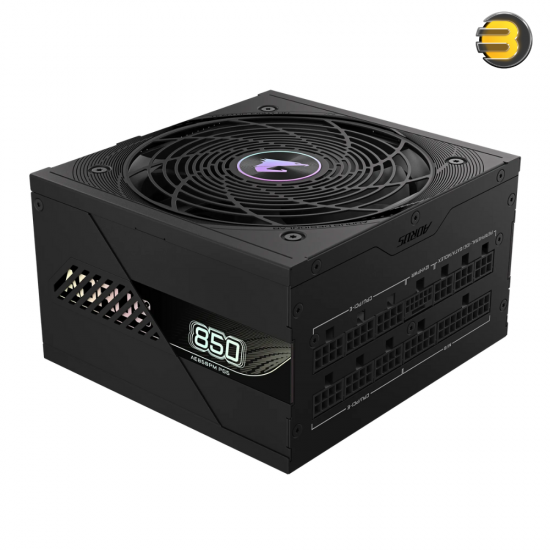

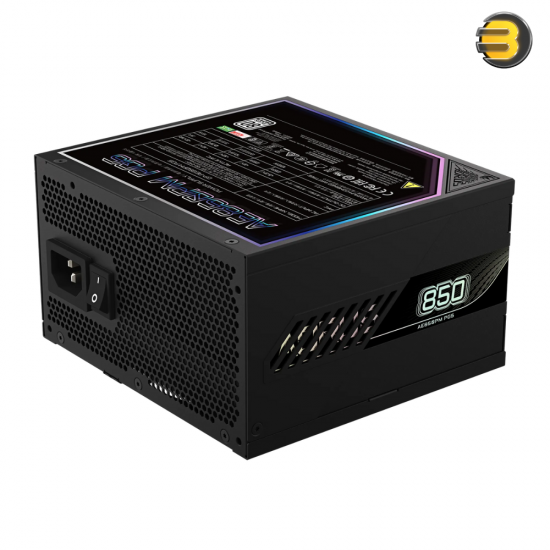

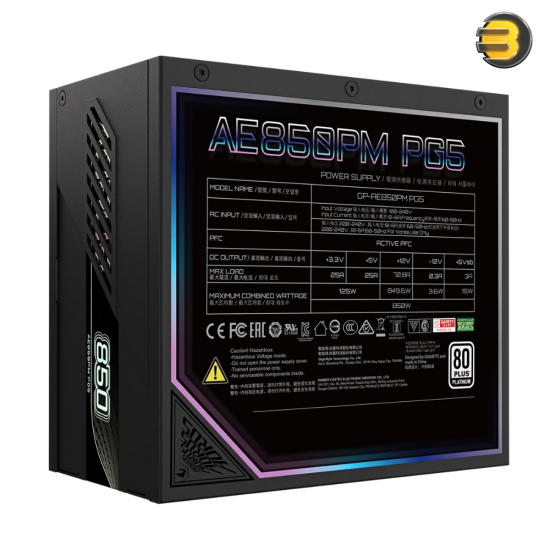

GIGABYTE AORUS ELITE P850W 80+ Platinum Modular Power Supply – 850W Output, ATX 3.0 & PCIe 5.0 Ready, Fully Modular Cables, 100% Japanese Capacitors, 120 mm FDB Fan, High-Performance Design (GP-AE850PM PG5)

General Information

• Model: GP-AE850PM PG5
• Type: Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
• Output Capacity: 850W
• Efficiency: 92% at typical load
• 80 PLUS Certification: Platinum
• Dimensions: 150 x 140 x 86mm

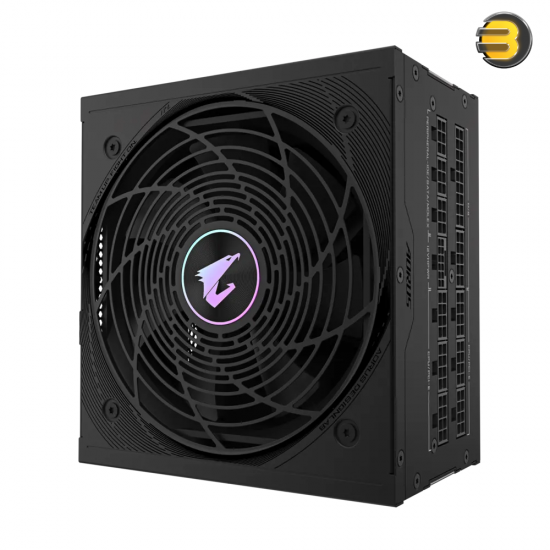

• Fan Type: 120mm Fluid Dynamic Bearing (FDB) Fan
• MTBF: >100,000 hours

Input

• Input Voltage: 100-240 Vac (full range)
• Input Current: 12-6A
• Input Frequency: 60-50 Hz
• PFC: Active PFC (>0.9 typical)

Protections

• OVP/OPP/SCP/UVP/OCP/OTP

Power Delivery

• Power Good Signal: 100-150ms
• Hold Up Time: >16ms

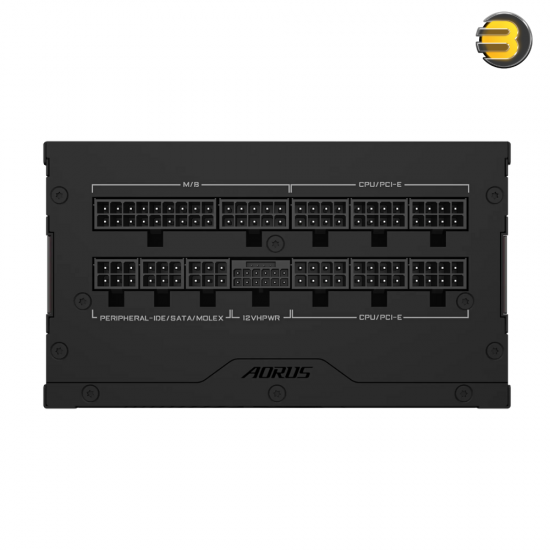

Cables & Connectors

• Cable Type: Flat, All black (Fully Modular)
• Connectors:
  • ATX/MB 20+4 Pin x 1: 650mm*1
  • CPU/EPS 4+4 Pin x 2: 700mm*2
  • PCI-e 16 Pin x 1: 700mm*1
  • PCI-e 6+2 Pin x 6: 650mm+150mm2, 750mm2
  • SATA x 8: 600mm+150mm+150mm+150mm*2
  • 4 Pin Peripheral x 4: 500mm+150mm+150mm+150mm*1

Features

• Capacitors: 100% Japanese Capacitors
• Design: High-performance design
