Name: GIGABYTE B550 AORUS ELITE AX V2 AM4 AMD B550 SATA 6Gb/s ATX AMD Motherboard - B550 AORUS ELITE AX
Brand: Gigabyte
Price: 7800 EGP
Availability: InStock

GIGABYTE B550 AORUS ELITE AX V2 AM4 AMD B550 SATA 6Gb/s ATX AMD Motherboard

GIGABYTE B550 AORUS ELITE AX V2 AM4 AMD B550 SATA 6Gb/s ATX AMD Motherboard

0 reviews - Write a review

7,800 EGP

Ex Tax: 7,800 EGP

Stock: In Stock
Model: B550 AORUS ELITE AX

Gigabyte

Qty

Add to Cart

Tags: GIGABYTE , B550 , AORUS , ELITE , AX , V2 , AM4 , AMD , SATA 6Gb/s , AMD , Motherboard ,

Description

Brand	GIGABYTE
Model	B550 AORUS ELITE AX V2

Supported CPU
CPU Socket Type	AM4
CPU Type	AMD Socket AM4, support for: AMD Ryzen 5000 Series/3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors * Support for Ryzen 5000 Series with BIOS UPDATE. Refer to GIGABYTE website for CPU support list.

Chipsets
Chipset	AMD B550

Memory
Number of Memory Slots	4×288pin
Memory Standard	3rd Gen AMD Ryzen Processors: Support for DDR4 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 4.0 x16	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode - 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x16	1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: - Supporting PCIe 3.0 x2 mode 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode
PCI Express x1	1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: - 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs - 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: - Supporting SATA and PCIe 3.0 x4/x2 SSDs
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Integrated in the New Generation AMD Ryzen with Radeon Graphics processors: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16GB

Onboard Audio
Audio Chipset	Realtek ALC1200
Audio Channels	2/4/5.1/7.1-channel Support for S/PDIF Out

Onboard LAN
LAN Chipset	Realtek 2.5GbE LAN chip
Max LAN Speed	10/100/1000/2500Mbps
Wireless LAN	Intel Wi-Fi 6 AX200 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Bluetooth	BLUETOOTH 5

Rear Panel Ports

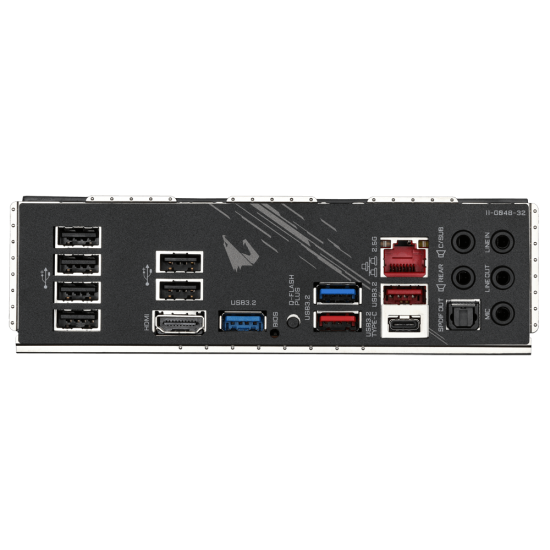

Back I/O Ports	1 x DisplayPort 1 x HDMI port 2 x SMA antenna connectors (2T2R) 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"

CMS Blocks

GIGABYTE B550 AORUS ELITE AX V2 AM4 AMD B550 SATA 6Gb/s ATX AMD Motherboard
