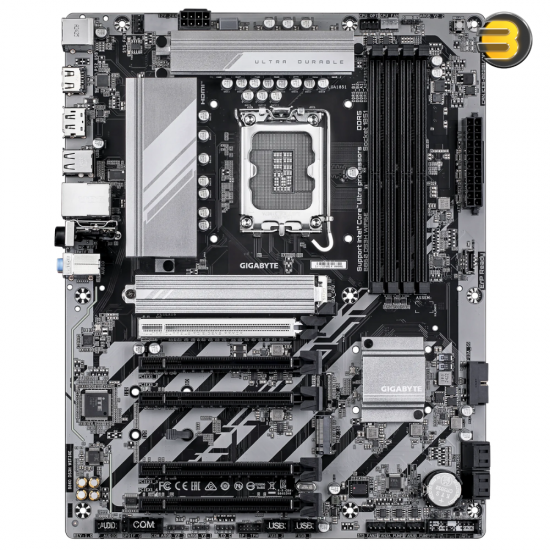

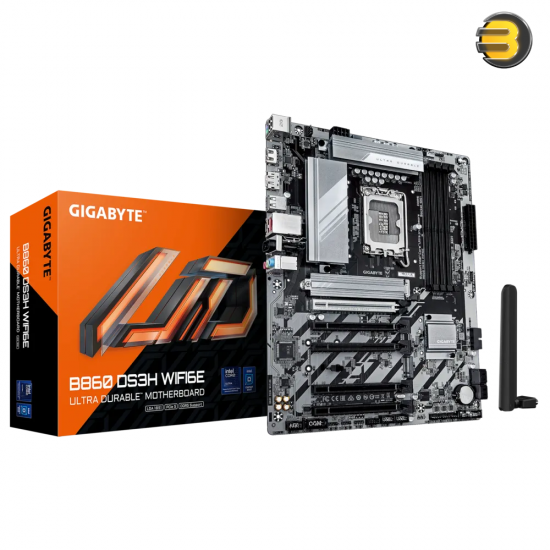

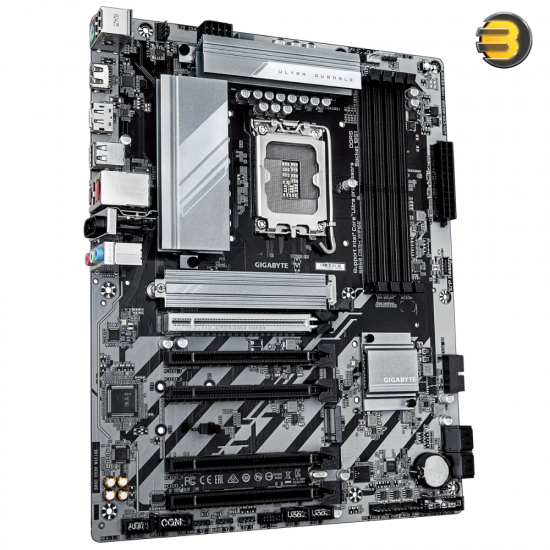

GIGABYTE B860 DS3H WIFI6E – Intel® Core™ Ultra Processor Support, Hybrid 8+1+2 VRM, DDR5 Bionic Corsa, AI Perfdrive, PCIe 5.0 M.2 Slot, Wi-Fi 6E, 2.5GbE LAN, and EZ-Latch Design for Enhanced Performance and Connectivity
8,650 EGP
Ex Tax: 8,650 EGP
- Stock: In Stock
- Model: B860 DS3H WIFI6E
CPU
- Socket: LGA1851
- Supported Processors: Intel® Core™ Ultra Processors
- L3 Cache: Varies by CPU
- Note: Refer to GIGABYTE's website for the latest CPU support list.
Chipset
- Model: Intel® B860 Express Chipset
Memory
- Slots: 4 x DDR5 DIMM sockets
- Maximum Capacity: 256GB (64GB single DIMM capacity)
- Supported Memory Speeds:
- DDR5: 9066(O.C), 8800(O.C), 8600(O.C), 8400(O.C), 8266(O.C), 8200(O.C), 8000(O.C), 7950(O.C), 7900(O.C), 7800(O.C), 7600(O.C), 7400(O.C), 7200(O.C), 7000(O.C), 6800(O.C), 6600(O.C), 6400, 5600 MT/s
- Architecture: Dual-channel memory architecture
- Memory Types Supported:
- ECC Un-buffered DIMM 1Rx8/2Rx8 (Operates in non-ECC mode)
- Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
- Features:
- Supports Extreme Memory Profile (XMP)
- Note: Supported memory types, data rates, and configurations depend on the CPU. Refer to the "Memory Support List" on GIGABYTE's website for details.
Onboard Graphics
- Integrated Graphics Processor: Intel® HD Graphics
- Ports:
- 1 x HDMI port (Supports up to 4096x2160@60Hz , HDMI 2.1, HDCP 2.3)
- 1 x DisplayPort (Supports up to 3840x2160@144Hz , DisplayPort 2.1)
- Note: Graphics specifications may vary depending on CPU support.
Audio
- Codec: Realtek® Audio CODEC
- Features:
- High Definition Audio
- 2/4/5.1/7.1-channel audio support
- S/PDIF Out
- Configurable audio jack functionality via software
LAN
- Controller: Realtek® 2.5GbE LAN chip
- Speeds Supported: 2.5 Gbps / 1 Gbps / 100 Mbps
Wireless Communication Module
- Intel® Wi-Fi 6E AX211 (PCB rev. 1.0):
- Supports WiFi a/b/g/n/ac/ax (2.4GHz, 5GHz, 6GHz)
- Bluetooth 5.3
- 11ax 160MHz wireless standard
- Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1):
- Supports WiFi a/b/g/n/ac/ax (2.4GHz, 5GHz, 6GHz)
- Bluetooth 5.3
- 11ax 160MHz wireless standard
- Note: Actual data rate may vary based on environment and equipment.
Expansion Slots
- CPU:
- 1 x PCI Express x16 slot (PCIe 5.0, x16 mode)
- Supports only one device at a time: either a graphics card or an NVMe SSD.
- 1 x PCI Express x16 slot (PCIe 5.0, x16 mode)
- Chipset:
- 4 x PCI Express x16 slots (PCIe 4.0, x1 mode)
Storage Interface
- CPU:
- 1 x M.2 connector (Socket 3, M key, supports PCIe 5.0 x4/x2 SSDs, 25110/22110/2580/2280 form factors)
- Chipset:
- 1 x M.2 connector (Socket 3, M key, supports PCIe 4.0 x4/x2 SSDs, 25110/22110/2580/2280 form factors)
- 4 x SATA 6Gb/s connectors
- RAID Support: RAID 0, 1, 5, 10 for SATA storage devices
USB
- Back Panel Ports:
- 1 x USB Type-C® (USB 3.2 Gen 2x2)
- 1 x USB 3.2 Gen 2 Type-A (red)
- 4 x USB 2.0/1.1 ports
- Internal Headers:
- 1 x USB Type-C® header (USB 3.2 Gen 1)
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 4 x USB 2.0/1.1 ports available through internal headers
Internal I/O Connectors
- Power Connectors:
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- Fan Headers:
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 2 x system fan headers
- 2 x system fan/water cooling pump headers
- RGB Headers:
- 3 x Addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- Other Headers:
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x Front panel header
- 1 x Front panel audio header
- 1 x S/PDIF Out header
- 1 x Trusted Platform Module (TPM) header
- 1 x Serial port header
- 1 x Q-Flash Plus button
- 1 x Reset jumper
- 1 x Clear CMOS jumper

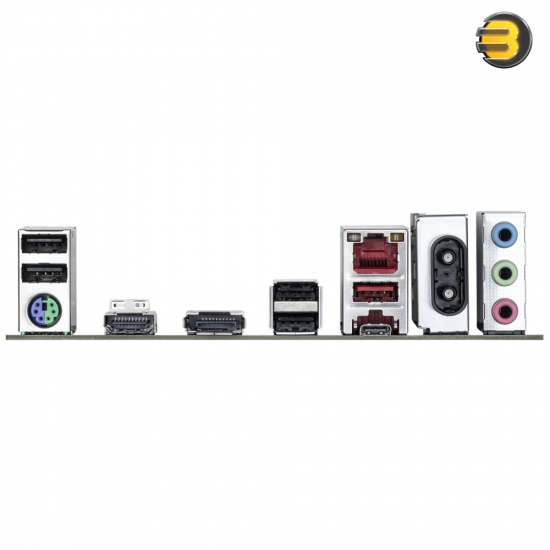

Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x HDMI port*
- 1 x DisplayPort*
- 1 x USB Type-C® port (USB 3.2 Gen 2x2)
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 2 x Antenna connectors (2T2R)
- 3 x Audio jacks
Unique Features
- Software Support:
- GIGABYTE Control Center (GCC)
- Q-Flash
- Q-Flash Plus
- Smart Backup
- Monitoring:
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
BIOS
- Type: Licensed AMI UEFI BIOS
- Size: 256 Mbit flash
- Standards Supported: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System
- Supported OS:
- Windows 11 64-bit
- Windows 10 64-bit
- Note: Intel® NPU driver is only supported on Windows 11.
Form Factor
- Type: ATX
- Dimensions: 30.5cm x 24.4cm
