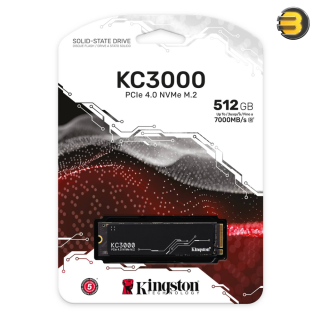

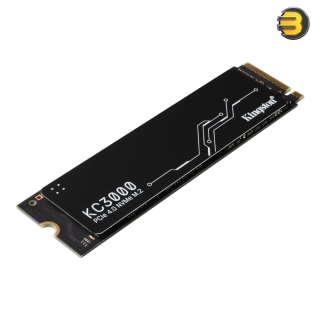

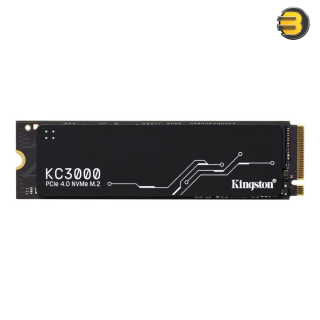

Kingston KC3000 512GB PCIe 4.0 NVMe M.2 SSD – Up to 7000MB/s Read & 3900MB/s Write, Single-Sided, Includes Acronis Cloning Software

Storage & Interface

• Form Factor: M.2 2280

• Interface: PCIe 4.0 x4 NVMe

• Controller: Phison E18

• NAND Type: 3D TLC

• DRAM Cache: Yes

Performance

• Sequential Read Speed: Up to 7,000 MB/s

• Sequential Write Speed: Up to 3,900 MB/s

• Random 4K Read/Write IOPS:

  • Up to 450,000 / 900,000 IOPS

Durability & Reliability

• Total Bytes Written (TBW): 400TB

• Mean Time Between Failures (MTBF): 2,000,000 hours

• Vibration Resistance:

  • Operating: 2.17G peak (7–800Hz).

  • Non-Operating: 20G peak (20–1000Hz).

Power Efficiency

• Idle Power Consumption: 50mW

• Operating Power Consumption:

  • Average: 0.34W.

  • Max Read: 2.7W.

  • Max Write: 4.1W.

Environmental Specifications

• Storage Temperature: -40°C to 85°C

• Operating Temperature: 0°C to 70°C

Physical Specifications

• Dimensions: 80mm x 22mm x 2.21mm.

• Weight: 7g
