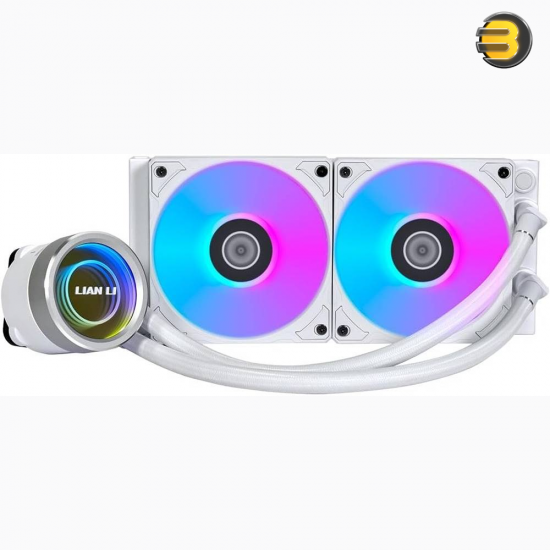

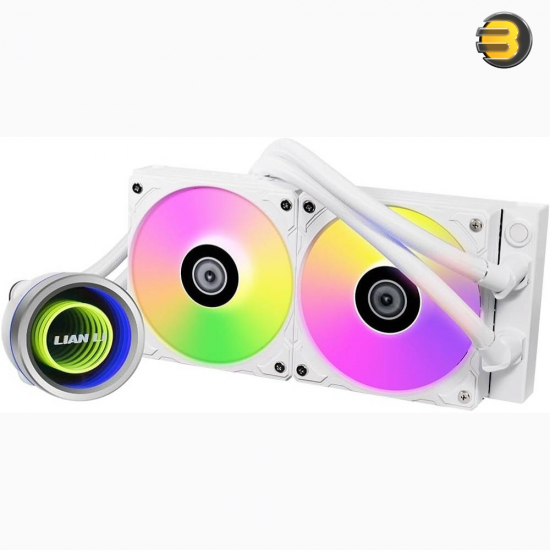

Lian Li Galahad II Trinity 240 White AIO Liquid CPU Cooler — 240mm Aluminum Radiator, 3200 RPM Pump, 2x 120mm ARGB PWM Fans (300-2450 RPM), 3.26 mmH2O Static Pressure, 79.9 CFM, Fluid Dynamic Bearing, Intel LGA 1700/1200/115x & AMD AM5/AM4

General Information

• Type: 240mm All-in-One (AIO) Liquid CPU Cooler
• Color: White
• Form Factor: Designed for standard PC cases with support for multiple fan sizes.
• Software Control: L-Connect 3 – for full customization of RGB lighting and pump/fan speeds.

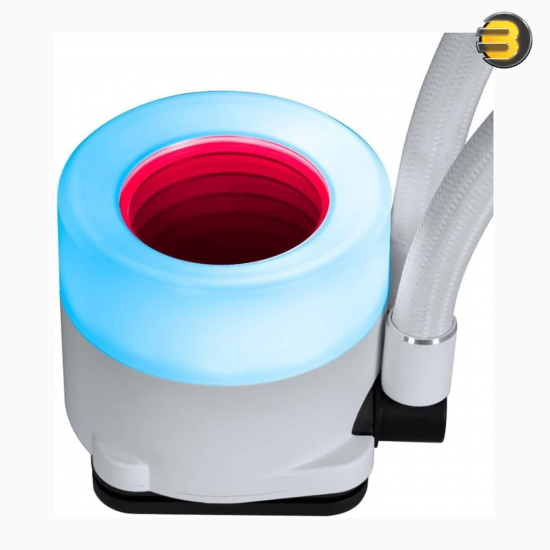

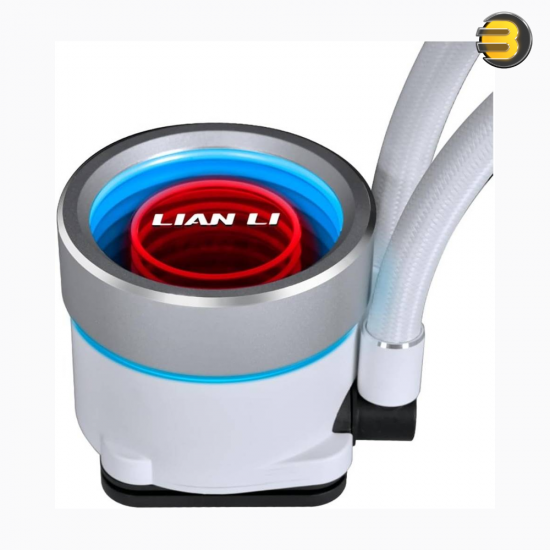

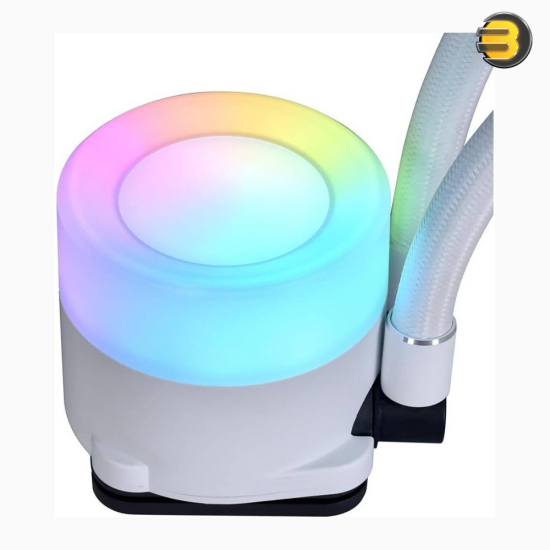

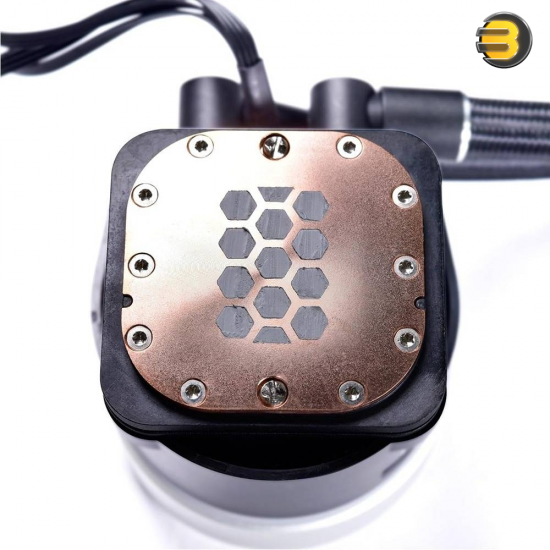

Pump Specifications

• Pump Size: 74 x 74 x 69 mm
• Pump Speed: Up to 3200 RPM
• Pump Noise Level: 16.59 dBA
• Included Pump Block Caps:
  • Dazzle Mode
  • Sink Hole
  • Duo-Infinity
• Bearing Type: Fluid Dynamic Bearing (FDB) for quiet operation and long lifespan

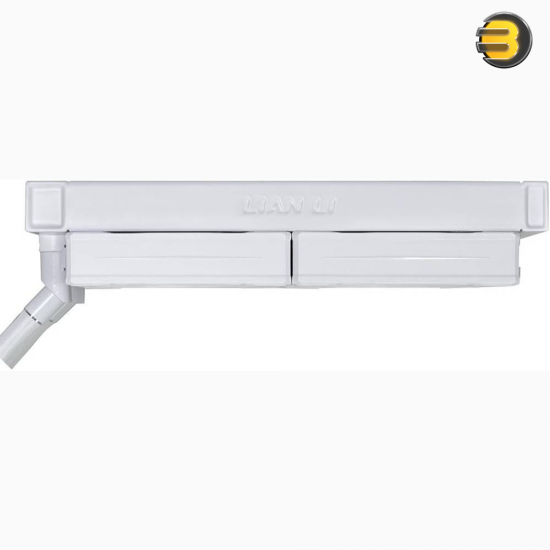

Radiator & Cooling Performance

• Radiator Size: 277.5 x 119.2 x 27 mm
• Radiator Fins Design: Single Wave Fin Structure for efficient heat dissipation

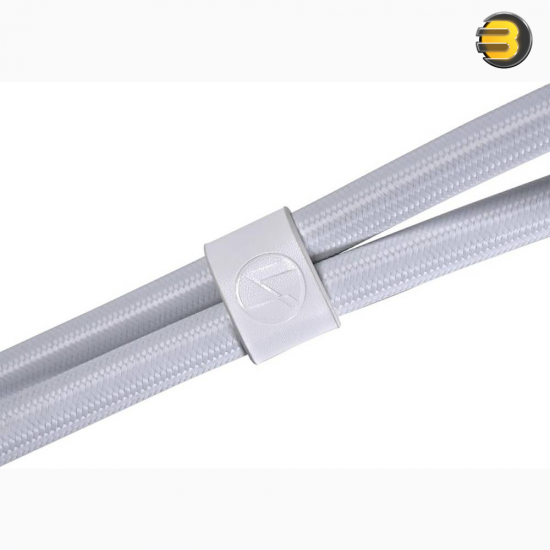

• Tube Length: 385 mm (standard length for radiator-to-pump connection)
• Cooling Loop: Closed-loop AIO system for easy installation and maintenance-free use

Fan Specifications

• Number of Fans: 2 x 120mm
• Fan Dimensions: 120 x 120 x 25 mm
• Fan Speed: 300–2450 RPM (PWM controlled)
• Static Pressure (Max): 3.26 mmH₂O
• Airflow (Max): 79.9 CFM
• Acoustic Noise (Fans): Up to 30 dB(A)
• Bearing Type: Fluid Dynamic Bearing (FDB)

Compatibility

Intel Sockets Supported:

• LGA 1700
• LGA 1200
• LGA 115x Series (1150, 1151, 1155, 1156)

AMD Sockets Supported:

• AM5
• AM4
