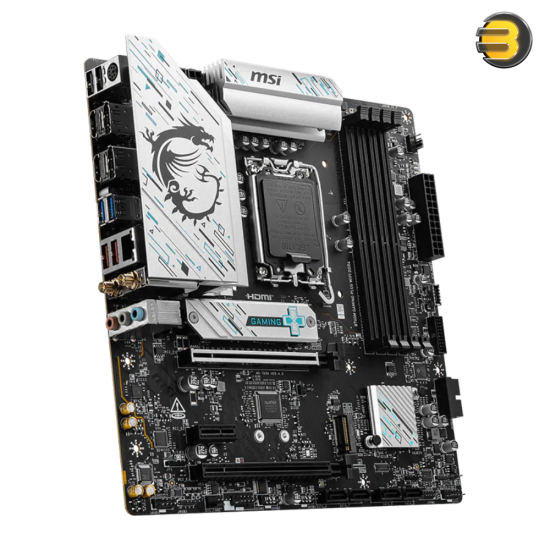

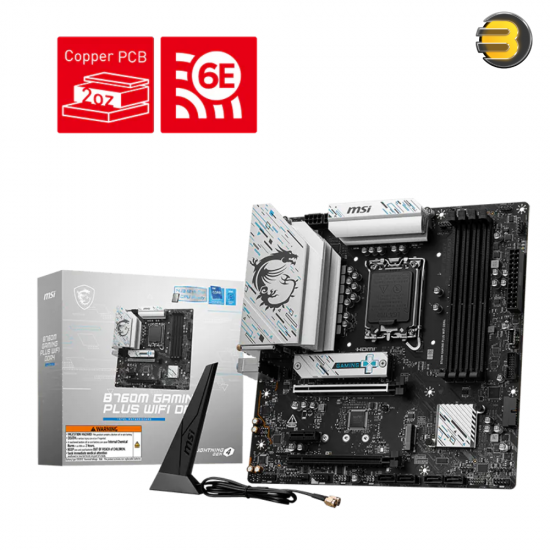

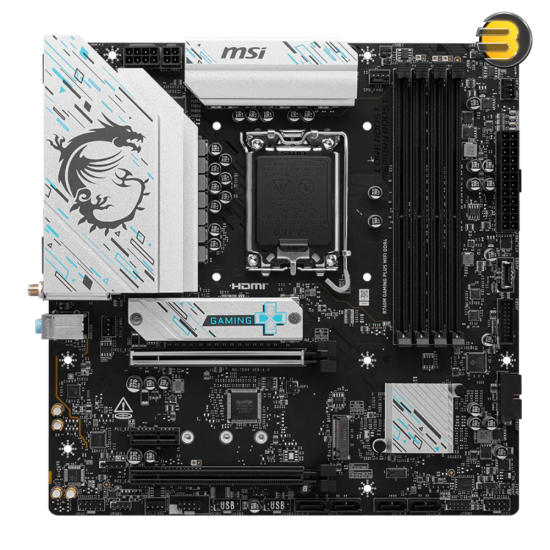

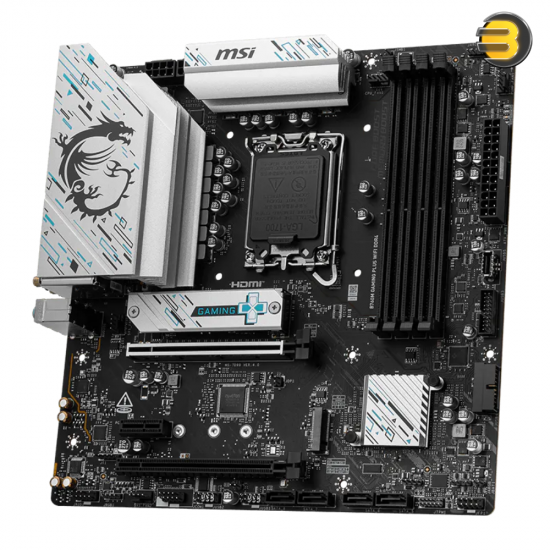

MSI B760M GAMING PLUS WIFI DDR4 LGA 1700 Motherboard

CPU Support

• Intel® Core™ 14th / 13th / 12th Gen Processors
• Intel® Pentium® Gold and Celeron® Processors

Memory

• Slots: 4 × DDR4 DIMM
• Max Capacity: 128 GB
• Architecture: Dual-Controller Dual-Channel mode
• Supported Types: Non-ECC, unbuffered DDR4
• JEDEC Speeds: 2133 / 2400 / 2666 / 2933 / 3200 MT/s
• Overclocked (OC) Speeds:
  • 1DPC 1R: Up to 5333+ MT/s
  • 1DPC 2R: Up to 4800+ MT/s
  • 2DPC 1R: Up to 4400+ MT/s
  • 2DPC 2R: Up to 4000+ MT/s
• Features: Intel® XMP 3.0 support

Onboard Graphics (via CPU)

• HDMI™: 2 × HDMI 2.1 (up to 4K @ 60Hz)
• DisplayPort: 2 × DP 1.4 (up to 4K @ 60Hz)

Expansion Slots

• PCI_E1 (from CPU): PCIe 4.0 x16
• PCI_E2 (from chipset): PCIe 3.0 x1
• PCI_E3 (from chipset): PCIe 4.0 x4

Storage

• M.2 Slots:
  • M.2_1 (CPU): PCIe 4.0 x4, supports 2280/2260/2242
  • M.2_2 (Chipset): PCIe 4.0 x4 or SATA mode, supports 2280/2260/2242
• SATA Ports: 4 × SATA 6Gb/s
• RAID Support: RAID 0, 1, 5, 10 (for SATA drives only)

Audio

• Codec: Realtek® ALC897
• Channels: 7.1-channel HD Audio

Networking

• Wired LAN: Realtek® RTL8125BG 2.5 Gigabit Ethernet
• Wireless:
  • Wi-Fi 6E (802.11ax, tri-band: 2.4/5/6 GHz, up to 2.4 Gbps)
  • Bluetooth: 5.3
  • Module pre-installed in M.2 (Key-E) slot

USB Ports

• USB 10Gbps (USB 3.2 Gen 2): 2 × Type-A
• USB 5Gbps (USB 3.2 Gen 1): 2 × Type-A
• USB 2.0: 2 ×

• USB 5Gbps Type-A: 4
• USB 5Gbps Type-C: 1
• USB 2.0: 4

Internal Connectors

• Power:
  • 1 × 24-pin ATX
  • 2 × 8-pin CPU (dual EPS for high-end CPUs)
• Cooling:
  • 1 × CPU fan
  • 1 × Pump fan
  • 2 × System fans
• Lighting:
  • 2 × Addressable RGB V2 (5V 3-pin)
  • 1 × Standard RGB (12V 4-pin)
• Other:
  • TPM 2.0 header
  • Front panel, audio, COM port, chassis intrusion

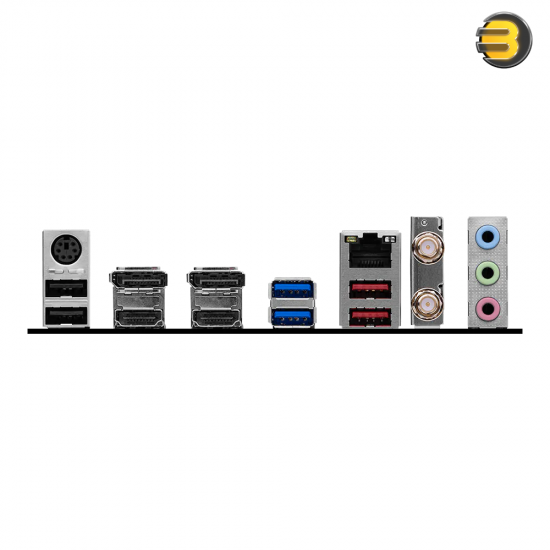

Back Panel I/O

• 2 × HDMI
• 2 × DisplayPort
• 2 × USB 3.2 Gen 2 (10Gbps) Type-A
• 2 × USB 3.2 Gen 1 (5Gbps) Type-A
• 2 × USB 2.0
• 2.5G LAN (RJ45)
• Wi-Fi / Bluetooth antennas
• 3.5mm audio jacks
• PS/2 (Keyboard/Mouse)

Diagnostics & Features

• EZ Debug LEDs: 4 (CPU, DRAM, VGA, BOOT)

Form Factor & OS Support

• Form Factor: micro-ATX (243.84 × 243.84 mm)
• Operating Systems:
  • Windows® 11 64-bit
  • Windows® 10 64-bit
