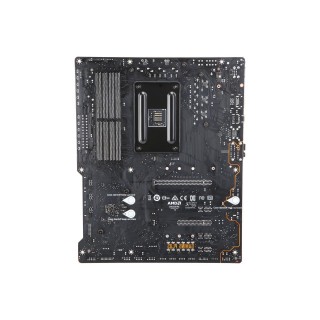

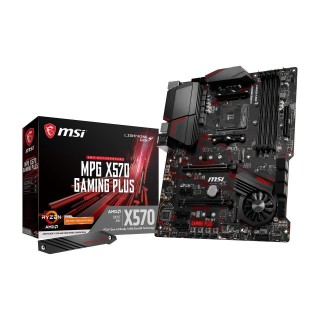

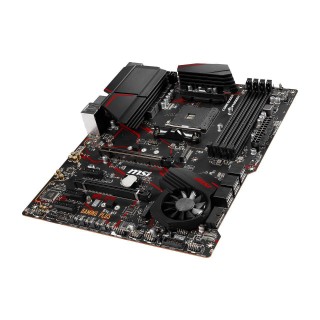

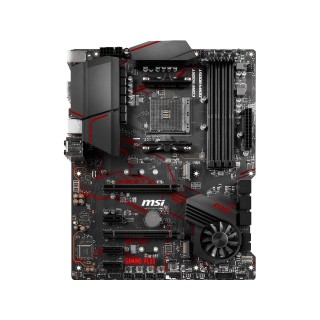

MSI MPG X570 GAMING PLUS Gaming AM4 AMD

Brand

MSI

Model

MPG X570 GAMING PLUS

Supported CPU

CPU Socket Type

AM4

CPU Type

Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for AM4 socket

Chipsets

Chipset

AMD X570

Memory

Number of Memory Slots

4×288pin

Memory Standard

3rd Gen AMD Ryzen Processors support DDR4 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC

Maximum Memory Supported

128GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 4.0 x16

1 x PCIe 4.0/3.0 x16 slot (PCIE_1)
- 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode
- 2nd Gen AMD Ryzen support PCIe 3.0 x16 mode
- Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode
1 x PCIe 4.0/3.0 x16 slot (PCIE_3, supports x4 mode)

PCI Express x1

3 x PCIe 3.0 x1 slots*
* PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.

Storage Devices

SATA 6Gb/s

6 x SATA 6Gb/s

M.2

2 x M.2 slots (Key M):
M2_1 slot (from AMD Processor)
- Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen)
- Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics)
- Supports 2242/2260/2280/22110 storage devices
M2_2 slot (from AMD X570 Chipset)
- Supports PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/2260/2280 storage devices

Onboard Video

Onboard Video Chipset

Supported only by CPU with integrated graphic:
1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz

Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors
Maximum shared memory of 2048MB

Onboard Audio

Audio Chipset

Realtek ALC1220

Audio Channels

7.1-Channel High Definition Audio
Supports S/PDIF output

Onboard LAN

LAN Chipset

Realtek RTL8111H

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

Back I/O Ports

1 x Flash BIOS Button
1 x PS/2 keyboard/mouse combo port
2 x USB 2.0 ports
1 x HDMI port
4 x USB 3.2 Gen1 ports
1 x LAN (RJ45) port
1 x USB 3.2 Gen2 Type A port
1 x USB 3.2 Gen2 Type C port
5 x OFC audio jacks
1 x Optical S/PDIF OUT connector

Internal I/O Connectors

Onboard USB

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)

Other Connectors

1 x 4-pin CPU fan connector
1 x 4-pin water-pump connector
4 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x TPM module connector
1 x Serial port connector
1 x Clear CMOS jumper
1 x Chassis Intrusion connector
2 x 4-pin RGB LED connectors
2 x 3-pin RAINBOW LED connectors
4 x EZ Debug LEDs

Physical Spec

Form Factor

ATX

LED Lighting

RGB

Dimensions (W x L)

12.0" x 9.6"

Power Pin

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector

Features

Features

Supports Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics Desktop Processors for AM4 socket

Supports DDR4 Memory

Lightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr accessory, StoreMI, AMD Turbo USB 3.2 GEN2

Frozr Heatsink Design: Designed with the unique fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers

Set Core Power Free: Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4-pin CPU power connector, Game Boost, DDR4 Boost

MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip

AUDIO BOOST 4: Reward your ears with studio grade sound quality for the most immersive gaming experience

Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with user friendly user interface
