- Stock: In Stock

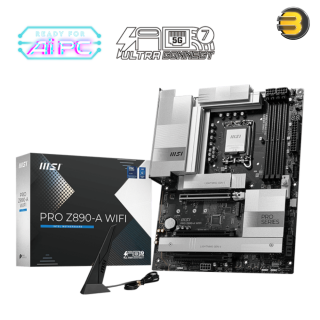

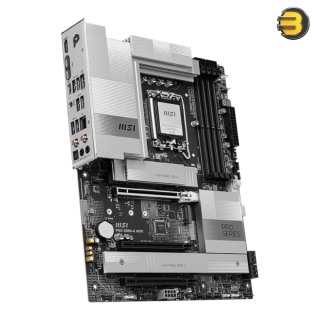

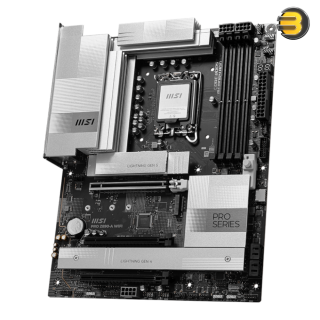

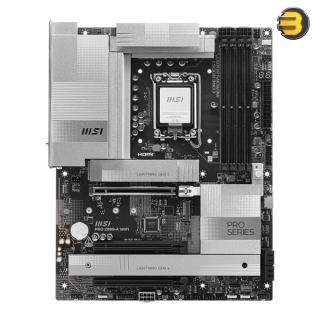

- Model: PRO Z890-A WIFI
Chipset
Chipset: INTEL Z890
CPU: Supports Intel® Core™ Ultra Processors (Series 2)
Socket: LGA 1851
Memory
Memory Slots: 4x DDR5 UDIMM
Maximum Memory Capacity: 256GB
Memory Support: 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max Overclocking Frequency:
1DPC 1R: Max speed up to 9200+ MT/s
1DPC 2R: Max speed up to 7200+ MT/s
2DPC 1R: Max speed up to 4800+ MT/s
2DPC 2R: Max speed up to 4800+ MT/s
Supported Technologies:
Intel® POR Speed and JEDEC Speed
Memory Overclocking and Intel® XMP 3.0
Dual-Controller Dual-Channel mode
Non-ECC, Un-buffered memory
CUDIMM
Onboard Graphics
HDMI™: 1x HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz*
Type-C DisplayPort: 2x Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
\* Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slots
PCI-E x16 Slots: 3x PCI-E x16
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio
Codec: Realtek® ALC1220P
Channels: 7.1-Channel High Definition Audio
Output: Supports S/PDIF output
Storage
M.2 Slots: 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
SATA Ports: 4x SATA 6G
\* Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
SATA: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
M.2 NVMe: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt
Ports: 2x Thunderbolt 4 (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A, 15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display
USB Ports
Rear:
4x USB 5Gbps Type-A
3x USB 10Gbps Type-A
1x USB 10Gbps Type-C
Front:
4x USB 2.0
2x USB 5Gbps Type-A
1x USB 20Gbps Type-C (supports USB PD 27W fast charging for JUSBC1)
LAN
LAN: Realtek® 8126 5Gbps LAN
Internal IO
Thunderbolt5 card connector: 1x (JTBT5, support RTD3)
Power Connectors:
1x ATX_PWR
2x CPU_PWR
1x PCIE_PWR 8pin
Cooling Connectors:
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
Other Internal Connectors:
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector (JRGB)
1x TPM pin header (Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type-A ports
1x USB 20Gbps Type-C ports
Wireless LAN & Bluetooth
Wi-Fi: Intel® Wi-Fi 7 (pre-installed in the M.2 (Key-E) slot)
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/b/g/n/ac/ax/be
Supports Bluetooth® 5.4**, MLO, 4KQAM
\* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. \** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED Feature
Debug LED: 4x EZ Debug LED, 1x EZ Digit Debug LED

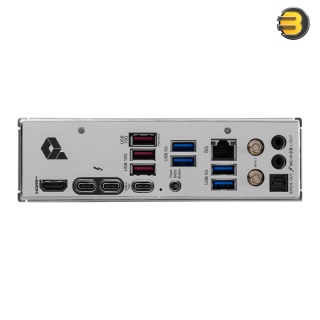

Back Panel Ports
USB 10Gbps Type-A
USB 5Gbps Type-A
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMI™
Thunderbolt™ 4 40Gbps (Type-C)
USB 10Gbps Type-C
Flash BIOS Button
USB 5Gbps Type-A
S/PDIF-OUT
Operating System
Support: Windows® 11 64-bit
Box Content
PCB Info
Form Factor: ATX
Dimensions: 243.84mm x 304.8mm
