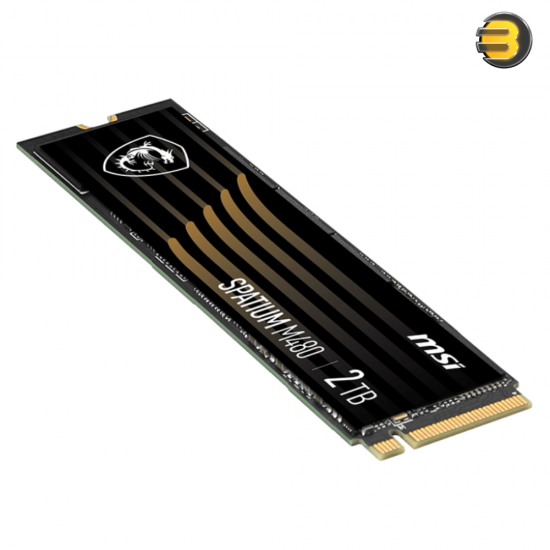

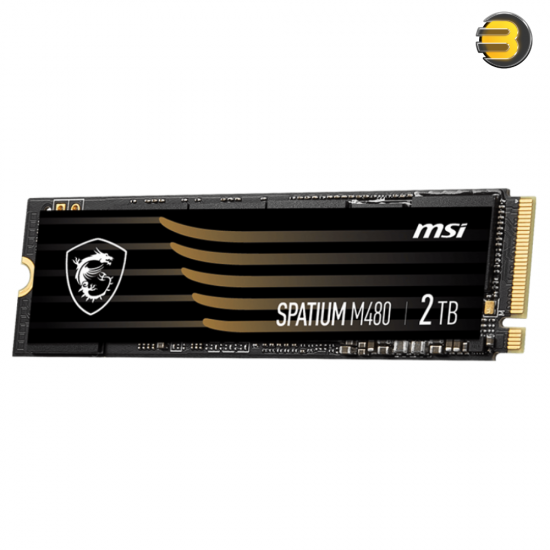

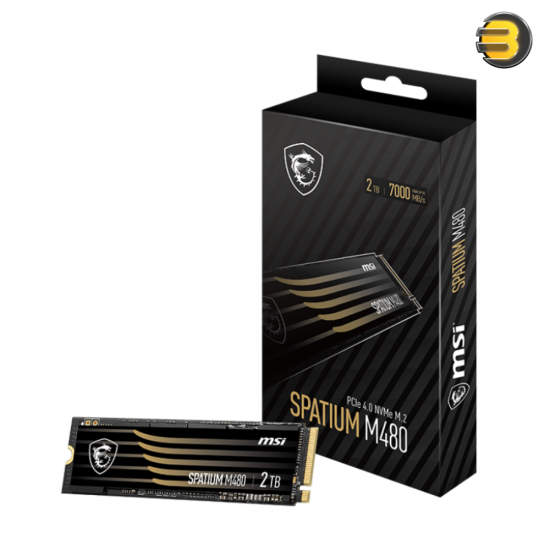

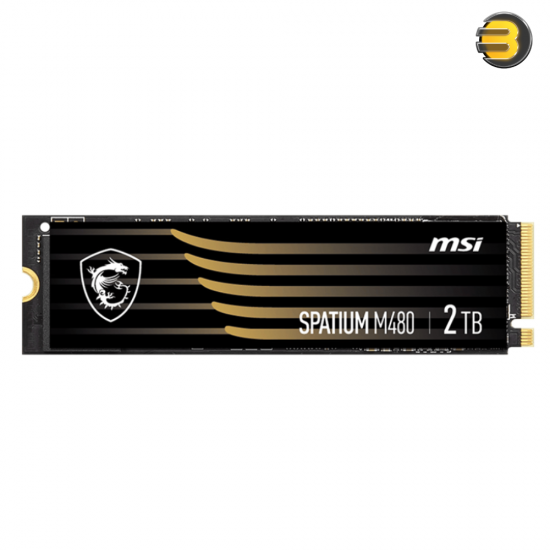

MSI SPATIUM M480 PRO 2TB PCIe 4.0 NVMe M.2 – NVMe 1.4, PCIe Gen4x4, Up to 7400MB/s Read, 6000MB/s Write, 3000 TBW

General Information

• Model Name: SPATIUM M480 PCIe 4.0 NVMe M.2
• Capacity: 2TB

Controller and Memory

• Controller: PHISON E18
• Flash Memory: 3D NAND
• DRAM Cache: 2GB DDR4

Form Factor and Interface

• Form Factor: M.2 2280
• Interface: PCIe Gen4 x4, NVMe 1.4
• Compatibility: PCIe Gen4 / Gen3 / Gen2 / Gen1

Dimensions

• Dimensions (L x W x H):
  • 80.00mm (L) x 22.00mm (W) x 2.15mm (H)

Performance

• Sequential Read (up to): 7000 MB/s
• Sequential Write (up to): 6800 MB/s
• Random Read 4KB (up to): 650,000 IOPS
• Random Write 4KB (up to): 700,000 IOPS

Power Consumption

• Maximum Operating Power: 8.2W
• Idle Power (PS3): 22mW
• Low Power (L1.2): 3mW

Environmental Specifications

• Operating Temperatures: 0°C – 70°C
• Storage Temperatures: -40°C – 85°C

Durability and Reliability

• Terabytes Written (TBW): 1400 TB
• Mean Time Between Failures (MTBF): Up to 1,600,000 Hours

Advanced Features

• TRIM: Performance Optimization (OS support required)
• SMART: Self-Monitoring, Analysis, and Reporting Technology
• LDPC ECC Algorithm: Low-Density Parity Check for error correction
• End-to-End Data Path Protection: Ensures data integrity
• APST: Autonomous Power State Transition for power efficiency
• AES256/Pyrite Encryption: Data security and encryption
