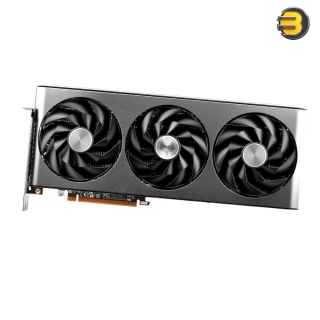

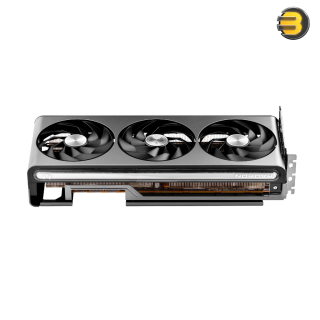

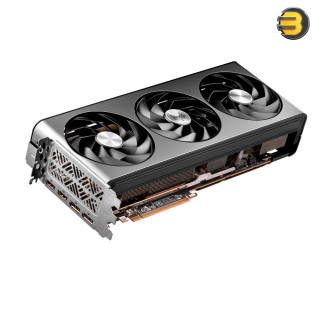

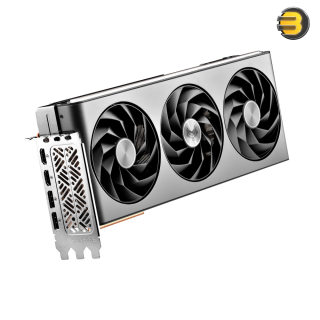

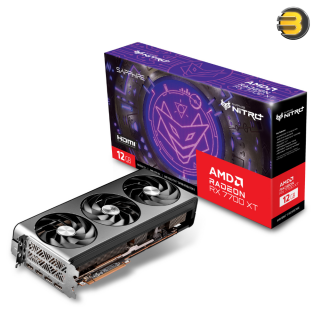

SAPPHIRE NITRO+ AMD Radeon RX 7700 XT Gaming Graphics Card, 12GB DDR6 192 bit Memory, 2599 MHz Boost Clock, 18 Gbps Memory Clock, AMD RDNA 3, PCI E 4.0, 2x HDMI 2x DP | 11335-02-20G

General Specifications

• Architecture: AMD RDNA™ 3

• Process Technology: 5nm

• Engine Clock:

  • Boost Clock: Up to 2599 MHz

  • Game Clock: Up to 2276 MHz

• Stream Processors: 3456

• Compute Units: 54 CU (with RT+AI Accelerators)

• Infinity Cache: 48MB

• Ray Accelerators: 54

• Memory Size/Bus: 12GB GDDR6 on 192-bit bus

• Memory Clock: 18 Gbps Effective

• Displays: Maximum 4 Displays

• Resolution:

  • HDMI™: 7680×4320

  • DisplayPort 2.1: 7680×4320

• Interface: PCI-Express 4.0 x16

Outputs

• 2x HDMI

• 2x DisplayPort

BIOS Support

• Dual UEFI

Game Index

• 1440P

Sapphire Features

• Dual BIOS

• TriXX Software Switch

• Premium Digital Power Design

• Ultra High Performance Conductive Polymer Aluminum Capacitors

• Fuse Protection

• Tri-X Cooling Technology

• High TG Copper PCB

• Optimized Composite Heatpipe

• Intelligent Fan Control

• Precision Fan Control

• Metal Backplate with ARGB

• ARGB Light Bar

• Two-Ball Bearing Fans

• Angular Velocity Fan Blade

• Assistive System Fan Control

• Cold Rolled Steel Frame

• Dedicated VRM Cooling

• Wave Fin Design

• V Shape Fin Design for GPU Cooling

• TriXX Supported

  • Fan Check

  • Fan Quick Connect

  • TriXX Boost

• NITRO Glow

• External RGB LED MB Synchronization

Accessories Bundled

• Graphics Card Supporter

• ARGB Extension Cable

AMD Features

• AMD RDNA™ 3 Architecture

• 54 AMD RDNA™ 3 Compute Units

• 48MB AMD Infinity Cache™ Technology

• DisplayPort™ 2.1 Support

• AMD Radiance Display™ Engine

• 12GB GDDR6 on 192-Bit Memory Bus

• PCI® Express 4.0 ready

• AMD FidelityFX™ Super Resolution technology*

• Microsoft® DirectX® 12 Ultimate Support

• Microsoft® DirectStorage Support

• Vulkan® Optimized

• AMD Smart Technologies

• AMD Software: Adrenalin Edition™

• AMD Noise Suppression

• AMD Privacy View

• AMD Radeon™ Super Resolution technology

• AMD Link

• AMD FreeSync™ Technology

Cooler Type

• 3 Fans

Form Factor

• 3 slot, ATX

• Dimensions: 320(L) x 134.85(W) x 61.57(H) mm

Power Consumption

• 252W Total Board Power

OS Compatibility

• Linux®, Windows® 10, and Windows® 11 (64-bit)

System Requirements

• Minimum 700 Watt Power Supply

• 2 x 8-pin Power Connectors

• PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard

• Minimum 8GB of system memory (16GB recommended)
