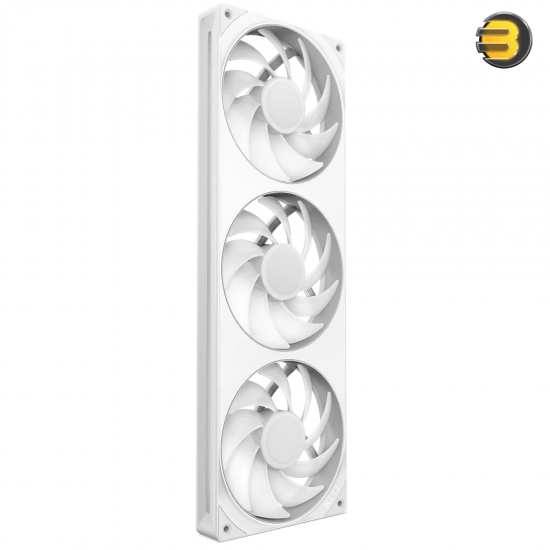

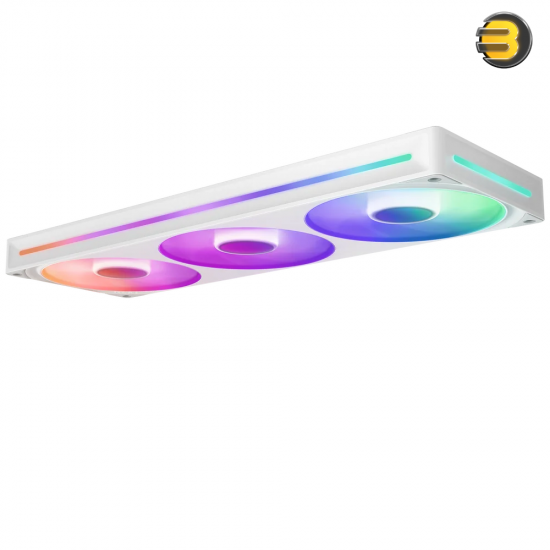

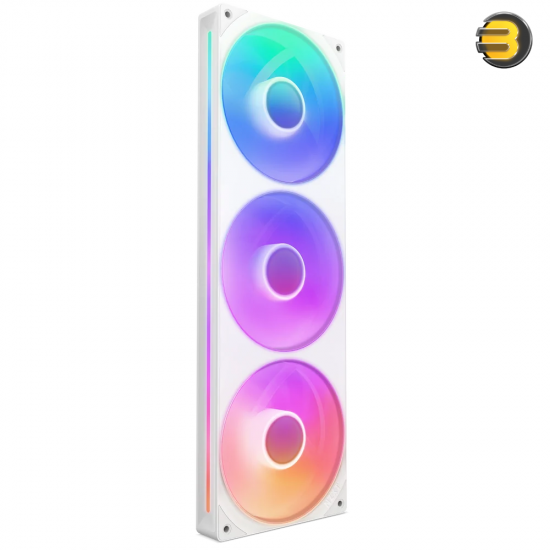

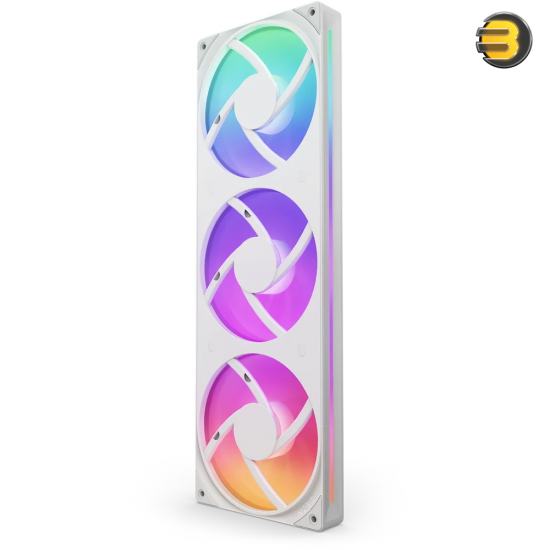

NZXT F360 RGB Core 360mm Single-Frame RGB Fan Unit White – PWM Control, Fluid Dynamic Bearing (FDB), 5V ARGB, 75.12 CFM Airflow, 3.30 mmH₂O Static Pressure, 24 Hub-Mounted Addressable LEDs, Single-Cable Setup & NZXT CAM Support
- Stock: In Stock
- Model: F360 RGB Core (360mm Single-Frame RGB Fan Unit)
- UPC: 810074844536
- MPN: RF-U36HF-W1
views 24
2,999 EGP
3,850 EGP
Shiping Information
Nationwide shipping across Egypt. Fees confirmed by phone before shipping.
Description
Core Identifiers & Build
- Brand / Series: NZXT F-Series Single-Frame RGB
- Model Name: F360 RGB Core (360mm Single-Frame RGB Fan Unit)
- Model Number: RF-U36HF-W1 (White)
- UPC / EAN Barcodes: 810074844536 / 5056547204444
- Color / Finish: Matte White Frame with Semi-Translucent White Blades
- Frame Type: Integrated single-frame housing for 3 × 120 mm fans (Eliminates the gaps between standard fans and drastically reduces cable clutter with a streamlined single-cable setup)
- Materials: High-quality Plastic frame, Rubber damping pads, PCB
- Damping: Anti-vibration rubber corners on all mounting points to reduce chassis resonance and noise
Dimensions & Weight
- Dimensions (L × W × H): 360 × 120 × 26 mm (Standard 360mm footprint, 26mm thickness for optimal airflow and static pressure balance)
- Weight: 455 g
Performance Specifications (Per Fan)
- Fan Speed: 500 – 2,400 ± 250 RPM (PWM controlled)
- Airflow: 75.12 CFM (Excellent for case intake/exhaust and pushing through dust filters)
- Static Pressure: 3.30 mmH₂O (High static pressure makes it exceptionally well-suited for mounting directly to AIO liquid cooling radiators)
- Noise Level: 30.0 dBA (at max speed)
- Bearing Type: Fluid Dynamic Bearing (FDB) (Ensures whisper-quiet operation and prevents lubricant leakage over time)
- Lifespan: 60,000 Hours (Approx. 6.8 years of continuous 24/7 operation)
Electrical & Connectors
- Rated Voltage: 12V DC (Fan Motor) / 5V DC (RGB Lighting)
- Rated Current: 0.79 A (Fan) / 0.81 A (RGB)
- Total Input Power: 13.53 W
- Main Unit Connector: Single 8-pin combination connector (Routes both PWM and RGB signals through one unified cable for an incredibly clean build)
- Cable Length: 1 × 600 mm main cable
- Included Breakout Cable: 8-pin to 4-pin PWM Fan Connector + 5V 3-pin ARGB / 4-pin NZXT RGB header (Allows seamless integration with standard motherboards or NZXT proprietary controllers)
Lighting & Software Features

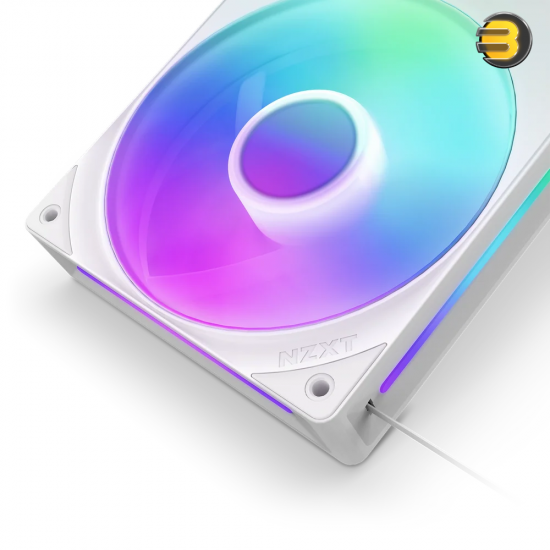

- LED Type: Hub-mounted Addressable RGB LEDs (Projects light outward through the semi-translucent white blades for a remarkably smooth, diffused, and bright glow without harsh outer-ring hotspots)
- LED Quantity: 24 total LEDs (8 individually addressable LEDs per fan section)
- Control Integration: Fully compatible with NZXT CAM software (via an NZXT RGB controller) or standard motherboard 5V 3-pin ARGB headers for universal ecosystem sync (Aura Sync, Mystic Light, RGB Fusion, etc.)
