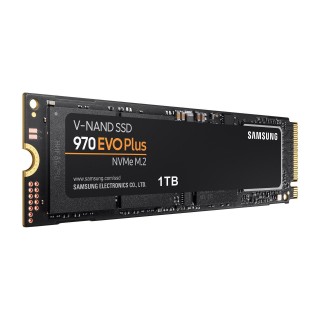

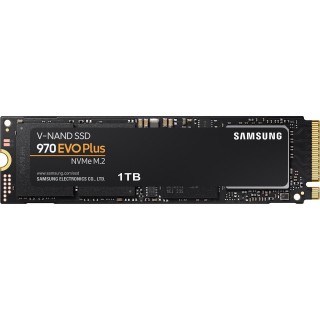

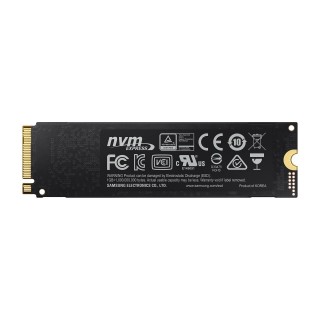

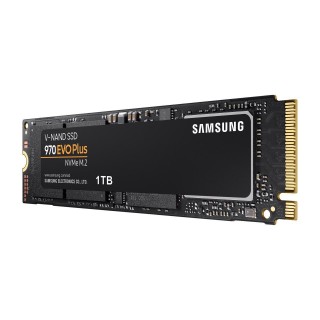

SAMSUNG 970 EVO PLUS M.2 2280 1TB PCIe Gen 3.0 x4, NVMe 1.3 V-NAND 3-bit MLC Internal Solid State Drive (SSD) MZ-V7S1T0B/AM

Brand

SAMSUNG

Series

970 EVO PLUS

Model

MZ-V7S1T0B/AM

Device Type

Internal Solid State Drive (SSD)

Used For

Consumer

Details

Form Factor

M.2 2280

Capacity

1TB

Memory Components

V-NAND 3-bit MLC

Interface

PCIe Gen 3.0 x4, NVMe 1.3

Controller

Samsung Phoenix

Cache

Samsung 1GB Low Power DDR4 SDRAM

Performance

Max Sequential Read

Up to 3500 MBps

Max Sequential Write

Up to 3300 MBps

4KB Random Read

QD32: Up to 600,000 IOPS
QD1: Up to 19,000 IOPS

4KB Random Write

QD32: Up to 550,000 IOPS
QD1: Up to 60,000 IOPS

MTBF

1,500,000 hours

Features

Features

Reliability: 600 TBW

Always Evolving SSD
The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for unbeatable computing.

Level up Performance
The 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53% faster than the 970 EVO. Powered by the latest V-NAND technology - which brings greater NAND performance and higher power efficiency - along with optimized firmware, a proven Phoenix controller, and Intelligent TurboWrite boost speed.

Design Flexibility
The next advancement in NVMe SSDs. The 970 EVO Plus fits up to 1TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung's innovative technology empowers you with the capacity to do more and accomplish more.

Exceptional Endurance
The new standard in sustainable performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsung's reputation for quality.

Unparalleled Reliability
Achieve a new level of drive confidence. Samsung's advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops.

Samsung Magician
Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.

Environmental

Power Consumption (Idle)

Max. 30 mW

Power Consumption (Active)

Average: 6W
Maximum: 9W (Burst mode)

Operating Temperature

0°C ~ +70°C

Max Shock Resistance

1,500G & 0.5 ms (Half sine)

Dimensions & Weight

Height

2.38mm

Width

22.15mm

Depth

80.15mm

Weight

8.00g
