New

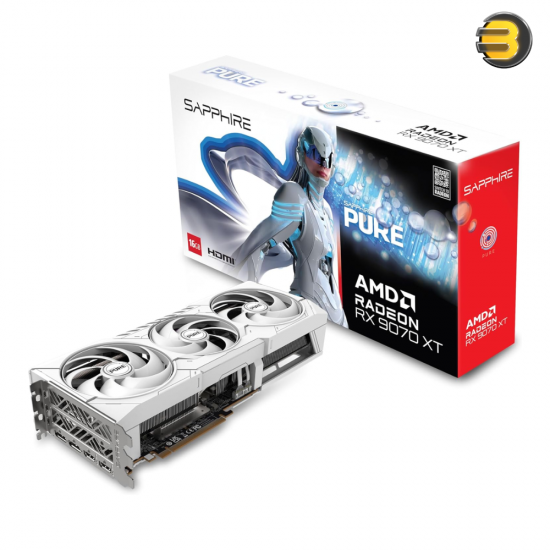

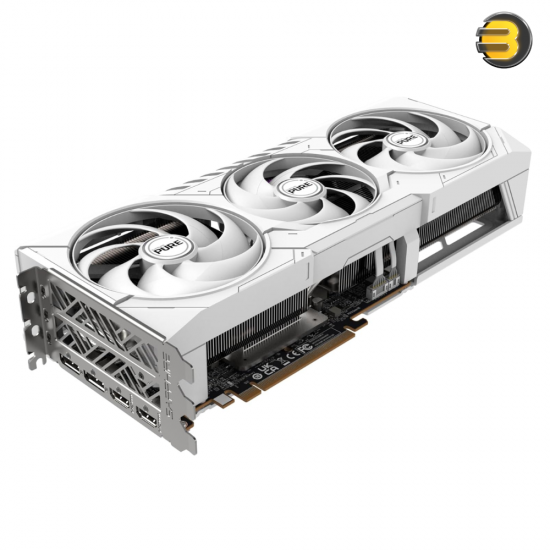

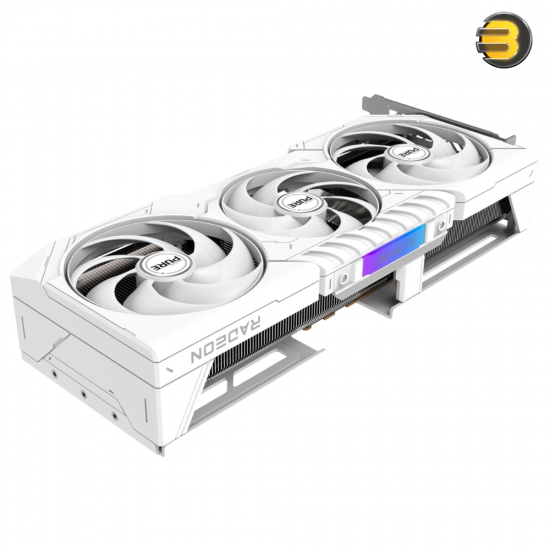

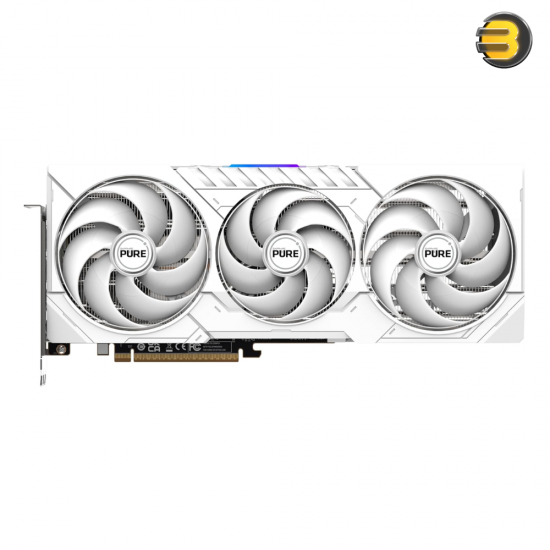

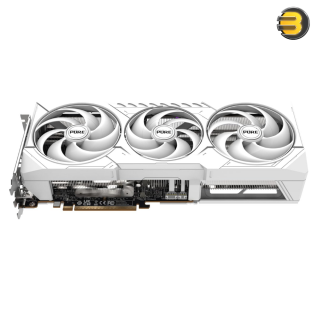

SAPPHIRE PURE AMD Radeon™ RX 9070 XT GPU – 16GB GDDR6, 20 Gbps, Boost Clock Up to 3010 MHz, 4096 Stream Processors, AMD RDNA™ 4 Architecture, and 64 Ray Accelerators for Unmatched Gaming Performance
47,500 EGP
Ex Tax: 47,500 EGP
- Stock: In Stock
- Model: PURE AMD Radeon™ RX 9070 XT
- MPN: 11348-02-20G
General Specifications
- GPU Model: AMD Radeon™ RX 9070 XT
- Architecture: AMD RDNA™ 4 Architecture
Clock Speeds
- Boost Clock: Up to 3010 MHz
- Maximum frequency achievable under optimal conditions. Actual performance may vary based on thermal conditions and workload.
- Game Clock: Up to 2460 MHz
- Expected clock speed during typical gaming workloads at standard TGP (Total Graphics Power).
Compute Units & Stream Processors
- Stream Processors: 4096
- Compute Units (CUs): 64 CUs
- Includes 3rd Gen Ray Tracing Accelerators and 2nd Gen AI Accelerators
Memory
- Memory Size/Bus: 16GB / 256-bit GDDR6
- Memory Clock: 20 Gbps (Effective)
- Infinity Cache: 64MB
Ray Tracing & AI Features
- Ray Accelerators: 64
- AI Accelerators: 128
Display Outputs
- Maximum Displays Supported: 4
- Resolution Support:
- HDMI®: 7680×4320 (8K)
- DisplayPort™ 2.1a: 7680×4320 (8K)
- Ports:
- 2x HDMI®
- 2x DisplayPort™ 2.1a
Interface
- PCI Express: PCI-Express 5.0 x16
BIOS Support
- BIOS: UEFI
AMD Technologies
- AMD RDNA™ 4 Architecture: Delivers high performance and efficiency.
- AMD HYPR-RX with AFMF 2: Reduces input lag and improves responsiveness.
- AMD FidelityFX™ Super Resolution 4 (FSR 4): Includes AI Upscaling for improved image quality and performance.
- AMD Radiance Display™ Engine: Supports up to 8K resolution.
- AMD Fluid Motion Frames 2 Technology: Enhances frame interpolation for smoother gameplay.
- AMD Radeon™ Anti-Lag 2 Technology: Reduces input latency.
- AV1 Encode/Decode: Efficient video encoding and decoding.
- AMD FidelityFX™ Technologies: Includes advanced graphics features like Variable Rate Shading (VRS), Contrast Adaptive Sharpening (CAS), and more.
- Microsoft® DirectX® 12 Ultimate: Supports ray tracing, mesh shading, and other modern graphics features.
- AMD Noise Suppression: Reduces background noise in voice communications.
- AMD Freesync™ Technology: Ensures smooth, tear-free gaming experiences.
- 16 GB of GDDR6 on 256-bit Memory Bus: Delivers high bandwidth for demanding games and applications.
Cooling Solution
- Cooler Type: Tri-X Cooling Technology
- Key Features:
- AeroCurve Fan Blade
- Free Flow Design
- Integrated Cooling Module
- High TG Copper PCB
- Optimized Composite Heatpipes
- Two-Ball Bearing Fans

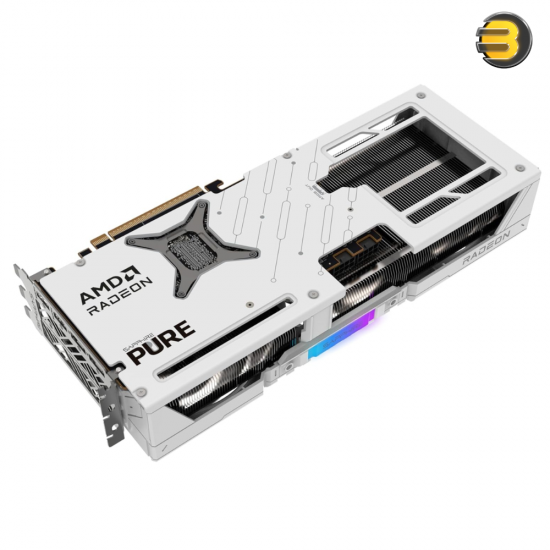

- Metal Backplate with ARGB SAPPHIRE Logo
Performance Features
- Gaming Performance: Optimized for 4K gaming with support for modern APIs and technologies.
- Precision Fan Control & Intelligent Fan Control: Dynamically adjusts fan speeds for optimal cooling and noise levels.
- Fuse Protection: Protects the GPU from electrical faults.
- 14-Phase Digital Power Design: Ensures stable power delivery for sustained performance.
Sapphire Exclusive Features
- Honeywell PTM7950 Thermal Interface Material (TIM): Improves thermal conductivity for better cooling.
- TriXX Boost: Allows users to optimize performance and efficiency with predefined quicksets.
- L-Shape Support Bracket: Provides additional structural support for heavy GPUs.
- ARGB SAPPHIRE Logo: Customizable RGB lighting with external motherboard synchronization.
Form Factor
- Type: ATX
- Dimensions:
- Length: 320 mm
- Width: 120.25 mm
- Height: 61.6 mm
- Slot Occupancy: 3 slots
Power Consumption
- Typical Board Power: 317W
- Power Connector:
- 2 x 8-pin Power Connectors
- Recommended PSU: Minimum 750W
System Requirements
- Operating System:
- Linux®, Windows® 10, and Windows® 11 (64-bit required)
- Minimum System Memory: 8GB (16GB recommended)
- PCI Express Slot: Requires one X16 lane graphics slot on the motherboard.
