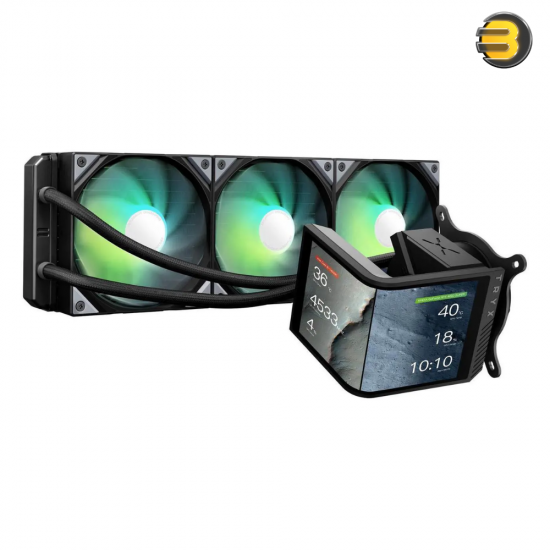

TRYX Panorama SE 360 ARGB AIO Liquid Cooler with AMOLED Display

Cooling Block

• Dimensions: 125 × 94 × 92 mm
• Material: PC + ABS

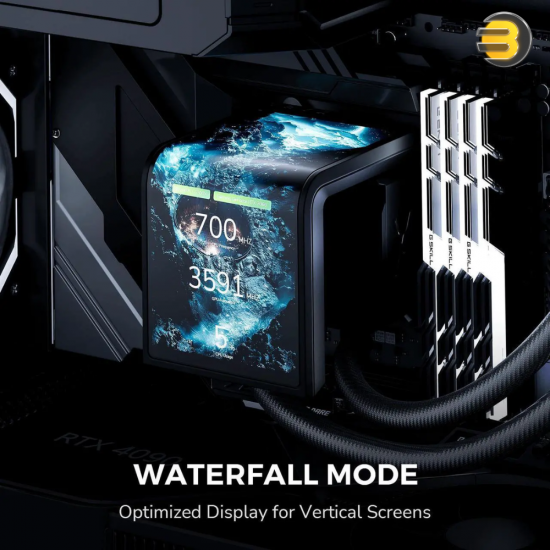

• Display: Integrated AMOLED screen (for real-time stats, custom visuals, or system monitoring)

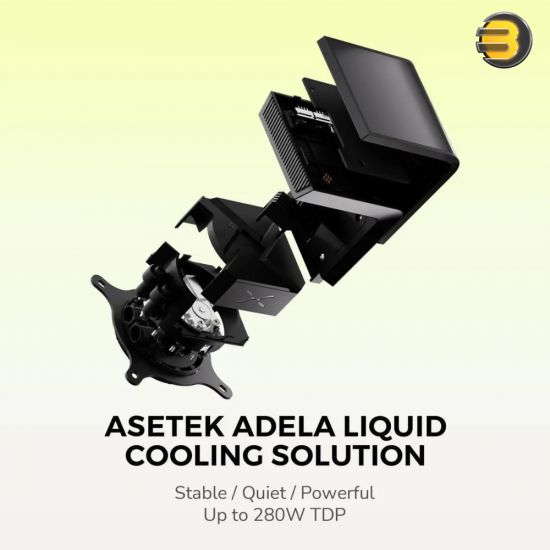

Pump

• Speed: 800 – 3,600 RPM (±300 RPM)
• Bearing Type: Ceramic
• Noise Level: 25.3 dBA
• Dimensions: Same as block (125 × 94 × 92 mm)

Radiator

• Size: 360 mm (supports 3 × 120mm fans)
• Material: Aluminum
• TDP Support: Up to 280W

Fans (Pre-installed)

• Quantity: 3 × 120mm
• Dimensions: 120 × 25 mm
• Bearing Type: Fluid Dynamic Bearing (FDB)
• Speed: 500 – 1,850 RPM (±10%)
• Airflow: 66.09 CFM (per fan)
• Static Pressure: 1.8 mmAq
• Noise Level: 27.86 dBA (max per fan)
• Connector: 7-pin (ARGB + PWM control)
• Lighting: Addressable RGB (ARGB)

Tubing

• Length: 450 mm
• Material: EPDM (ethylene propylene diene monomer – durable, flexible, and resistant to heat/aging)

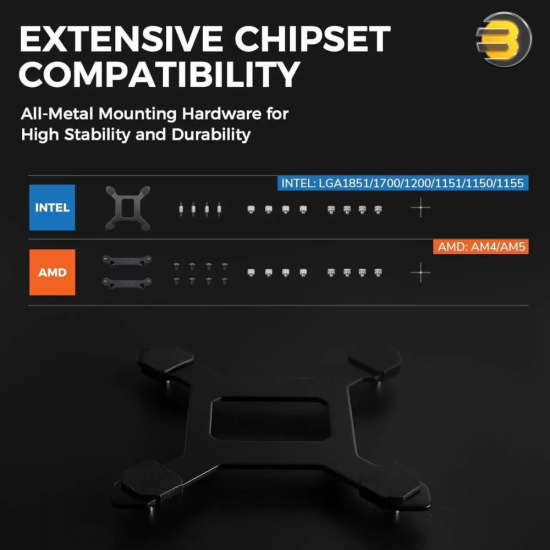

Compatibility

• Intel Sockets: LGA 1700, 1200, 115x (likely included)
• AMD Sockets: AM5, AM4

Package Contents

• TRYX PANORAMA SE 360 ARGB AIO cooler
• Intel & AMD mounting brackets
• Thermal paste
• User manual
• Installation accessories
