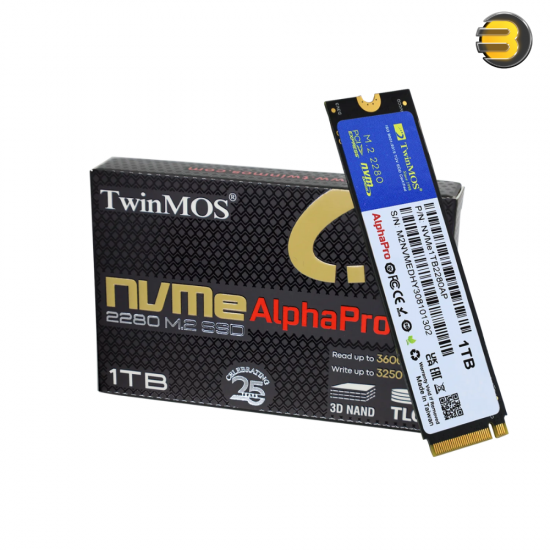

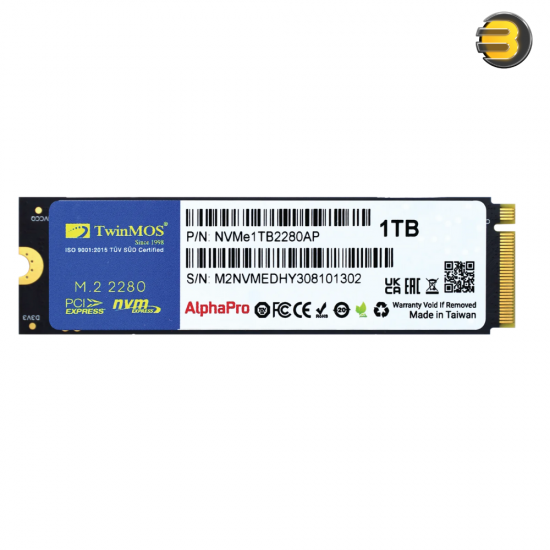

TwinMOS AlphaPro 1TB NVMe M.2 2280 PCIe Gen3 x4 SSD — Up to 3500MB/s Read & 3080MB/s Write, 3D TLC NAND, Low Power, High Endurance, 1500G Shock Resistance, MTBF 1.5 Million Hours

General Information

• Designed For: Desktops and laptops requiring fast storage with PCIe Gen3 NVMe performance
• Use Case: Ideal for gaming, content creation, boot drives, and productivity systems
• Interface: PCIe Gen3 x4 / NVMe 1.3 or 1.4 – compatible with most modern motherboards
• Flash Memory Type: 3D TLC NAND – offers enhanced endurance and reliability
• Controller: SMI controller (varies by batch) – optimized for stable NVMe performance
• DRAM Cache: No onboard cache – uses host memory buffer (HMB) in system RAM if supported

Performance & Speed

• Sequential Read Speed: Up to 2455–3600 MB/s (varies by model and firmware)
• Sequential Write Speed: Up to 1832–3250 MB/s
• Random Read/Write IOPS: Not specified (standard for DRAM-less NVMe SSDs)
• Latency Optimization: Supports TRIM , NCQ , and S.M.A.R.T. for improved data management and drive health monitoring
• Power Efficiency: Low power draw makes it suitable for notebooks and compact desktop builds

Reliability & Endurance

• MTBF (Mean Time Between Failures): Over 1,000,000 hours , up to 1,500,000 hours depending on model
• Endurance (TBW): Approximately 1000 TBW – ideal for long-term use in both consumer and professional environments
• Error Correction & Stability:
  • Built-in LDPC (Low-Density Parity-Check) error correction
  • Supports wear leveling and bad block management
• Shock Resistance: 1500G / 0.5ms – enhances durability in mobile applications

Physical Design & Compatibility

• Dimensions: 80 x 22 x 2.2 mm – ultra-slim M.2 form factor
• Weight: Around 7g – lightweight and portable
• Thermal Management: Designed for use with passive heatsinks or cooling armor
• Operating Temperature Range: 0°C to 70°C – suitable for standard PC environments
• Supported Systems: Compatible with Windows, macOS, and Linux platforms
• RoHS Compliant: Environmentally friendly manufacturing standards

Key Features Summary

• High-Speed NVMe Performance: Offers genuine PCIe Gen3 x4 speeds for fast booting and file access
• Space-Saving Design: Compact M.2 2280 size fits most ultrabooks, mini PCs, and ATX motherboards
• 3D TLC NAND Flash: Ensures long life and stability under frequent read/write cycles
• Efficient Power Use: Low thermal output and energy consumption make it ideal for thin systems
• Advanced Controller Technology: Uses SMI controllers known for stability and cost-effective performance
• Data Integrity Tools: Includes support for S.M.A.R.T. , TRIM command , and NCQ
• Wide OS Support: Works seamlessly across Windows , macOS , and major Linux distributions
